What is 5-Axis CNC Machining? Definition, Benefits, Working Principles

Computer Numerical Control, or CNC machining, is at the forefront of modern manufacturing technology. A significant advancement in this field is 5-axis CNC machining, which brings in an unparalleled level of precision and complexity. This method allows CNC machines to operate on five different axes simultaneously, opening doors to a myriad of possibilities.

5-axis CNC machining differs significantly from its 3-axis and 4-axis counterparts. The inclusion of two additional rotary axes enables more intricate maneuvers, making it possible to create complex shapes and angles. This revolutionary technology has vast applications, from aerospace to medical CNC machining, transforming the way industries function.

What is 5-Axis CNC Machining?

In 5-axis CNC machining, the term “5-axis” refers to the number of directions in which the cutting tool or workpiece can move. The 5-axis on a CNC machine include three primary linear axes (X, Y, Z) and two rotary axes, often referred to as 5th axis or cnc a axis.


  • X, Y, Z Axes: These represent the traditional three dimensions of space, allowing movement left-right, front-back, and up-down.
  • A and B or C Axes: These are the rotary axes, controlling the tilt and rotation of the tool or workpiece.


How it Differs from 3-Axis and 4-Axis Machining

  • 3-Axis CNC Machining: In 3-axis CNC, the tool moves along the X, Y, and Z axes only. It’s suitable for simpler projects but lacks the flexibility to create more complex shapes.
  • 4-Axis CNC Machining: The 4-axis version adds one rotary movement, enabling more varied designs. This addition allows the machining of parts from different angles without repositioning the workpiece.
  • 5-Axis CNC Machining: The 5-axis CNC machine takes it a step further, providing even more control over the tool’s movement. With both tilting and rotating capabilities, 5-axis CNC machining offers the highest level of precision and complexity.

Working Principles of 5-Axis CNC Machining


The Role of the Controller

The controller in a 5-axis CNC machine acts as the brain, translating the Computer-Aided Design (CAD) or Computer-Aided Manufacturing (CAM) files into electrical signals that drive the motors. The sophistication of 5-axis CNC machine controllers is essential for managing the complex simultaneous movements along the 5 axes.


  • Interpolation: This is the process by which the controller calculates the toolpath, allowing for simultaneous movement along the axes, providing a smooth and continuous motion.
  • Tool Orientation: In 5-axis CNC machining, the controller manages the tool’s angle and orientation, ensuring optimal cutting and reducing tool wear.


Movement along the 5 Axes

The movement along the 5 axes in 5-axis CNC machining is a coordinated dance of precision and control. This includes:


  • Linear Movements: The X, Y, Z movements (or cnc axis) enable cutting along straight lines, forming the foundational basis of machining.
  • Rotary Movements: The A and B or C axes, known as 5th axis in the CNC world, allow the tool or workpiece to rotate and tilt, enabling complex geometries.


Interested in the complex workings of CNC machines? Learn more about CNC machine workshop – a complete guide.


Toolpath Planning

The planning of the toolpath in 5-axis CNC machining is critical to achieving the desired outcome.


  • 5th Axis Milling: This involves precise control over the tool’s orientation, allowing for intricate patterns and complex surfaces.
  • Collision Detection: Advanced software in 5-axis CNC machines can detect and prevent collisions between the tool and the workpiece, enhancing efficiency and safety.
  • Multi-Axis Milling Machine: The term multi axis milling machine often refers to machines that can operate in 3, 4, or 5 axes, offering a range of complexity and precision.

Difference Between 5-Axis and 3+2 Axis Machining

Definition and Working Principles


  • 5-Axis CNC Machining: This process allows for continuous movement across five different axes simultaneously. The 5 axes on a CNC machine include three linear axes (X, Y, Z) and two rotary axes (A and B or C). These axes work together to enable complex machining with high precision.
  • 3+2 Axis Machining: This setup utilizes the same 5 axes, but instead of continuous movement, the two rotary axes are positioned at a specific angle and then locked. The machining is then performed in the three linear axes, making it a less complex process.


Efficiency and Precision


  • 5-Axis Machining: Offers higher efficiency and precision, especially for complex geometries. Since all 5 axes work simultaneously, it allows for intricate designs and shorter production times.
  • 3+2 Axis Machining: While offering some of the benefits of 5-axis machining, it is not as efficient for highly complex parts since the rotary axes do not move simultaneously with the linear ones.


Application Suitability


  • 5-Axis: Suitable for advanced industries like aerospace, medical, and automotive, where high complexity and precision are required.
  • 3+2 Axis: Ideal for parts that need specific angular cuts but don’t require the continuous movement of all five axes. It may be more cost-effective for less intricate parts.

Benefits of 5-Axis CNC Machining

The utilization of 5-Axis CNC machining has transformed the manufacturing industry, enabling enhanced precision, efficiency, and flexibility. Below are the key benefits that this revolutionary technology offers:


1. Increased Precision


  • Accurate Alignment: By controlling 5 axes simultaneously, a 5-axis CNC machine ensures the tool’s alignment with the workpiece, achieving highly precise 5-axis machined parts.
  • Complex Geometries: 5-Axis CNC machining allows for the creation of intricate geometries that would be challenging or impossible with traditional 3-axis or 4-axis CNC methods.
  • Consistent Quality: Continuous monitoring and precise control over the 5 axes result in consistent high-quality products, particularly vital in industries like aerospace and medical where precision machining is essential.


2. Reduced Setup Time


  • Single Setup for Complex Parts: 5-axis CNC machining enables the production of complex 5-axis parts in a single setup, reducing the time taken for fixture changes.
  • Automated Calibration: Many modern 5-axis CNC machine centers offer automated calibration, further reducing setup time and ensuring that the machining process begins quickly.


3. Enhanced Flexibility


  • Versatility in Materials: From metals like Aluminum and Steel to plastics and even wood, 5-axis CNC machining caters to a diverse range of materials.
  • Broad Application Range: The flexibility of 5-axis machining extends to various sectors including aerospace, electronics, military, medical, agriculture, lighting, and automation.
  • Customized Production: 5-axis CNC machines provide the ability to customize production runs, supporting prototypes, small batch, and mass production.


4. Cost-Effective


  • Reduced Waste: Precise control over 5-axis CNC machining minimizes waste of materials.
  • Energy Efficiency: Modern 5-axis CNC machine manufacturers focus on energy efficiency, potentially lowering operational costs.


5. Collaboration with Other Technologies


  • Integration with CAD/CAM: 5-Axis CNC machines work seamlessly with Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software, enhancing the entire manufacturing process.

Challenges and Limitations of 5 axis CNC Machining

While 5-Axis CNC Machining offers numerous advantages, it is essential to recognize the challenges and limitations that might be encountered. These aspects must be thoroughly understood and managed to harness the full potential of 5-Axis CNC machines.


1. Technical Challenges


  • Complex Programming: 5-Axis CNC programming is more intricate than 3 or 4-axis programming. It requires expertise to ensure optimal tool paths and prevent collisions.
  • Tool Length Considerations: The correct selection of tool length is vital, as too long or too short tools may lead to issues in 5-axis machining.
  • Machine Calibration: Regular calibration and maintenance are necessary to maintain the high precision offered by 5-axis CNC machines. The process can be time-consuming and requires skilled technicians.


2. Cost Factors


  • High Initial Investment: The purchase of a 5-axis CNC machine or 5-axis vertical machining center can be expensive. Costs can vary depending on the type of 5-axis CNC machine and specific requirements.
  • Operational Costs: While 5-axis CNC machining is more efficient in producing complex parts, it might be more expensive to operate and maintain, particularly concerning energy consumption and specialist personnel.


3. Limited Accessibility


  • Skill Requirements: Operators and engineers must possess a higher skill set for 5-axis CNC machining compared to conventional 3-axis or 4-axis CNC.
  • Software Compatibility: Not all CAD/CAM software can support 5-axis machining centers. Choosing the right software is critical for successful operations.


4. Material Constraints


  • Machining Hard Materials: While 5-Axis CNC machines can handle various materials, certain hard materials might pose challenges, affecting tool life and machining quality.


5. Production Considerations


  • Small Batch Production: For very small batch sizes, the setup time and costs might overshadow the benefits of using 5-axis CNC machining.

Applications of 5-Axis CNC Machining

1. Aerospace


  • Typical applications include turbine blades, aircraft frames, and engine components.


2. Electronics


  • This technology is vital in the manufacture of connectors, heat sinks, enclosures, and other complex electronic parts.


3. Medical


  • 5-Axis CNC machining is employed in manufacturing orthopedic implants, surgical instruments, and medical devices.


4. Military


  • Products include firearms components, navigational instruments, and various types of military-grade hardware.


5. Automotive


  • Gearbox components, engine parts, and chassis elements.


6. Agriculture, Lighting, Automation


  • From creating unique lighting fixtures to intricate parts for automation and agriculture, 5-Axis CNC machining offers a versatile solution.


7. Marine


  • Shipbuilding and marine applications require strong and precision-engineered components. 5-Axis CNC machining ensures these standards are met.:


8.Parts Ideal for 5-Axis CNC Machining


Complex Curved Surfaces

  • Aerodynamic Components: Parts with sweeping, complex curves.

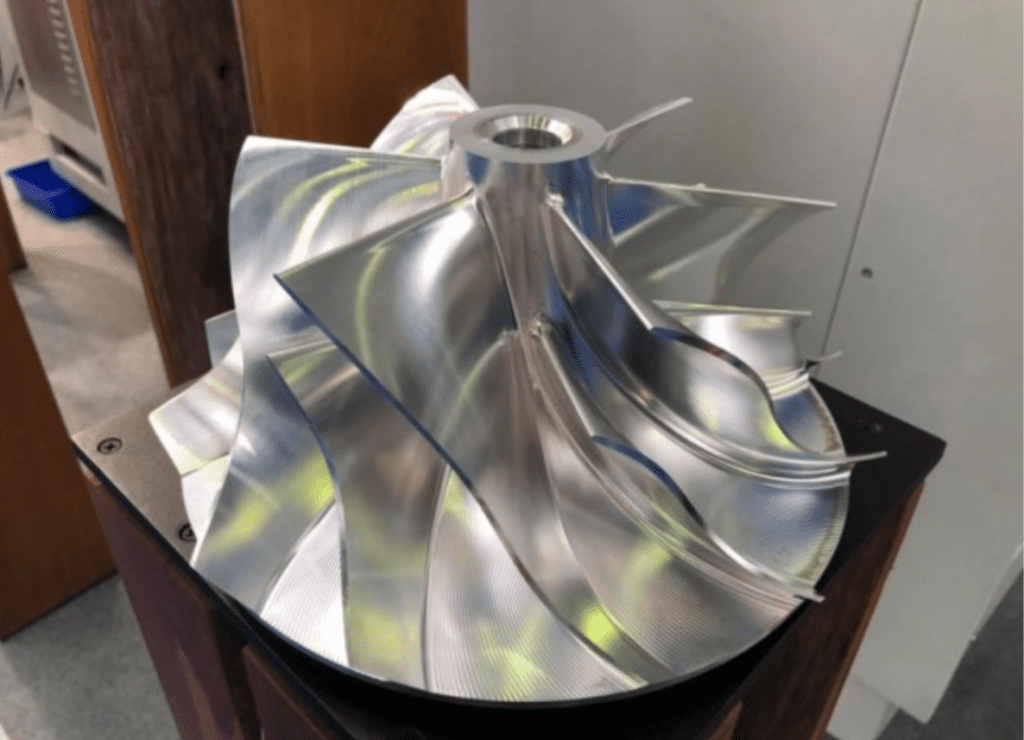

  • Propellers and Impellers: Twisted geometries that are challenging to machine.


Intricate Undercuts and Cavities

  • Mold and Die Making: When you need to reach undercuts or complex cavities.
  • Dental and Medical Implants: Customized shapes with undercuts that need precise machining.


Compound Angles and Tapers

  • Machine Tooling: Any tool or part with compound angles.
  • Joint Components in Robotics: Parts that require precise angles for articulation.


Multi-Sided Parts Requiring Continuous Machining

  • Precision Instruments: Parts that must be machined from multiple angles without re-fixturing.
  • Communication Devices: Complex multi-sided geometries.

Materials Suitable for 5-Axis CNC Machining


1. Metals


  • Aluminum: Lightweight and easy to machine, aluminum is commonly used in aerospace, automotive, and consumer goods.
  • Steel: Known for its strength and durability, steel is often used in automotive, tooling, and industrial applications. Varieties include stainless steel, tool steel, and carbon steel.
  • Titanium: This strong, corrosion-resistant metal is frequently chosen for aerospace and medical applications.
  • Brass and Bronze: These are preferred for their corrosion resistance and electrical conductivity, often used in electrical components and decorative items.
  • Copper: Used for its electrical conductivity, it’s popular in electronics and electrical applications.


2. Plastics


  • ABS: A common thermoplastic, ABS is known for its strength and temperature resistance. It’s often used in consumer electronics, automotive components, and toys.
  • Nylon (Polyamide): This strong, wear-resistant plastic is used in a range of industries including automotive and consumer products.
  • Polycarbonate (PC): Known for its optical clarity and impact resistance, PC is used in eyewear lenses, automotive components, and electronic devices.
  • PEEK: This high-performance plastic offers excellent thermal and chemical resistance, making it a top choice for aerospace, medical, and automotive sectors.
  • Acetal (Delrin): With its low friction and high stiffness, acetal is commonly used for gears, bearings, and other moving parts.


3. Other Materials


  • Ceramics: These are chosen for their hardness and heat resistance. Used in cutting tools, medical implants, and aerospace components.
  • Composites: Materials like carbon fiber and fiberglass are known for their high strength-to-weight ratio, used extensively in the aerospace and automotive industries.
  • Wood: Though not as common as metals and plastics, wood can also be machined using 5-axis CNC machines, especially for intricate carvings or mold making.

Equipment and Technology Used in 5-Axis CNC Machining

Types of 5-Axis CNC Machines

5-axis CNC machines come in various configurations, each designed to perform specific tasks. Here’s a look at some of the primary types:


  • 5-Axis Vertical Machining Center: These machines have the spindle oriented vertically, which allows for efficient chip evacuation and is often used in die and mold making.
  • 5-Axis Horizontal Machining Center: With a horizontal spindle, these machines are used for more extensive parts and are well-suited for aerospace applications.
  • 5-Axis CNC Lathe: Used for turning operations, these machines can also perform milling, allowing for the creation of complex geometries.
  • Multiaxis Milling Machine: These machines can have more than 5 axes, offering even more flexibility and precision.


Software Used for Programming


  • CAD (Computer-Aided Design): Allows for the designing of the complex 3D models that will be machined.
  • CAM (Computer-Aided Manufacturing): Translates the CAD models into a language that the CNC machine can understand, controlling the movement along the 5 axes.
  • Simulation Software: Essential for collision detection and optimization of the machining process.


Controllers and Automation


  • CNC Controllers: These are specialized computers that control the movement of the machine along its axes, including the cnc 5-axis programming.
  • Tool-Detection Systems: Utilized to continuously monitor tool integrity and enhance accuracy.
  • Robotic Automation: Used in some advanced setups to load and unload parts, improving efficiency and reducing manual labor.


Accessories and Tools


  • Cutting Tools: Specialized tools for different materials and operations, including drills, end mills, and lathe tools.
  • Coolant Systems: These manage temperature and remove chips, crucial for maintaining accuracy.
  • Tool Changers: Automate the process of changing tools during machining, reducing downtime.
  • Probing Systems: Used to check and align parts, ensuring precision.

Tactics for Maximizing Efficiency in 5-Axis CNC Machining

5-Axis CNC machining is known for its precision and complexity, but it’s also essential to ensure efficiency in this process. Here are the strategies that can be employed to maximize the efficiency in 5-Axis CNC machining:


A. Choosing the Appropriate Software and Controls

Understanding the requirements and features of a project is key to selecting the right software and controls. It helps in:


  • Enhancing Accuracy and Speed: Using the appropriate software can significantly reduce the time spent on programming and setup, thus speeding up the production process.
  • Facilitating Complex Geometries: The right software helps in managing complex 5-axis parts, ensuring precision.


B. Implementing a Tool-Detection System

Continuous monitoring is vital in maintaining the integrity of tools.


  • Importance of Continuous Monitoring: Tool wear can affect the accuracy of the parts. Implementing a tool-detection system can provide real-time feedback, helping in timely replacements or adjustments.
  • Maintaining the Integrity of Tools: Regular monitoring ensures that the tools are working at their best, delivering high-quality 5-axis machined parts.


C. Avoiding Collisions During Operations

The critical role of collision detection can’t be underestimated.


  • The Critical Role of Collision Detection: Collisions can lead to significant downtime and damage to the machine. Utilizing collision detection systems ensures that the machine operates smoothly.
  • Techniques to Ensure Safe and Smooth Machining: Implementing safety measures like proper training and using simulation software can prevent costly errors.


D. Utilizing Advanced 5-Axis Machining Centers

Investing in the latest 5-axis machining centers and 5-axis machine centers can increase efficiency.


  • Reducing Setup Time: Advanced machines with automatic tool changers and probing systems can reduce setup time, speeding up production.
  • Enhancing Flexibility: Machines with capabilities like 5-axis vertical machining center can handle various part geometries, providing flexibility.


E. Strategic Planning and Process Optimization

This involves a comprehensive approach to planning and optimizing the entire machining process.


  • Toolpath Planning: Efficient planning of the toolpath is critical in reducing machining time.
  • Material Considerations: Selecting the right materials that suit 5-axis CNC machining services can make the process more efficient.


F. Embracing Automation

Automation plays a vital role in enhancing efficiency.


  • Robotic Assistance: Robots can be used for loading and unloading, minimizing manual intervention.
  • Automated Quality Checks: Using technology for quality checks can save time and increase accuracy.


5-Axis CNC machining offers a world of possibilities for complex geometries and high-precision parts. Its capabilities extend beyond traditional 3-Axis or 4-Axis machining, providing benefits such as reduced setup time, increased precision, and enhanced flexibility. However, to fully harness these advantages, it is essential to implement strategic planning, select the right equipment and software, and embrace technological advancements such as automation.

As technology continues to advance, the potential applications of 5-Axis CNC machining will undoubtedly expand further. Whether you are an industry professional or looking to invest in this technology, understanding the various aspects of 5-Axis CNC machining can pave the way for successful outcomes. Explore the ultimate guide to 5-Axis CNC machining to dive deeper into this exciting field and consider employing the services of an expert precision machining company to transform your ideas into tangible, high-quality products.

Frequently Asked Questions (FAQ)


1. What is 5-Axis CNC machining?

5-Axis CNC machining refers to the ability of the CNC machine to move a part or tool on five different axes simultaneously. This enables the machining of very complex parts, which might be impossible with traditional 3-Axis or 4-Axis CNC machines.


2. What does a 5-Axis CNC machine cost?

The cost of a 5-Axis CNC machine can vary widely, depending on its specifications and capabilities, ranging from tens of thousands to several million dollars.


3. What is the difference between 3 and 5-Axis CNC machining?

3-Axis CNC machining involves movement in three directions (X, Y, Z), whereas 5-Axis CNC adds two additional rotational axes, enabling more intricate and precise operations.
