As a seasoned expert in metalworking, I’ve always been fascinated by the transformative power of iron bending. This process not only molds iron into functional and artistic forms but also challenges the boundaries of design and durability.

Iron bending is a skill that requires precision and knowledge. In this guide, I will take you through the various techniques that can be used to bend iron, the tools needed, and the safety measures to keep in mind. Iron bending offers a range of possibilities for shaping this versatile metal, from manual methods to advanced mechanical processes.

What is iron bending?

Iron bending, at its core, alters the shape of iron bars, sheets, or rods using force without breaking the material. This ancient technique manipulates iron—one of Earth’s most abundant and structurally significant metals—into various forms and shapes. It’s not just about bending; it’s about creating a structural change that maintains the integrity and strength of the metal.

What Types of Iron are Suitable for Bending?

When it comes to bending, not all iron is created equal. The suitability of iron for bending essentially depends on its composition and the specific properties each type offers.

1. Mild Steel

Mild steel, often referred to as low-carbon steel, contains a lower percentage of carbon than other steel types, making it one of the most popular and flexible materials for bending. Its flexibility allows it to be shaped easily without breaking, which is ideal for many construction and architectural applications.

2. Wrought Iron

Wrought iron is another excellent choice for bending due to its fibrous structure. It is known for its malleability and toughness, which makes it ideal for ornamental work such as gates, fences, and railing. Although less common today due to mild steel’s prevalence, wrought iron remains a preferred material for restoration work and historical reproductions.

3. Cast Iron

Although not typically known for its bendability, certain types of cast iron, such as ductile iron, can be bent when heated. Ductile iron has improved strength and flexibility compared to traditional cast iron, making it suitable for applications requiring flexibility, like pipes and automotive parts.

4. High Carbon Steel

While high-carbon steel is generally more rigid and less pliable, making it challenging to bend, it can still be used for bending applications where higher strength and hardness are required. This type of steel is often used in tools and blades.

What is the History of Iron Bending?

The earliest evidence of iron use dates back to around 4000 BCE, with the Iron Age officially beginning around 1200 BCE. Early ironworkers discovered that heating iron made it malleable, allowing it to bend and shape into weapons, tools, and artifacts.

During the medieval period, blacksmiths played a crucial role in society, forging and bending iron for various uses, including tools, horseshoes, weapons, and armor.

The 18th and 19th centuries Industrial Revolution marked a significant turning point for iron bending. The introduction of steam-powered machinery and the development of new processes like the puddling process made it easier to produce wrought iron in larger quantities.

In the 20th century, the advent of new technologies and the development of steel—an iron alloy—transformed the scope and efficiency of iron bending. Techniques such as hot and cold rolling, press braking, and laser-assisted bending have expanded the possibilities, allowing for more precise and intricate designs.

Advantages of Iron Bending

Iron bending is a critical technique in metal fabrication, offering many advantages that make it indispensable across various industries. Here are some key benefits of iron bending:

1. Versatility

Iron bending allows for a high degree of versatility in manufacturing. It can produce various shapes and sizes, from simple curves to complex geometrical forms. This versatility makes it ideal for creating parts for buildings, vehicles, furniture, and more, accommodating bespoke and standard designs.

2. Cost-Effectiveness

Iron bending is relatively economical compared to other metalworking processes like casting or machining. It requires less energy and fewer resources, which can significantly lower production costs. Additionally, bending minimizes material wastage as it deforms the metal rather than removing material, further enhancing its cost-efficiency.

3. Strength and Durability

Iron, particularly in forms like wrought iron or steel, retains much of its inherent strength even after being bent. This attribute is crucial for applications requiring robust and durable components, such as construction and automotive industries. Iron’s ability to withstand extreme conditions without failing makes it a reliable choice for many structural applications.

4. Aesthetic Appeal

Iron bending offers aesthetic benefits as well. It can be used to create intricate designs and patterns that are functional and visually appealing. This is especially valuable in architectural applications, where the appearance of materials can significantly impact the overall design of a building.

5. Efficiency

With automated bending machines and techniques, iron bending has become highly efficient, producing consistent and accurate results at high speeds. This efficiency benefits large-scale production runs where time and consistency are critical factors.

6. Sustainability

Iron bending contributes to sustainability efforts as it allows for using recycled materials. Iron and steel are among the most recycled materials in the world, and their properties do not degrade with repeated recycling. Using these materials in bending applications helps reduce the environmental impact of new material production.

Types of Iron Bending Techniques

Manual Bending

Manual bending is the most traditional form of iron bending. It involves using hand tools such as hammers, mallets, and manual bending machines. This method best suits smaller projects where precise, artisanal craftsmanship is needed.

It allows for much control and customization but is labor-intensive and less consistent than machine-driven methods.

Mechanical Bending

Mechanical bending involves the use of mechanical presses and rollers to bend iron. This technique is more uniform and much faster than manual bending, making it suitable for medium to high-volume production.

Mechanical benders can handle a variety of iron thicknesses and widths, and they can produce consistent bends with great accuracy.

Hydraulic and Pneumatic Bending

Hydraulic and pneumatic bending machines use fluid or air pressure to generate the force to bend iron. These machines offer more power and control, crucial for bending thicker and harder iron materials.

The precision and repeatability of hydraulic and pneumatic bending make them ideal for industrial applications where uniformity and efficiency are critical.

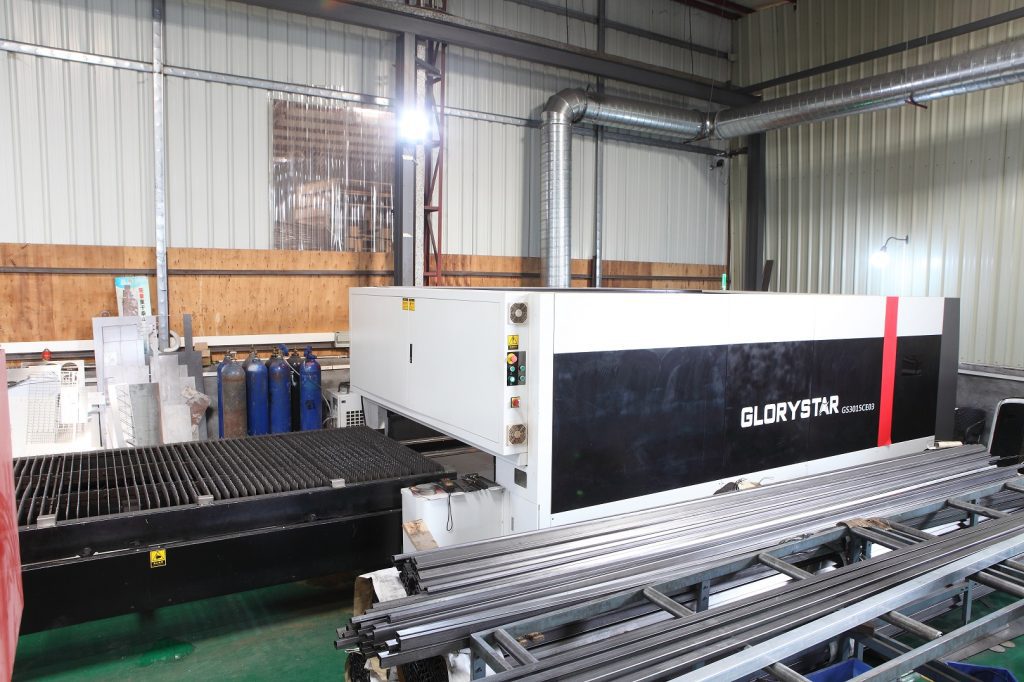

Laser-Assisted Bending

Laser-assisted bending is a modern technique that uses a laser to heat specific areas of iron to make it more pliable. This method allows for extremely precise bending with minimal physical force, reducing the risk of material distortion or damage.

Laser-assisted bending is particularly useful for complex shapes and thin materials where traditional methods might compromise the material’s integrity.

Step-by-Step Guide to Iron Bending

Iron bending is a meticulous process that requires careful planning and execution to ensure the final product meets specifications and maintains its integrity. Here’s a detailed step-by-step guide covering the key phases of iron bending:

Preparation

  1. Material Selection: Choose the correct type of iron based on the project requirements. Factors like thickness, strength, and flexibility should be considered to match the bending technique you plan to use.
  2. Design and Measurements: Precisely measure and outline the bending requirements. Create detailed drawings or use CAD software to visualize the end product and the specific bend angles and positions.
  3. Tool and Machine Setup: Select the appropriate bending tools or machines, such as manual benders, mechanical presses, or hydraulic machines. Set up the equipment according to the manufacturer’s instructions, ensuring all components are correctly aligned and operational.
  4. Material Preparation: If necessary, cut the iron to the required size using saws or cutters. Clean the surface to remove any dirt, grease, or rust that could affect the quality of the bend.

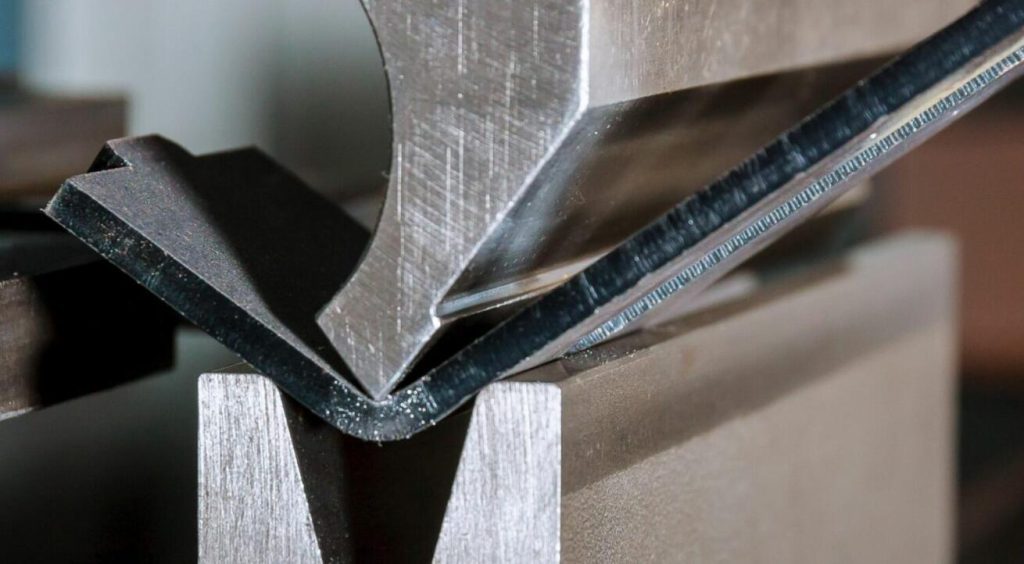

The Bending Process

  1. Heating (if applicable): Heating the material might be necessary for certain bending operations, especially when working with thicker or more rigid iron. Use a torch or a furnace to heat the iron to the appropriate temperature to increase its flexibility.
  2. Positioning the Iron: Place the iron piece on the bending machine or tool, aligning it according to the markings for the bend. Ensure it is securely held to prevent movement during the bending process.
  3. Executing the Bend: Activate the machine or apply manual force to bend the iron. Adjust the pressure and angles as required for machine bending, monitoring the process to ensure precision.
  4. Monitoring for Quality: Continuously check the angle and quality of the bend using protractors or angle finders. Adjust the process as needed to correct any deviations from the desired specifications.

Choosing the Right Iron Bending Equipment

Factors to Consider

  • Material Type and Thickness: The type of iron and its thickness directly impact the choice of bending equipment. Different machines have varying capacities for handling material thickness and hardness.
  • Bending Complexity: Consider the complexity of the bends required. Machines range from simple manual benders for straightforward bends to CNC (Computer Numerical Control) machines for complex, precise bends.
  • Production Volume: Assess your production needs. High-volume projects may justify the cost of automated, high-speed bending machines, while lower-volume or bespoke projects might be more economically served by manual or semi-automatic equipment.
  • Workspace Constraints: The size of the machinery must fit within your available workspace. Also, consider the power requirements and whether your facility can accommodate them.
  • Budget: Equipment costs can vary widely. Balance the initial investment against the expected efficiency gains, production needs, and output quality.

Recommended Equipment

  • Manual Benders: Ideal for small workshops or occasional bending. Examples include handheld benders and floor-mounted manual bending brakes.
  • Mechanical Press Brakes: Suitable for medium to high volume production with consistent results. They are more precise than manual options but require a more significant investment.
  • Hydraulic Press Brakes: Best for heavy-duty bending of thick or tough iron. These machines offer power and precision, which is ideal for industrial applications.
  • CNC Bending Machines: Perfect for projects requiring high precision and complex patterns. CNC machines automate the bending process, reduce labor costs, and increase production speed.
  • Panel Benders are excellent for bending large sheet metal panels and are commonly used in the automotive and aerospace industries.

Maintenance Tips

  • Regular Lubrication: Ensure all moving parts are lubricated to reduce wear and tear and prevent breakdowns.
  • Routine Inspections: Perform regular inspections to catch issues early. Check for signs of wear, misalignment, or hydraulic leaks.
  • Keep It Clean: Keep the machine clean from dust, dirt, and metal scraps that can accumulate during bending and potentially harm the machine’s functionality.
  • Software Updates: For CNC machines, keep software updated to ensure you use the latest features and optimizations.
  • Professional Servicing: Schedule regular professional maintenance checks to ensure the equipment operates at peak performance. This is particularly important for high-precision equipment like CNC machines.

Conclusion

If you want to elevate your projects with top-tier iron bending services or need guidance selecting the right equipment, don’t hesitate to reach out. Our team of experts is ready to assist you with industry-leading solutions and support. Contact us today to transform your ideas into reality.

FAQ

What materials can be bent besides iron?

Besides iron, materials such as aluminum, copper, brass, and various steel grades are commonly bent for industrial and artistic applications.

How long does the bending process take?

Simple bends take a few minutes, while more complex projects require hours.

Is it possible to bend iron without heating it?

Iron can be bent without heating, especially if it’s thin or the bend required is not severe.

//]]>
