Aluminum Bending 101: A Comprehensive Guide for Manufacturers

As a manufacturer with years of experience in metalworking, I’ve witnessed firsthand the pivotal role aluminum bending plays in modern industry. When we talk about aluminum bending, we’re referring to altering the shape of aluminum sheets or profiles using various tools and methods.

It’s a core activity for any manufacturer aiming to produce lightweight, durable parts with complex geometries. The key benefits? Aluminum is cost-effective and offers excellent corrosion resistance and a high strength-to-weight ratio, making it ideal for countless applications.

Maintaining a competitive edge in manufacturing means staying updated on the best practices and techniques. When done right, aluminum bending can be your gateway to more innovative designs and superior products.

The Benefits of Aluminum Bending

Aluminum bending offers many advantages, making it a go-to choice for manufacturers across various industries. Here’s why it’s so beneficial:

Lightweight and Strong: Aluminum’s low density doesn’t compromise its strength. This combination makes it perfect for applications where reducing weight is crucial without sacrificing structural integrity. Whether in aerospace, automotive, or construction, the ability to create lightweight components with excellent strength is a significant plus.

Corrosion Resistance: Aluminum naturally forms a protective oxide layer that shields it from corrosion. This property ensures that bent aluminum parts maintain their appearance and performance over time, even in harsh environments. It’s precious for outdoor applications or in industries where durability is necessary.

Flexibility in Design: Aluminum bending allows for a wide range of shapes and designs, from simple angles to complex curves. This flexibility enables manufacturers to create custom parts that fit specific requirements without additional machining or assembly steps. It opens up possibilities for innovative product designs and more efficient manufacturing processes.

Cost-Effective: Aluminum is generally more affordable than other metals like steel. Its ease of machining and forming further reduces production costs. Additionally, aluminum’s lighter weight can lead to savings in shipping and handling, making it a cost-effective choice for many applications.

Recyclability: Aluminum is highly recyclable, which aligns with sustainable manufacturing practices. Recycled aluminum requires less energy than producing new aluminum from ore, making it an eco-friendly option supporting environmental responsibility.

Excellent Thermal and Electrical Conductivity: Aluminum’s good thermal and electrical conductivity makes it suitable for applications requiring heat dissipation or electrical conduction. This property is particularly beneficial in electronics and HVAC systems.

Aluminum Bending Methods

Bending aluminum involves various methods suited to different projects and material properties. Here’s a rundown of the most common aluminum bending methods:

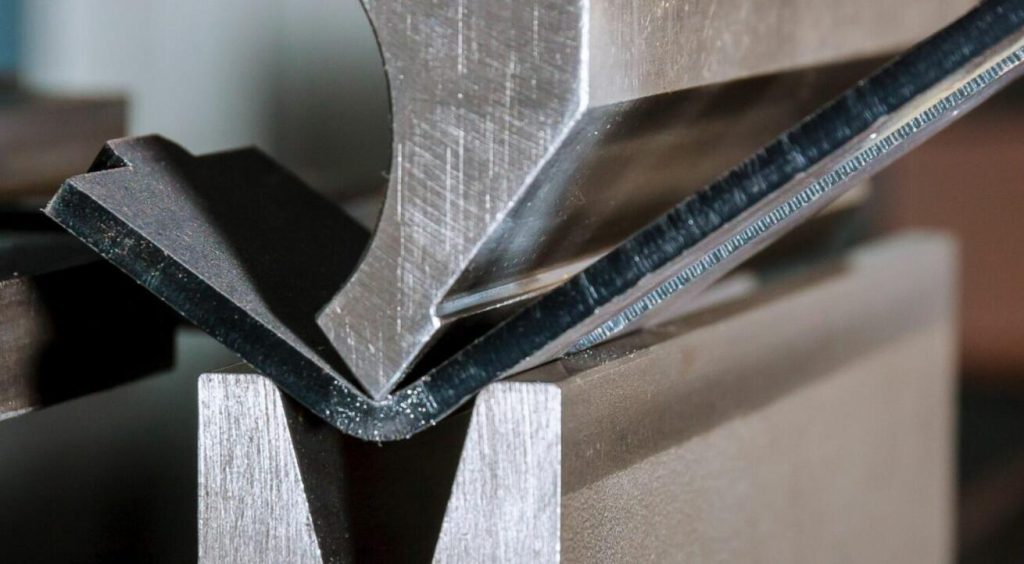

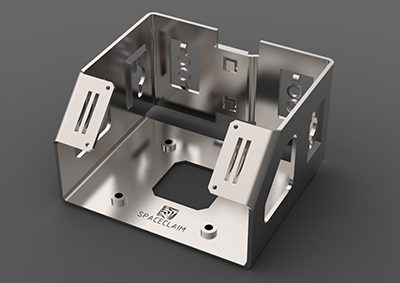

1. Press Brake Bending

• Description: A press brake uses a punch and die to create bends in aluminum sheets. The aluminum is placed on a lower die, and a punch descends to press the material into the desired shape.

• Applications: Ideal for creating precise bends in flat sheets of aluminum. They are commonly used for manufacturing brackets, panels, and enclosures.

• Advantages: Provides high precision and repeatability. Suitable for a wide range of aluminum thicknesses and can handle complex shapes.

• Considerations: Requires careful calibration to manage aluminum’s spring-back effect and ensure accurate bends.


2. Roll Bending

• Description: Roll bending involves passing aluminum through rollers that progressively bend the material into a curve or circle.

• Applications: Used for creating cylindrical shapes, such as pipes, tubes, and circular sections. Common in construction and manufacturing.

• Advantages: Ideal for continuous bends and large-radius curves. It can handle more extended lengths of aluminum.

• Considerations: Less suitable for sharp angles or tight radii. The process requires precise control of roller settings to achieve the desired bend.

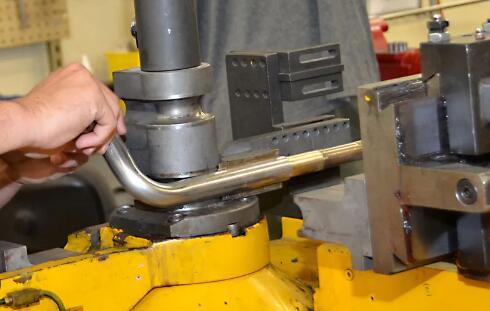

3. Mandrel Bending

• Description: Mandrel bending involves inserting a mandrel (a support rod or ball) inside the aluminum tube or pipe to prevent collapse or wrinkling during bending.

• Applications: Ideal for bending aluminum tubing or pipes into complex shapes without deforming the tube walls.

• Advantages: Allows for tight radius bends and reduces the risk of wrinkling or collapsing.

• Considerations: Requires specialized equipment and tooling. The mandrel must be appropriately sized for the tube or pipe being bent.


4. Air Bending

• Description: In air bending, the aluminum is bent by applying force to the material between a punch and a die. The material is not confined within the die, allowing for flexibility in the bend radius.

• Applications: Used to create various bends with different radii. Suitable for applications requiring multiple bends in a single setup.

• Advantages: Flexible and versatile, allowing for different bend angles and radii with minimal tooling changes.

• Considerations: Less precise than other methods, as the bend radius can vary depending on material thickness and process parameters.


5. Bottoming (or Coining)

• Description: Bottoming or coining involves forcing the aluminum into the die cavity, resulting in a more precise and consistent bend angle than air bending.

• Applications: Ideal for high-precision applications where accuracy is critical, such as aerospace and automotive components.

• Advantages: Provides high accuracy and repeatability for bends. Reduces spring back compared to air bending.

• Considerations: Requires careful setup and calibration to avoid excessive tooling wear and ensure accurate results.


6. Stretch Bending

• Description: Stretch bending involves stretching the aluminum while bending it to achieve a desired shape. This method is often used for aluminum profiles or extrusions.

• Applications: Common in producing aluminum architectural components
  and structural elements, where precise curvature and dimensional accuracy are required.

• Advantages: Allows for creating complex curves and shapes with minimal distortion. The stretching process helps in reducing residual stresses.

• Considerations: Requires specialized equipment and can be more time-consuming than other methods. The process needs to be carefully controlled to avoid over-stretching and material defects.


7. Hot Bending

• Description: Hot bending involves heating the aluminum to a specific temperature before bending. The heat makes the material more pliable and more accessible to shape.

• Applications: Used for bending thicker aluminum sections or alloys that are difficult to bend at room temperature. Common in heavy-duty applications like structural components.

• Advantages: Reduces the risk of cracking and allows for tighter bends. Can handle materials that are otherwise challenging to bend cold.

• Considerations: Requires precise temperature control and additional safety measures due to the high heat involved. The process may also affect the material’s properties, requiring post-bending heat treatment.


8. Hydroforming

• Description: Hydroforming uses high-pressure hydraulic fluid to shape aluminum into a die. The fluid applies even pressure around the material, allowing for complex shapes with minimal material waste.

• Applications: Often used for producing complex, high-strength parts in industries like automotive and aerospace.

• Advantages: Provides excellent dimensional accuracy and surface finish. Capable of forming complex geometries without the need for multiple tooling changes.

• Considerations: High initial setup costs and precise hydraulic pressure control are required. You are limited to specific shapes and materials.


Bending Aluminum Alloys Types

1. 1000 Series (Pure Aluminum)

• Composition: Nearly 100% aluminum with minimal alloying elements.

• Properties: High ductility, excellent corrosion resistance, and good workability. However, it has lower strength compared to other alloys.

• Bending: The high flexibility makes it easy to bend without cracking, making it suitable for applications where corrosion resistance is more critical than strength.


2. 2000 Series (Copper Alloys)

• Composition: Primarily aluminum with copper as the primary alloying element.

• Properties: Known for high strength and excellent machinability. However, it has lower corrosion resistance compared to 1000 series alloys.

• Bending: These alloys are less ductile, making them more challenging to bend without cracking. Proper heat treatment and bending techniques are necessary to avoid issues.


3. 3000 Series (Manganese Alloys)

• Composition: Aluminum alloyed with manganese.

• Properties: Good corrosion resistance, moderate strength, and excellent workability. It’s often used in applications like beverage cans and roofing sheets.

• Bending: This series is known for its good formability and can be easily bent, making it a versatile choice for various applications.


4. 4000 Series (Silicon Alloys)

• Composition: Primarily aluminum with silicon as the primary alloying element.

• Properties: Excellent wear and corrosion resistance, improved strength over pure aluminum. They are often used in automotive components and industrial applications.

• Bending: Silicon increases the alloy’s hardness, making bending more difficult. Careful control of the bending process is needed to prevent cracking.


5. 5000 Series (Magnesium Alloys)

• Composition: Aluminum alloyed with magnesium.

• Properties: Known for high strength, excellent corrosion resistance, and good weldability. Commonly used in marine and automotive industries.

• Bending: These alloys offer good bending capabilities but can be more challenging than pure aluminum. Proper heat treatment can enhance their bendability.


6. 6000 Series (Magnesium and Silicon Alloys)

• Composition: Aluminum alloyed with magnesium and silicon.

• Properties: Versatile with a good strength, corrosion resistance, and workability balance. They are used in structural applications, including bridges and pipelines.

• Bending: This series is relatively easy to bend with proper techniques and equipment. It’s a popular choice for structural applications due to its balance of properties.


7. 7000 Series (Zinc Alloys)

• Composition: Aluminum alloyed with zinc.

• Properties: High strength and good fatigue resistance but lower workability compared to other series. They are often used in aerospace applications.

• Bending: The high strength can make these alloys more challenging to bend. Special attention is required to manage the risk of cracking during bending.


How to Choose the Right Aluminum Bending Technique

The appropriate aluminum bending technique is crucial for achieving the desired outcome in your manufacturing projects. Here’s a step-by-step guide to help you choose the suitable method:

1. Consider the Material Specifications

• Alloy Type: Different aluminum alloys have varying properties that affect their bendability. For example, 3000 series alloys are generally more flexible, while 7000 ones are stronger but more challenging to bend.

• Thickness: Thicker aluminum may require specific bending techniques or additional heat treatment to avoid cracking.


2. Determine the Bend Radius and Angle

• Bend Radius: Smaller radii require more precise techniques and may need specialized equipment. Methods like press brake or mandrel bending are suitable for tight radii.

• Bend Angle: The desired angle will influence the choice of method. Some techniques, like air bending, offer flexibility in achieving various angles, while others, like bottoming, provide higher precision.


3. Evaluate the Complexity of the Design

• Simple Shapes: Methods like press brake or roll bending are often sufficient for straightforward bends.

• Complex Geometries: Techniques such as hydroforming or mandrel bending are better suited for complex shapes that require intricate bending.


4. Assess the Production Volume

• Low Volume: Manual bending methods or smaller press brakes might be adequate for small quantities or prototypes.

• High Volume: Automated methods or roll bending are more efficient for large-scale production, providing consistency and speed.


5. Consider the Desired Finish and Tolerances

• Finish Quality: Techniques like hydroforming can provide a superior surface finish, while other methods might require additional finishing steps.

• Tolerance Requirements: If high precision is needed, methods like bottoming or press brake bending are ideal for maintaining tight tolerances.


6. Evaluate Cost and Equipment Availability

• Budget: Some methods, like hot bending or hydroforming, may involve higher costs due to equipment and setup. Consider your budget and weigh it against the benefits of each technique.

• Equipment: Ensure you have access to the necessary equipment or consider outsourcing if specialized machinery is required.


7. Consult with Experts

• Experience Matters: If you’re unsure which method is best for your project, consult with industry experts or manufacturers who have experience with different bending techniques. They can provide valuable insights and recommendations based on your specific needs.


Conclusion

Understanding aluminum bending methods is crucial for achieving the best results in your manufacturing projects. Whether you need precise bends or complex shapes, the proper technique can make all the difference. Feel free to contact us if you have any questions or need expert assistance with your aluminum bending needs. We’re here to help!

FAQ

Q: What factors affect the choice of aluminum bending method?

A: Key factors include the type of aluminum alloy, the complexity of the bend, the thickness of the material, and the precision required.

Q: Can all aluminum alloys be bent using the same methods?

A: Different alloys have varying properties that may require specific bending techniques or adjustments.

Q: What is the impact of spring back in aluminum bending?

A: Springback refers to the tendency of aluminum to return to its original shape after bending. Careful adjustment during the bending process is required to achieve accurate results.
