Worthy Hardware delivers custom waveguide flanges, precision-engineered for optimal RF performance and signal integrity. We machine to your exact drawing specifications, achieving exceptionally tight tolerances (e.g., +/- 0.001" or even tighter based on your needs). Choose from a wide array of metals like aluminum, brass, and copper, with specialized surface finishes available. Our rigorous 100% inspection process and experienced engineers ensure you receive high-quality, reliable flanges on time, from single prototypes to high-volume production. Partner with Worthy for your critical waveguide components and experience dependable manufacturing.

What is Waveguide Flange?

A waveguide flange is a precision-engineered connector component used to join sections of waveguide tubing. Its primary function is to create a secure mechanical connection while ensuring a continuous and uninterrupted path for microwave or radio frequency (RF) signals. These flanges are meticulously machined with specific bolt patterns and flat mating surfaces to minimize signal loss, reflections, and leakage at the joint, thereby maintaining the integrity of the signal transmission within the waveguide system.

Function of Waveguide Flangessssss

• Mechanical Connection: To securely join two waveguide sections, providing structural stability and precise alignment. This ensures the connected parts form a rigid and continuous structure.

• Signal Integrity: To create an uninterrupted, low-loss path for RF/microwave signals. A well-designed flange minimizes signal reflections, power loss, and prevents signal leakage at the joint, crucial for optimal system performance.

• System Modularity & Maintenance: To allow for the convenient assembly, disassembly, and replacement of waveguide components, facilitating system upgrades, repairs, and modifications.

Advantages of the Waveguide Flange

• Secure & Reliable Connection: Provides robust mechanical stability and precise alignment between waveguide sections, crucial for consistent system performance and preventing misalignment issues.
• Minimized Signal Loss & Reflection: Precision-machined mating surfaces ensure minimal RF leakage, significantly reduce signal reflection (VSWR), and lower insertion loss, thereby preserving signal integrity and power.
• Ease of Assembly & Maintenance:Simplifies the installation, testing, and repair of waveguide components. Flanges allow for straightforward connection and disconnection, facilitating system modularity, upgrades, and troubleshooting.
• Pressure & Environmental Sealing: When used with appropriate gaskets, flanges can provide a seal against environmental factors like moisture, dust, and even maintain internal pressure or vacuum if required by the application.

Material for Waveguide Flange

At Worthy Hardware, we machine waveguide flanges from a variety of high-performance metals specified in your designs. Common materials include:

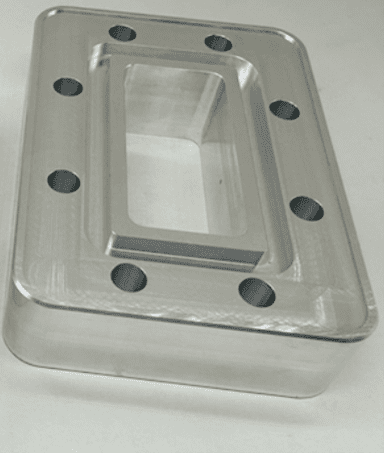

• Aluminum Alloys (e.g., 6061, 6063):Widely used due to their excellent balance of good electrical conductivity, light weight, good machinability, and cost-effectiveness. Often preferred for general-purpose and aerospace applications.

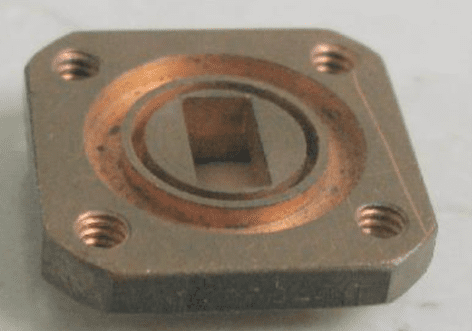

• Copper (e.g., OFHC - Oxygen-Free High Conductivity): Offers the highest electrical conductivity, minimizing signal loss (insertion loss). Ideal for high-power or very low-loss applications, though heavier and typically more expensive than aluminum.

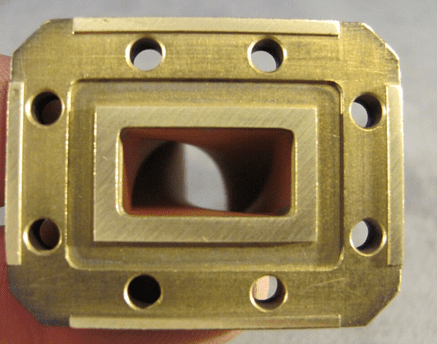

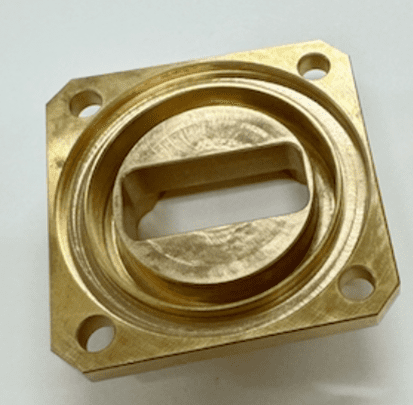

• Brass: Provides good electrical conductivity (better than aluminum but less than copper), excellent machinability, and good corrosion resistance. A solid, often cost-effective alternative.
• Stainless Steel: Chosen when superior corrosion resistance or structural robustness in harsh environments is paramount, although its conductivity is lower than aluminum or copper.

As a custom CNC machining provider, Worthy Hardware can manufacture your waveguide flanges from virtually any machinable metal according to your precise drawings and specifications. Simply provide your design, and we'll utilize our expertise and extensive material inventory (over 100+ metals and alloys available) to produce your parts accurately.
