What is CNC Foam Machining?

Imagine you're tasked with carving a detailed sculpture—not from marble or wood, but from a block of foam. It sounds challenging, doesn't it? Luckily, CNC foam machining is the technology tailored for this exact purpose, making seemingly impossible tasks quite feasible.

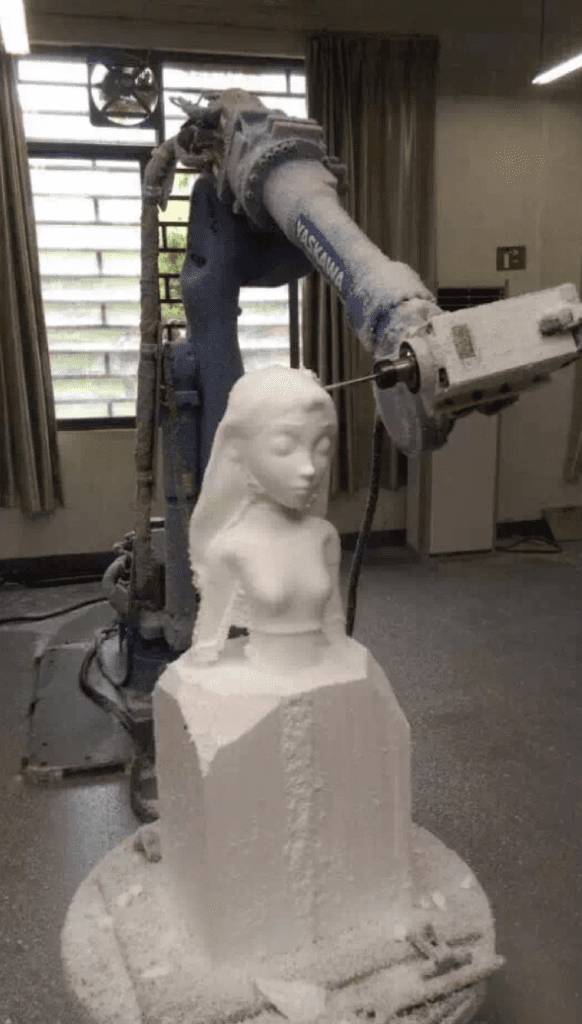

CNC foam machining involves using computer-controlled tools to carve or cut foam into specific shapes and designs. This process is achieved through a computer numerical control (CNC) machine, which directs tools to follow a predefined design path detailed in a digital file. The beauty of CNC foam machining lies in its ability to create complex, precise, and repeatable parts and products from various foam materials, ensuring high accuracy and excellent detail in the final output.

Maintaining the precision and detail in foam machining is not just about having the right tools; it's about leveraging technology to bring creative visions to life. Whether it's for prototyping, packaging, or artistic sculptures, CNC foam machining opens up a world of possibilities.

What is CNC Foam Machining?

CNC foam machining refers to the process of cutting and shaping foam materials using a CNC (Computer Numerical Control) machine. The machine uses computer-generated coordinates to guide cutting tools, such as routers and hot wires, to precisely carve and shape foam into various forms and dimensions. This technique is highly valued for its precision, repeatability, and ability to create intricate designs and patterns that would be difficult to achieve manually.

How Does CNC Foam Machining Work?

CNC foam machining operates through a combination of sophisticated software and precise hardware. Here's a step-by-step overview of how this process unfolds:

1. Design Creation: The first step involves creating a detailed design using CAD (Computer-Aided Design) software. This design specifies the dimensions and shapes that the foam needs to be cut into.
2. CAM Processing: Once the design is finalized, it's converted into a machine-readable format using CAM (Computer-Aided Manufacturing) software. This software translates the CAD design into a G-code, which is a programming language that CNC machines understand.
3. Setup: The foam block is securely mounted on the CNC machine's worktable to ensure stability during the machining process. The type of foam material and the specific design requirements dictate the setup adjustments, including the selection of the appropriate cutting tools such as end mills, routers, or hot wires.
4. Machining: The CNC machine reads the G-code and starts the machining process. The cutting tool is moved along the predetermined paths with high precision. Depending on the complexity of the design and the type of foam, the machine may use different tools and speeds.
5. Monitoring: Throughout the machining process, the operations are closely monitored to ensure accuracy. Adjustments are made as needed to compensate for any potential discrepancies in foam behavior under different cutting conditions.
6. Finishing: After the initial cutting and shaping are complete, the machined foam may undergo additional finishing processes such as sanding or coating to enhance its appearance and functionality.

Types of Foam Suitable for CNC Machining

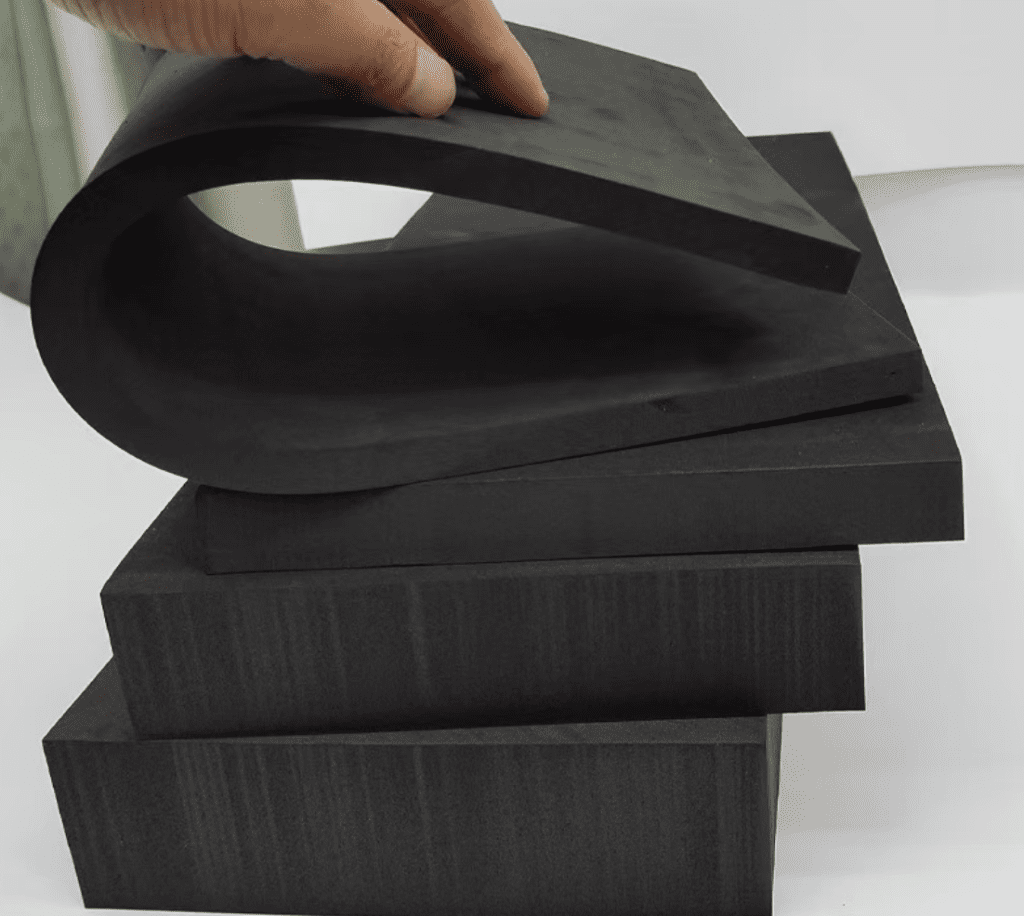

Polystyrene Foam

Polystyrene, often known by its brand name Styrofoam, is one of the most common types of foam used in CNC machining. It's lightweight, easy to shape, and cost-effective, making it ideal for creating mock-ups, architectural models, and theatrical props.

Polyethylene Foam

Polyethylene foam is denser than polystyrene and offers excellent shock absorption and vibration dampening properties. This type of foam is frequently used in packaging for sensitive or high-value items and in automotive and aerospace applications for insulation and cushioning.

Polyurethane Foam

Polyurethane foam is highly versatile and can be adjusted in terms of density and rigidity, which allows it to serve a wide range of applications from automotive seating to sculptural and artistic projects. It is also commonly used for prototype development due to its fine cell structure and smooth surface, which require minimal finishing work.

EVA Foam

Ethylene-vinyl acetate (EVA) foam is robust, flexible, and resistant to UV radiation and weather, making it suitable for use in sports equipment and toys. EVA is also popular in cosplay and costumes due to its flexibility, durability, and ease of painting and sealing.

Expanded PVC Foam

Expanded PVC foam boards, known under brand names like Forex or Sintra, offer a more rigid alternative that is still easy to machine. This type of foam is excellent for creating precise, durable, and aesthetically appealing models and displays, as well as in signage and construction.

Foam Machining Processes

Hot Wire Cutting

Hot wire cutting is one of the simplest and most efficient methods for slicing through foam. A heated wire melts and cuts through the foam, creating smooth surfaces. This method is ideal for polystyrene foam and is commonly used in architectural models and theatrical props where large blocks need to be shaped quickly.

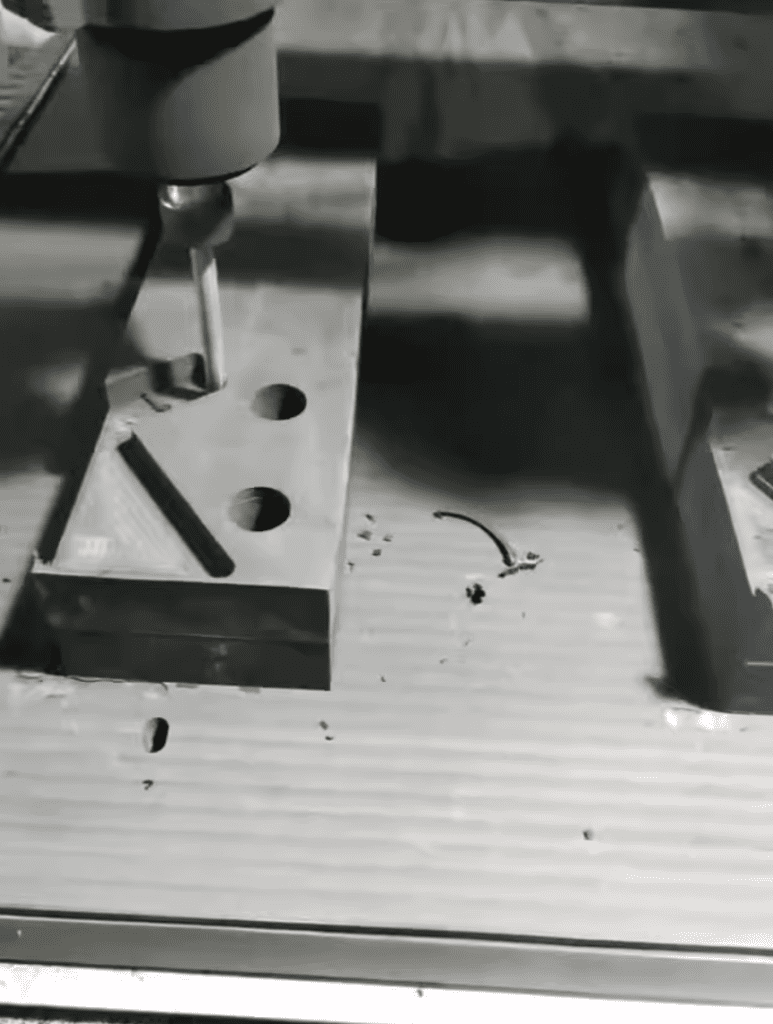

Milling

CNC milling involves the use of rotary cutting tools to remove material from a foam block. This process is highly precise and can be used to create complex three-dimensional shapes. Milling is suitable for harder, more dense foams like polyurethane and polyethylene, where intricate detail and smooth finishes are required.

Routing

Similar to milling, routing uses a rotating spindle and is particularly effective for larger or more complex cuts. CNC routers can handle a variety of foam densities and are excellent for detailed carvings and engravings in decorative applications or functional parts.

Waterjet Cutting

Though less common, waterjet cutting uses a high-pressure jet of water, sometimes mixed with an abrasive material, to cut through foam. This method is dust-free, which makes it advantageous when working with types of foam that produce harmful particles upon cutting.

Laser Cutting

Laser cutting uses a concentrated beam of light to melt, burn, or vaporize foam material, offering a high degree of precision and cleanliness. It's particularly useful for fine detailing in lightweight foams like EVA or closed-cell foam.

Advantages of Foam CNC Machining

Precision and Accuracy

CNC machines operate with high precision, guided by digital designs. This ensures that every cut and contour is accurate to the specified measurements, allowing for the creation of complex designs and detailed features with consistent quality across multiple productions.

Speed and Efficiency

The automation provided by CNC technology enables rapid production of foam parts. Once the design is finalized and programmed, the CNC machine can produce the foam components quickly, reducing both production time and labor costs.

Versatility

CNC foam machining can handle a variety of foam types, each suitable for different applications. This versatility allows manufacturers to use the best material for the specific requirements of their project, whether it’s lightweight polystyrene for model making or dense polyurethane for industrial components.

Minimal Waste

Due to the precision of CNC machines, foam material is utilized efficiently, minimizing waste. This not only reduces material costs but also supports environmentally friendly practices by reducing the volume of waste produced.

Customization

With CNC machining, it is easy to adjust the design and produce customized solutions for unique applications. Whether for individual custom parts or modifications to existing designs, CNC machining offers flexibility that is essential for bespoke projects.

Consistency

For production runs that require the fabrication of multiple identical parts, CNC machining ensures that each piece is consistent with the others. This consistency is crucial in industries where uniformity in component quality and dimensions is critical.

Safe and Clean

Compared to traditional manual cutting methods, CNC foam machining is safer as it reduces direct human interaction with the cutting tools. Additionally, some CNC methods like hot wire cutting and laser cutting are cleaner, producing less debris and dust.

Applications of CNC Foam Machining

• Prototyping: Quick, cost-effective creation of prototypes for various industries.

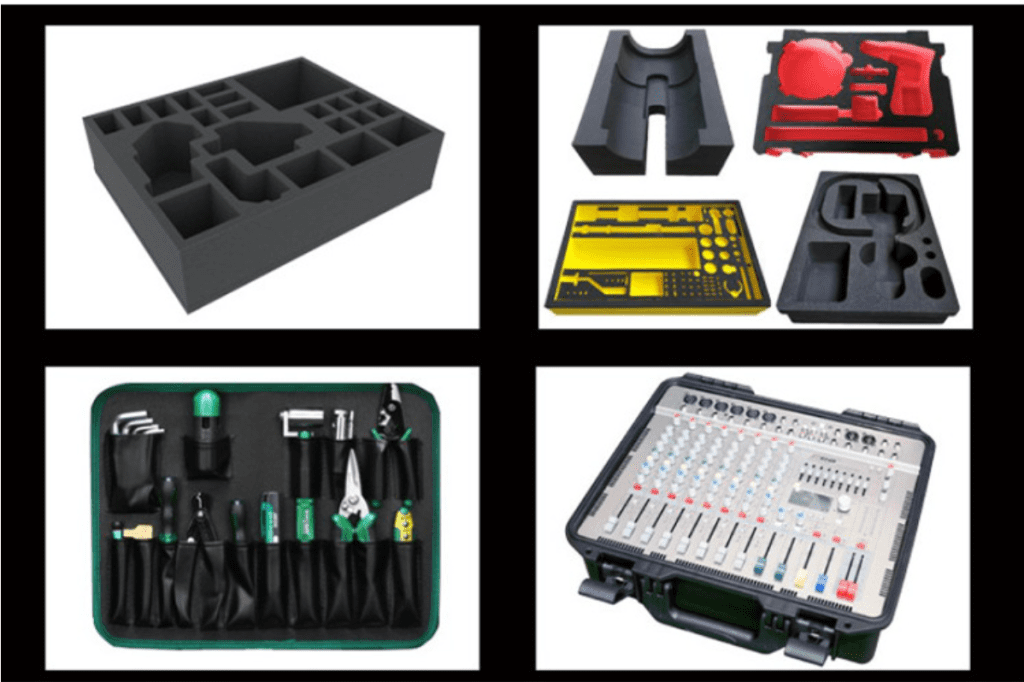

• Packaging Solutions: Custom protective packaging for electronics, automotive parts, and more.
• Architectural Models: Detailed models of buildings, landscapes, and other structures.
• Theatrical and Film Props: Lightweight, detailed props for movies and stage performances.
• Aerospace Components: Lightweight, precision-crafted parts for aerospace applications.
• Automotive Parts: Custom insulation, seating, and component models.
• Sports Equipment: Custom molds and parts for sporting goods.
• Signage: Large, intricate, and durable signs for business or events.
• Art Installations: Complex shapes for artistic projects and displays.
• Medical Training Aids: Anatomical models for educational and training purposes.

Conclusion

We invite you to explore the possibilities with CNC foam machining for your specific needs. Contact us to discover how our expertise and capabilities can bring your projects to life with precision and efficiency. Let us help you innovate and succeed.

FAQ

What types of foam can be CNC machined?

Common types include polystyrene, polyethylene, polyurethane, and EVA foam.

How accurate is CNC foam machining?

CNC foam machining offers high precision, typically within millimeters, depending on the machine and foam type.

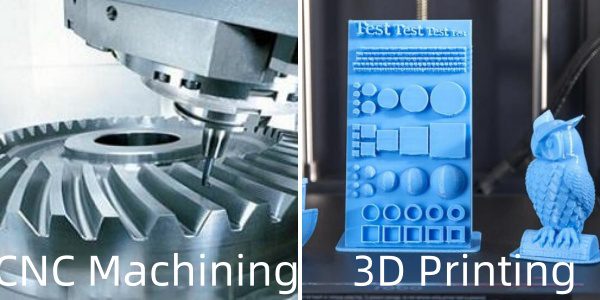

Basic Principles

What is 3D Printing?

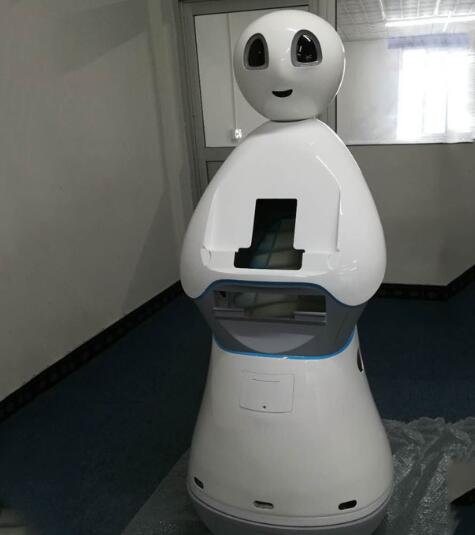

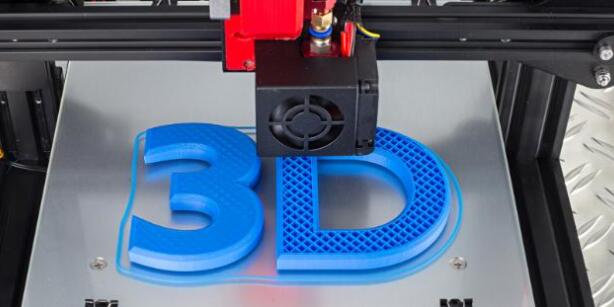

3D printing, or additive manufacturing, operates on a layer-by-layer addition of material to create objects from a digital blueprint. This process begins with designing a 3D model using computer-aided design (CAD) software.

The printer then slices this model into thin, horizontal layers and constructs the object sequentially from the bottom up by extruding material through a nozzle or using a laser to solidify a liquid or powder.

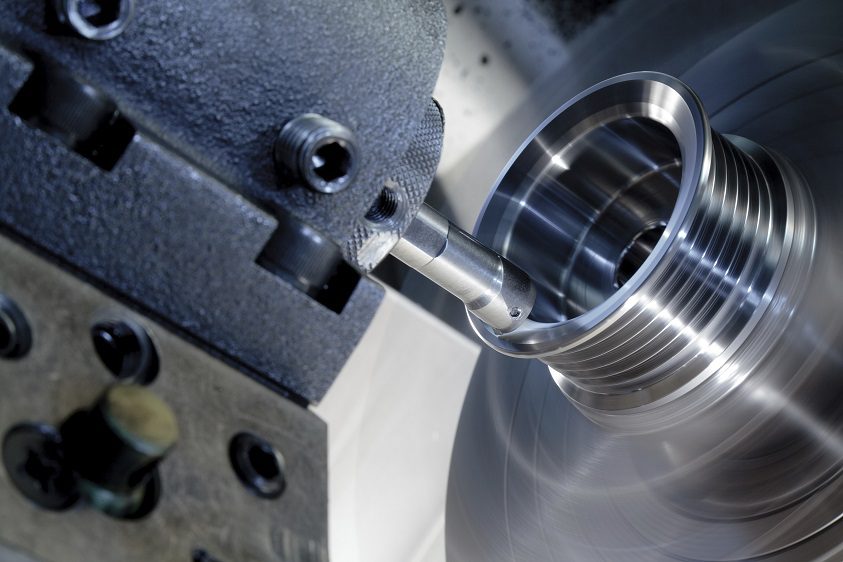

What is CNC Machining?

Conversely, CNC (Computer Numerical Control) machining is a subtractive manufacturing process that involves removing material from a solid block—such as metal, plastic, or wood—to form a part or product.

The process starts with a CAD model that is converted into a CNC program. The CNC machine then uses various tools, like drills and mills, to cut away excess material, precisely shaping the part according to the specifications in the CAD design.

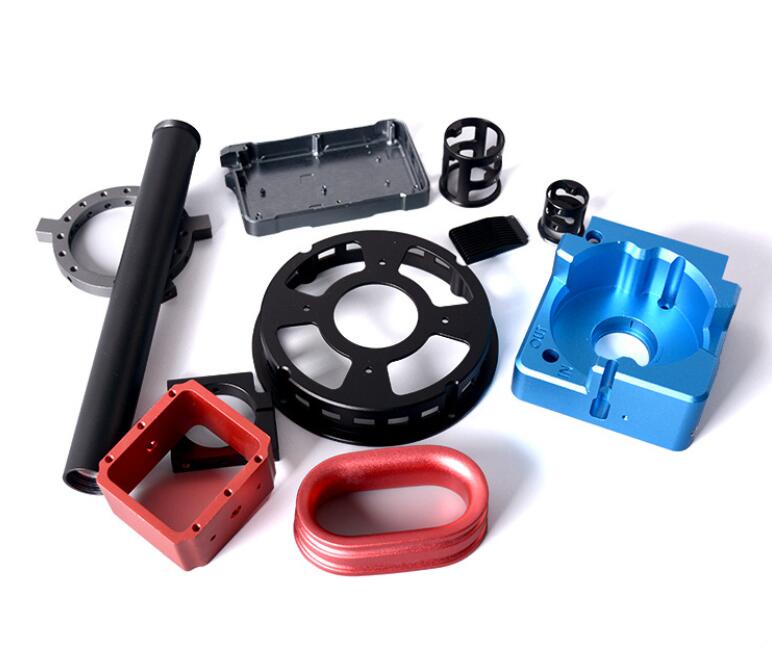

Materials Used

Key Differences and Considerations:

• Metals: Both techniques support a variety of metals. CNC machining is preferable for metals that require high structural strength and durability, whereas 3D printing is used for complex metal applications that allow for internal geometries and lightweighting through topology optimization.
• Plastics: While both methods use common plastics like ABS and Nylon, 3D printing offers more flexibility with materials like PLA and PETG that are easier to print but less commonly machined.
• Elastomers: CNC machining can handle elastomers, but the process may be less common due to the material's elasticity making it difficult to precisely remove material without deformation. 3D printing, particularly with materials like TPU, allows for creating complex, flexible structures without the complications of traditional machining processes.

Precision and Tolerances

CNC Machining Precision

CNC machining is renowned for its exceptional precision and tight tolerances. This process can achieve tolerances as tight as ±0.005 mm (0.0002 inches), making it ideal for applications requiring stringent dimensional accuracy.

CNC machines control the cutting tools with high precision, ensuring that each part of the process adheres closely to the CAD model. The stability and rigidity of the machine also contribute to its ability to produce parts consistently without deviation.

3D Printing Precision

While 3D printing has made significant advances in precision, it generally offers slightly lower tolerances compared to CNC machining. Typical tolerance levels for 3D printed parts range from ±0.1 mm (0.004 inches) up to ±0.5 mm (0.02 inches), depending on the technology used (such as FDM, SLS, or SLA) and the calibration of the printer.

3D printing is particularly beneficial for complex, intricate designs where traditional machining would be impractical or impossible, but it may require post-processing to achieve smoother finishes and tighter tolerances.

Factors Affecting Tolerances

Several factors influence the precision and tolerances achievable by each technology:

• Machine Calibration: Regular calibration is essential for maintaining accuracy. CNC machines generally maintain calibration over a longer period compared to 3D printers, which may require frequent adjustments.
• Material Properties: Materials behave differently under machine stress. Metals in CNC machining maintain consistency, while some 3D printing materials may warp or shrink.

Part Geometry: CNC machining can maintain high precision across all part geometries. In contrast, the precision of 3D printed parts can vary significantly with complexity and orientation in the build process.

Production Speed and Volume

CNC Machining: Speed and Volume Capabilities

CNC machining is highly efficient for medium to large-scale production runs. Once the setup is complete and the CNC program is dialed in, the machines can produce parts rapidly and continuously.

The speed of production can vary depending on the complexity of the part, the type of material being machined, and the specific CNC machine capabilities. For large volumes, CNC machining often becomes more cost-effective due to economies of scale, reducing the per-unit cost significantly as the number of units increases.

3D Printing: Speed and Volume Capabilities

3D printing shines in rapid prototyping and small-scale production due to its minimal setup time. The ability to go directly from a digital design to printing without the need for tooling allows for a much faster start to production. However, the actual printing speed is generally slower than CNC machining, particularly for high-volume orders. While newer and more advanced 3D printers have improved on speed, they still generally lag behind CNC machines when it comes to large-scale manufacturing.

Comparing the Two:

• Prototyping: 3D printing is superior in speed for prototyping because it can produce complex designs quickly without the need for tooling. This allows for faster iteration and development.
• Batch Production: For small to medium batches, 3D printing can be competitive, especially when producing complex or custom parts where CNC would require multiple setups or custom tools.
• High-Volume Manufacturing: CNC machining is typically more suitable for high-volume production due to its faster machining times and the ability to handle larger raw materials efficiently.

Strategic Use Cases

• CNC Machining is preferred in scenarios where high precision and large quantities are needed, such as in automotive or aerospace parts manufacturing.
• 3D Printing is advantageous for industries like medical or aerospace for creating complex, lightweight, or custom parts in smaller quantities, where the cost and time to produce molds or specialized tools would be prohibitive.

Cost Considerations

Initial Setup Costs

• CNC Machining: Typically involves higher initial costs due to the need for creating jigs, fixtures, and custom tooling. Additionally, the cost of CNC machines themselves can be substantial. These investments make CNC machining more suited for medium to high-volume production where the setup costs can be amortized over a larger number of parts.
• 3D Printing: Generally has lower setup costs since it requires no special tooling or fixtures, and the machines can be relatively less expensive than CNC machines. This makes 3D printing a cost-effective option for prototyping and low-volume production.

Material Costs

• CNC Machining: Material costs can be higher because the process uses solid blocks or sheets of material, and the subtractive nature of CNC leads to material waste (though scrap can sometimes be recycled).
• 3D Printing: Tends to use exactly the amount of material needed to create the part, with minimal waste. However, the cost of specialized 3D printing materials can be higher per volume than standard block materials used in CNC.

Labor Costs

• CNC Machining: Requires skilled operators to set up and monitor production. Although modern CNC machines can run autonomously once set up, the programming and maintenance require specialized skills, adding to labor costs.
• 3D Printing: Often requires less labor once the print jobs are set up, as the machines can run unattended. The ease of setting up a print job also means that labor costs are generally lower compared to CNC machining.

Production Speed and Volume Impact on Costs

• CNC Machining: More cost-effective at higher volumes due to the high speed of production and decreasing per-unit cost as volume increases.
• 3D Printing: While great for rapid prototyping due to its lower setup costs, the per-unit cost does not decrease as significantly with volume because the print times can be lengthy and the material costs do not scale down as dramatically.

Applications and Industry Adoption

CNC Machining Applications

CNC machining is a tried-and-true manufacturing method used in industries where durability, precision, and volume are crucial. It is widely adopted in:

• Aerospace: For parts that must withstand extreme conditions and require very tight tolerances.
• Automotive: Used for both prototyping and production of durable components.
• Medical: For creating high-precision instruments and implants.
• Manufacturing: For producing robust tooling and fixtures.
• Electronics: In the fabrication of detailed components like casings and motherboards.

3D Printing Applications

3D printing has expanded its reach and is now utilized in various fields due to its flexibility and the ability to manufacture complex designs which are not possible with traditional methods. Its key applications include:

• Medical: For custom prosthetics, implants, and anatomical models for surgical preparation.
• Aerospace: For lightweight, complex components that reduce the overall weight of aircraft.
• Automotive: For rapid prototyping of new designs and complex end-use parts.
• Construction: In creating models and even actual building components.
• Art and Design: Allows artists and designers to create complex, intricate pieces that would be difficult or impossible to produce otherwise.

Industry Adoption Factors

The choice between CNC machining and 3D printing often comes down to specific industry needs:

• Precision and Strength: Industries requiring high precision and strength tend to favor CNC machining.
• Complexity and Customization: Industries that benefit from complex geometries and high levels of customization tend to lean towards 3D printing.
• Speed and Cost: For prototypes and small runs, 3D printing is often faster and less expensive because it eliminates the need for tooling.

Advantages and Limitations

Advantages of CNC Machining

Precision and Reliability: CNC machining is highly accurate, capable of producing parts with tight tolerances and excellent repeatability, essential for industries like aerospace and automotive.

Material Versatility: CNC machines can work with a wide range of materials, including metals, plastics, and composites, which allows for greater flexibility in production.

Scalability: Once the setup is complete, CNC machining is efficient for medium to large production runs, making it cost-effective at scale.

Finish Quality: Parts produced by CNC machining typically have a high-quality surface finish and require little to no post-processing.

Limitations of CNC Machining

Costly Setup: The initial setup for CNC machining can be expensive and time-consuming, particularly for complex parts requiring multiple tool changes.

Material Waste: As a subtractive process, CNC machining can produce significant material waste, which may not be cost-effective for expensive materials.

Geometric Limitations: While CNC machining is versatile, it does have limitations in producing extremely complex geometries or internal features easily achieved with 3D printing.

Advantages of 3D Printing

Design Freedom: One of the most significant benefits of 3D printing is the ability to create complex and intricate designs that are not possible with traditional manufacturing methods.

Rapid Prototyping: 3D printing allows for quick production of prototypes, enabling faster iteration and innovation.

Cost-Effective for Low Volume: Without the need for tooling, 3D printing can be more cost-effective for small production runs and bespoke items.

Customization: It is ideally suited for producing customized or personalized products, which is a growing trend in many industries.

Limitations of 3D Printing

Material Restrictions: While there are many materials available for 3D printing, they generally do not match the strength and durability of those used in CNC machining.

Lower Speed for Mass Production: 3D printing can be less time-efficient when it comes to high-volume production compared to traditional manufacturing methods.

Surface Finish: Parts produced by 3D printing often require post-processing to achieve a smooth surface finish, as they can have a rough texture right out of the printer.

Size Limitations: Most 3D printers have a limited build volume, restricting the size of parts that can be produced in a single piece.
