Brass Metal Stampings 101



Brass metal stampings are essential components in a wide range of industries, from electronics to automotive. But what happens when precision is required? Often, it’s brass that comes to the rescue. Whether you’re looking to create durable parts for machinery or intricate designs for jewelry, brass stampings play a pivotal role. If you’ve ever wondered how these components are made and why brass is the go-to material, this post will guide you through the essentials of brass metal stamping.

Brass metal stampings involve the process of shaping brass into various forms using a die and press. This method is widely used due to brass’s excellent machinability, corrosion resistance, and aesthetic appeal. The process can create everything from tiny, complex parts to larger structural components with incredible precision.

Curious about how it all works? Let’s take a deeper dive into brass stamping, starting with the basics and building up to the more intricate details. Keep reading!

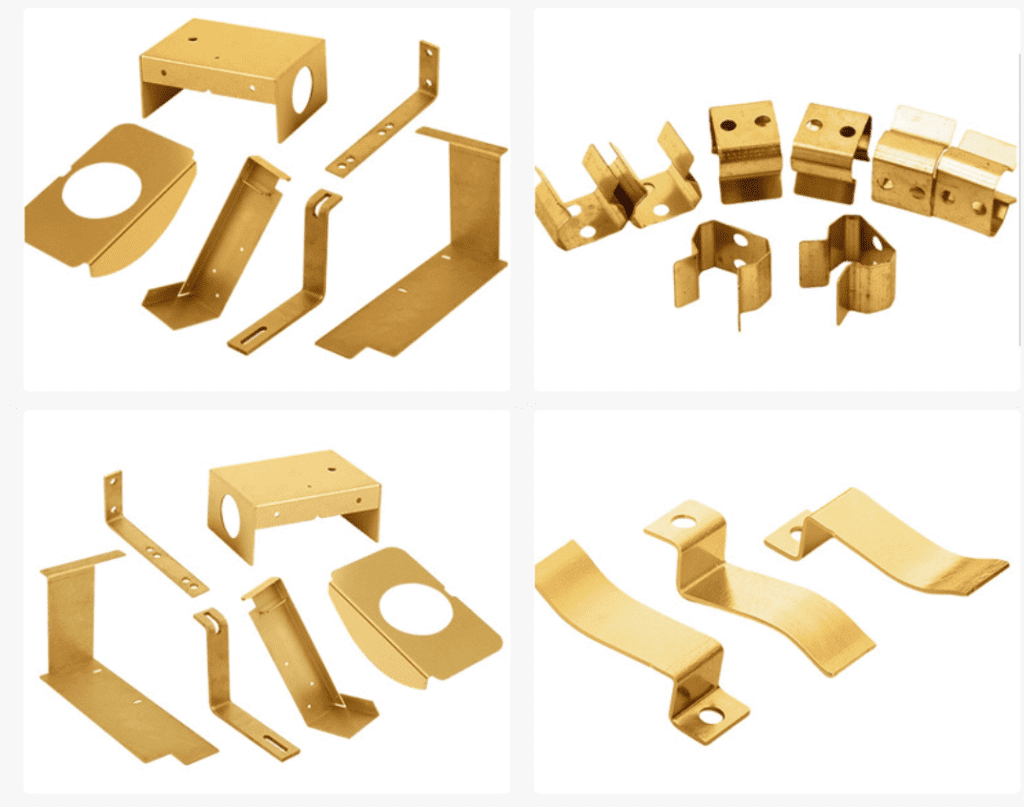

What are Brass Metal Stampings?

Brass metal stampings are parts or components created by pressing brass sheets or coils into a die to form specific shapes or designs. The process involves applying force to a piece of brass using a stamping press, which cuts, punches, bends, or forms the material into the desired shape.

The precision of brass stampings makes them perfect for industries where accuracy is crucial, such as electronics, automotive, and jewelry. Not only are they durable, but brass’s natural resistance to corrosion ensures that the stamped parts last longer in harsh environments.

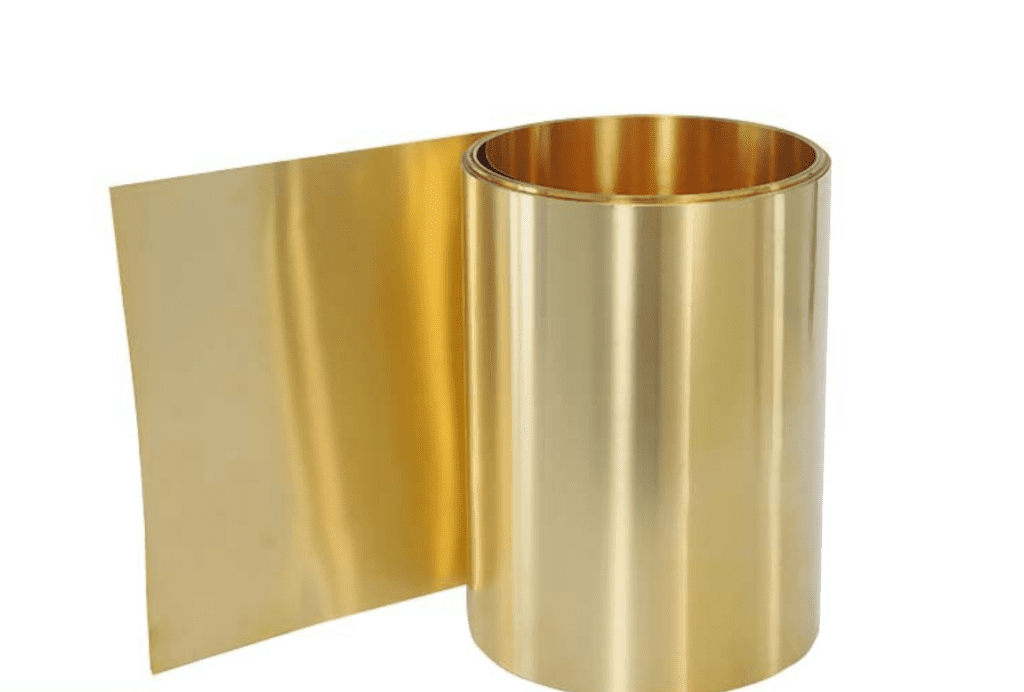

What Are the Different Brass Alloys Used in Metal Stamping?

When it comes to brass metal stamping, not all brass alloys are created equal. Different alloys offer varying properties like strength, ductility, and resistance to corrosion, depending on the application.

  1. C260 (Cartridge Brass): This is the most widely used brass alloy due to its excellent machinability, good strength, and high formability. It’s ideal for parts that need to be bent, stamped, or formed.
  2. C110 (Electrolytic Tough Pitch Brass): This alloy is highly conductive and is used primarily in electronic components and electrical connectors.

C464 (Naval Brass): This alloy offers superior corrosion resistance, making it ideal for marine and other highly corrosive environments.


Brass Alloy Composition Key Properties Applications Typical Uses Advantages
C260 (Cartridge Brass) 70% Copper, 30% Zinc Excellent machinability, good formability, moderate strength, good resistance to corrosion Electrical components, plumbing fittings, hardware, musical instruments Brass plates, strips, connectors, automotive parts High ductility, easy to machine, good for stamping and forming
C110 (Electrolytic Tough Pitch Brass) 99.9% Copper, trace elements of oxygen High electrical conductivity, good corrosion resistance, low strength Electrical applications, wiring, connectors, power generation equipment Electrical conductors, connectors, terminals Superior electrical conductivity, excellent for electronic components
C464 (Naval Brass) 60-63% Copper, 1.0-1.5% Tin, 0.5-1.5% Zinc High corrosion resistance, good strength, moderate machinability Marine components, industrial equipment, heat exchangers, valves Propellers, marine pumps, shafting, pumps Superior electrical conductivity, excellent for electronic components
Made with HTML Tables

Why Choose Brass for Metal Stamping?

First and foremost, brass offers excellent machinability—it’s easier to cut, form, and finish compared to many other metals. Whether you’re stamping intricate designs or mass-producing parts, brass delivers high precision with minimal tool wear.

The corrosion resistance of brass is another major advantage. It holds up well in both indoor and outdoor environments, making it ideal for applications ranging from plumbing fittings to electrical components that may be exposed to moisture or harsh conditions. Brass’s natural resistance to tarnishing also helps keep components looking new, even after years of use.

Moreover, brass is an alloy of copper and zinc, meaning it strikes a balance between strength and flexibility. It’s both durable and ductile, making it the perfect material for parts that need to be shaped or bent without cracking or breaking. This is especially valuable when dealing with small, intricate parts that require complex stamping.

Lastly, aesthetic appeal is a factor not to be overlooked. Brass’s warm, golden hue makes it popular in decorative applications like jewelry, home fixtures, and hardware. So, if you’re looking for a material that combines strength, functionality, and visual appeal, brass is the way to go!

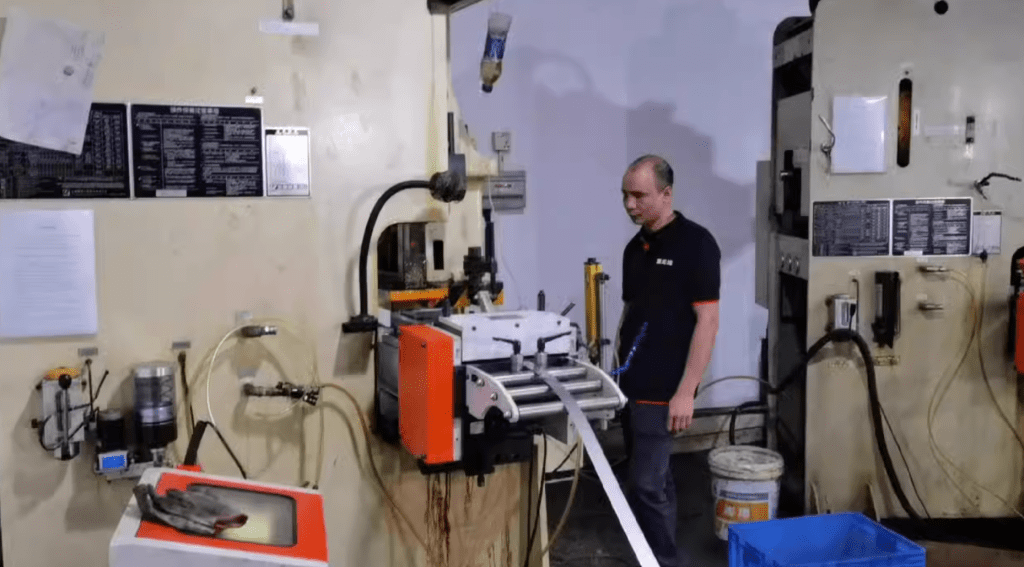

What Machines Are Required to Make a Brass Stamping?

Creating a brass stamping requires a combination of specialized machines that work together to shape and cut the brass into precise forms. The main machines involved in the brass stamping process include:

  1. Stamping Press (Hydraulic or Mechanical):
    The core machine for any metal stamping operation. It applies the force necessary to punch, cut, or form the brass sheet into the desired shape. Hydraulic presses are more versatile for deeper or more complex shapes, while mechanical presses are faster and more efficient for simpler, high-volume stamping.
  2. Die Sets (Tooling):
    Dies are the molds used inside the stamping press to shape the brass. These can be single-stage dies for simple cuts or multi-stage dies for more complex parts. The die set is crucial for ensuring the part comes out with the exact dimensions and shape needed.
  3. Shearing Machine:
    In many cases, brass sheets need to be cut into smaller blanks before the stamping process begins. A shearing machine is used to cut the brass to the right size before it enters the press.
  4. Punching Machine:
    For tasks like creating holes or other internal features within the brass part, a punching machine is used. It delivers a sharp punch that makes precise holes, slots, or other cutouts.
  5. Bending Machine:
    For more complex brass parts that require bending or forming, bending machines are used. These machines apply pressure to shape the brass into curves or angles without compromising its integrity.
  6. Trimming Machine:
    After the stamping process, trimming machines may be used to remove excess material from the edges of the part, giving it a clean and polished finish.
  7. Press Brake:
    For parts that need specific bending or folding, a press brake machine uses a die and punch system to shape the brass, typically for more precise angles and curves.

What Does Brass Stamping Process Involve?

1. Blanking Brass

Blanking is the first step in many stamping operations, where a flat sheet of brass is cut into the required size and shape, known as a “blank.” This blank is the raw material that will undergo further processing. The stamping press and die work together to cut out the shape, typically in the form of circles, squares, or custom designs, ready for the next steps.



2. Piercing Brass

Piercing involves creating holes or cutouts in a brass blank. A punch and die system is used to punch through the brass, leaving a clean, precise hole. Piercing can be done to create small holes for screws, rivets, or other features that require an opening.



3. Drawing Brass

Drawing is the process of forming a flat piece of brass into a three-dimensional shape, such as a deep-drawn cup or container. A punch and die are used to draw the brass blank into the die cavity, stretching it into a desired shape. This process requires careful control to avoid wrinkles or thinning of the material.



4. Bending Brass

Bending is used to form angular shapes in brass parts. A punch and die apply force to bend the brass along a specific axis, creating angles or curves. The material’s ductility allows it to be bent without cracking, making it perfect for parts that require precise geometric shapes or right-angle bends.



What Are the Common Post-Stamping Processes for Brass Stamping Parts?

Once brass stamping parts are created, several post-stamping processes are often required to refine the part, improve its functionality, and ensure it meets specific quality standards. Here are a few common post-stamping processes:



Deburring


Deburring is the process of removing sharp edges or burrs left behind after the stamping operation. These burrs can affect the part’s functionality, appearance, and safety. Techniques like grinding, tumbling, or using specialized deburring tools help smooth the edges for a cleaner finish.



Surface Finishing


Brass parts often undergo surface finishing to improve appearance and protect against corrosion. This can include processes like polishing, brushing, or plating (e.g., chrome or nickel plating). The right finish not only enhances the part’s visual appeal but also extends its lifespan in challenging environments.



Heat Treatment


Heat treatment processes, such as annealing, can be applied to brass stampings to improve their mechanical properties. Annealing softens the brass, making it more workable for subsequent processes or improving its ductility for specific applications. It can also relieve internal stresses from the stamping process, ensuring better part performance.



Assembly and Welding


After stamping, some parts may need to be assembled or welded together to form larger, more complex components. This is common for parts used in the automotive or electronics industries, where multiple stamped parts need to be joined to create a final product. Welding or fastening ensures the parts function as a single unit.

What Is the Difference Between Hot and Cold Brass Stamping?

The key difference between hot and cold brass stamping lies in the temperature of the brass during the stamping process, which significantly affects the material’s behavior and the final part’s characteristics.



Cold Brass Stamping

In cold stamping, brass is used at room temperature, meaning it retains its natural hardness and strength throughout the process. Cold stamping is ideal for making parts that require high precision and tight tolerances, as the brass retains its shape well without distortion. This method is typically faster and more efficient, with less energy required compared to hot stamping.

  • Benefits: Precision, less energy consumption, faster production.
  • Common Uses: Small, intricate parts, such as connectors, fasteners, and electronics components.



Hot Brass Stamping

In hot stamping, brass is heated to a higher temperature (typically above 300°C) before being stamped. The heating process softens the brass, making it more malleable and easier to form into complex shapes. Hot stamping is often used for thicker or larger parts that would be difficult to form using cold stamping. The process also helps reduce the wear on tooling and machinery.

  • Benefits: Ability to form thicker and more complex parts, reduced tool wear.
  • Common Uses: Larger, thicker components like automotive parts or industrial machinery parts.



Key Differences:

  • Temperature: Cold stamping is done at room temperature, while hot stamping involves heating the brass.
  • Precision: Cold stamping provides higher precision, while hot stamping is used for forming more complex shapes.

Material Properties: Hot stamping makes the brass softer and more malleable, while cold stamping retains the material’s original strength and hardness.

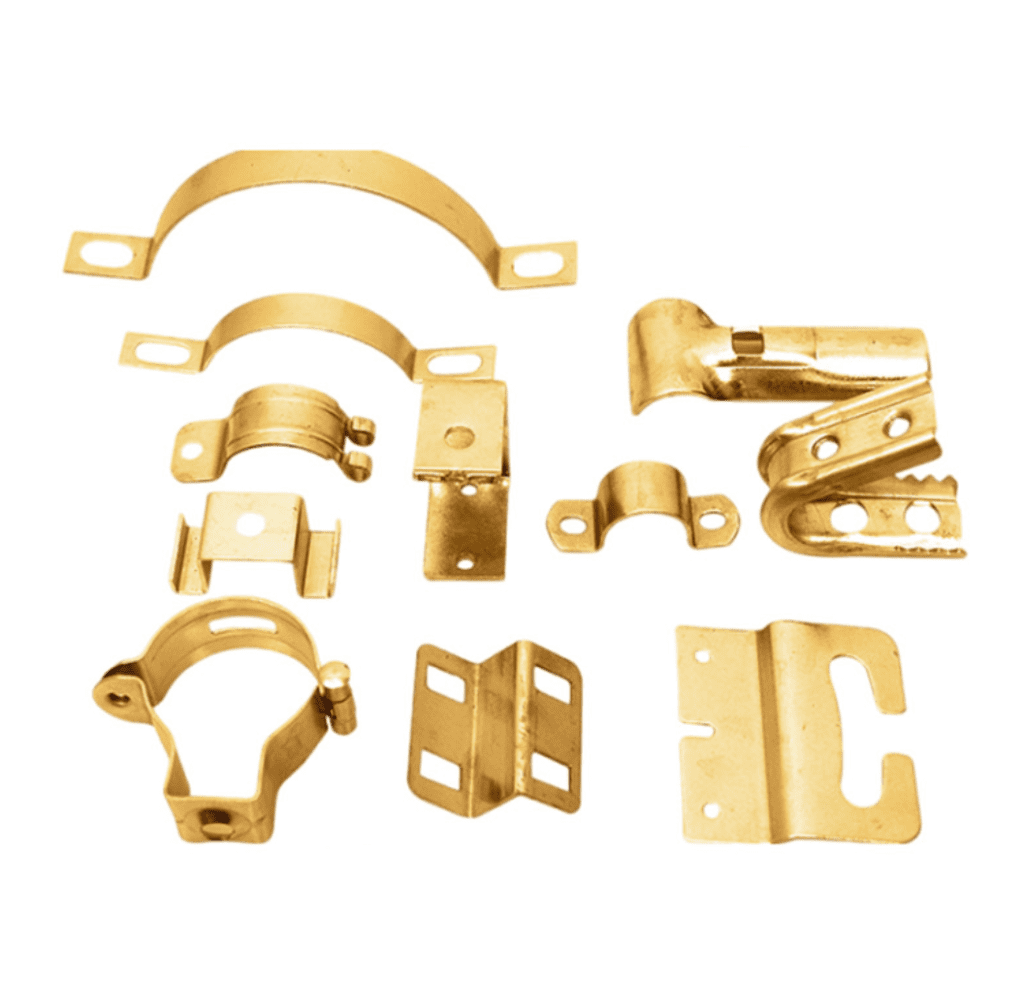

What Are the Key Applications of Brass Metal Stampings?

  1. Electrical connectors and terminals
  2. Automotive components (e.g., brackets, clips, connectors)
  3. Plumbing fittings
  4. Computer and electronics components
  5. Jewelry and decorative items
  6. Musical instrument parts
  7. Aerospace components
  8. Industrial machinery parts
  9. Home appliances hardware
  10. HVAC components
  11. Precision fasteners and screws



Why Do You Need a Tool and a Die in Brass Metal Stamping?

A tool and a die are essential in brass metal stamping because they shape, cut, and form the brass sheet into the desired part.

  • Tool: The tool refers to the equipment or device used to perform the specific stamping operation, like a punch or press. It applies the force needed to shape the brass. Tools can include punches, hammers, and dies for cutting, bending, or piercing.
  • Die: The die is the mold or template that determines the final shape of the brass part. It is designed to fit the specific shape and dimensions required for each part. The die holds the brass sheet in place during the stamping process and ensures consistent, high-quality results.

Together, tools and dies work to ensure that the brass is shaped with precision, whether you’re cutting, bending, or forming intricate designs. Without them, achieving the accuracy and complexity required for metal stamping would be extremely difficult.

Conclusion

If you’re looking for high-quality brass stamping services or have any questions about our processes, feel free to reach out. Our expert team is ready to assist you with your brass stamping needs, ensuring precision and reliability in every part. Contact us today to get started!

FAQs

Is brass suitable for high-temperature applications?
While brass performs well in many environments, it is not ideal for extremely high-temperature applications. For higher heat resistance, other alloys like stainless steel might be more suitable.



Can brass stamping parts be welded?
Yes, brass parts can be welded, but they require specific welding techniques, such as brazing or TIG welding, to ensure a strong bond without compromising the material’s properties.



What is the typical thickness of brass used in stamping?
The thickness of brass used for stamping typically ranges from 0.1 mm to 6 mm, depending on the application and the complexity of the part being stamped.

//]]>
