Mastering Bead Blasting: A Comprehensive Guide to Bead Blast Surface Finish

CNC machining

The world of manufacturing is a vast, complex one, and surface finishing plays a pivotal role in the production process. The surface finish of a component affects not only its appearance but also its functionality and longevity. From precision stamping services to intricate CNC machining, a flawless finish is a must. One such finish that offers impeccable aesthetics and improved component performance is the bead blast finish.

CNC machining

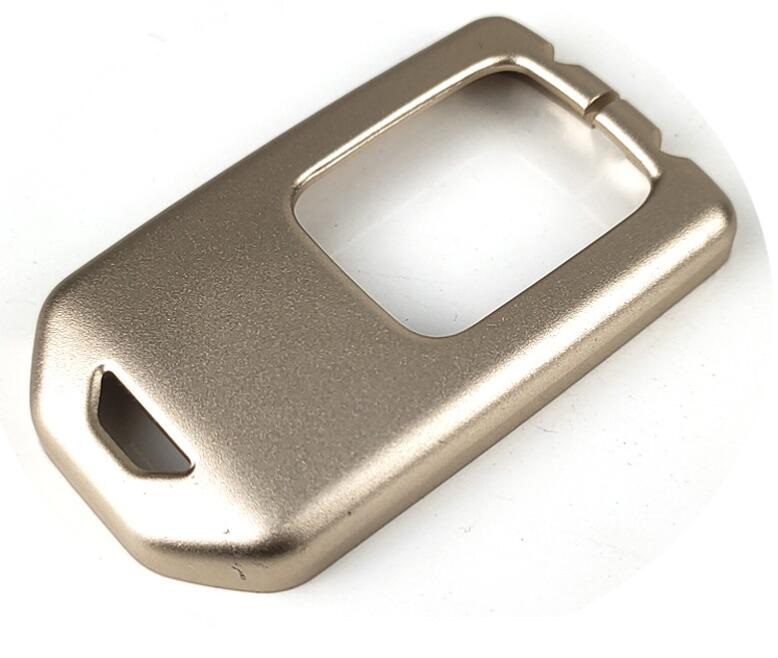

Bead Blasting: An Overview

Bead blasting is a surface finishing technique that uses fine glass beads as a blasting medium. Unlike other surface finishing techniques, bead blasting does not alter the dimensions of the workpiece; instead, it provides a clean, matte finish that is both visually appealing and conducive to subsequent finishing processes, whether it involves anodizing, electroless plating, or powder coating.

The bead blasting process finds a broad spectrum of applications, particularly in industries like automotive, aerospace, medical, and firearm manufacturing. With careful control over parameters such as the size and hardness of the beads, bead blasting can be adapted to suit a wide range of materials and purposes, from stainless steel to delicate plastic components.

The versatility of bead blasting sets it apart from other blasting techniques. Unlike more abrasive processes such as sand blasting, bead blasting maintains the integrity of the original surface, minimizing the risk of damage. As such, it represents an invaluable tool in the modern manufacturer’s arsenal.

The Mechanics of Bead Blasting

The bead blasting process operates on a relatively simple principle: the aggressive yet careful throwing of bead-shaped media against a workpiece. The bead blast finish is achieved by accelerating these fine glass beads at high pressure against the surface of the component. This process can be finely tuned to cater to a variety of materials, from delicate plastic and wood to robust metals like stainless steel.

What sets bead blasting apart from other abrasive blasting techniques is the non-destructive impact of the glass beads. When these beads collide with the surface, they do not cut into it like sand or other sharp media. Instead, the beads’ energy is diffused over a larger area, resulting in a gentle cleaning and peening action that yields a smooth, matte finish without altering the workpiece’s precise measurements.

This finish is not only aesthetically pleasing but also functional. For instance, a bead blast finish on stainless steel creates a homogenous, non-reflective surface that minimizes fingerprints and scratches – a crucial consideration in sectors where hygiene and ease of maintenance are of paramount importance, such as medical devices or kitchen appliances.

The mechanics of bead blasting allow for a unique balance of gentleness and effectiveness, providing manufacturers with a versatile tool to improve the quality and functionality of their components. Through the careful management of blasting parameters, this technique can be customized to achieve desired results on a wide variety of materials, making it an invaluable part of the modern manufacturing process.

Essential Tools for Achieving a Bead Blast Finish

Creating a high-quality bead blast finish requires not only an understanding of the mechanics of bead blasting, but also the right equipment. There are two key aspects to consider in this context: the bead blaster cabinets and the blasting material – in this case, glass beads.

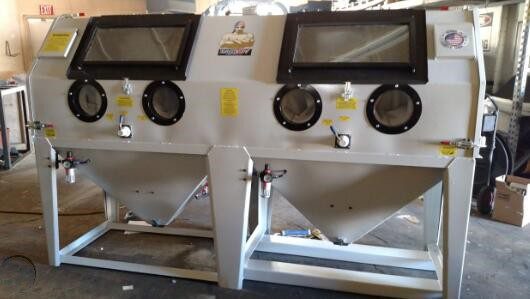

A. Bead Blasting Cabinets

CNC machining

The primary tool used in bead blasting is the cabinet, often referred to as a bead blasting machine. Much like a DIY bead blaster, commercial-grade bead blaster cabinets are designed to contain the bead blasting process, preventing dust and debris from spreading. This promotes not only cleanliness but also safety in bead blasting.

A top-notch cabinet features a robust structure and a steady base to withstand the pressure generated during the bead blasting process. Additionally, impeccable cabinet sealing is essential to prevent media leakage and enhance efficiency.

Equipped with a protective viewing window, these cabinets allow operators to monitor the bead blasting process in real time, making adjustments as necessary to achieve the desired surface finish. They also often include special gloves designed to safely handle the workpiece during bead blasting.


B. The Role of Glass Beads

The second critical component in achieving a bead blast finish is the blasting material. For bead blasting, this typically means glass beads. These beads are selected for their hardness and shape, which allow them to effectively clean and peen a surface without damaging it.

Glass beads come in a variety of sizes, or “grits,” which can be selected based on the desired finish. For example, larger beads might be used for a coarser finish or for more aggressive cleaning, while smaller beads would be used to achieve a smoother, more delicate finish. The glass bead media size chart provides guidance for selecting the appropriate bead size for a given application.

Choosing the right glass bead media for the material being processed – be it bead blasting stainless steel, bead blasting titanium, or bead blasting aluminum – can make a significant difference in the final outcome. As such, understanding the properties and applications of different glass beads is crucial for anyone looking to achieve a high-quality bead blast finish.

The Pros and Cons of a Bead Blast Finish

CNC machining

While bead blasting certainly boasts numerous benefits, like any process, it’s not without its limitations. For manufacturers considering adopting this technique for their surface finish needs, understanding both the advantages and drawbacks is essential.


Pros of Bead Blast Finish

  1. Safe Usage: Bead blasting is generally safer than other abrasive blasting methods like sandblasting or shot blasting. This is because glass beads are less likely to fracture into sharp pieces upon impact, reducing the risk of injury to operators. Moreover, the dust generated during bead blasting is significantly less hazardous than other types of blasting media dust.
  2. Eco-friendliness and Recyclability: Glass beads used in bead blasting are environmentally friendly. They’re made from recycled glass and can be used multiple times before they lose their effectiveness, reducing waste.
  3. Alternative to Sandblasting: The uniform shape and hardness of glass beads result in a more consistent and controlled abrasion compared to sandblasting, making it a preferable choice for delicate workpieces.
  4. Absence of Paint-Adherence Profile: Unlike sandblasting, bead blasting does not create a profile on the surface for paint to adhere to. This can be advantageous in applications where a paint or coating is not required.


Cons of Bead Blast Finish

  1. Limited Capacity for Surface Coarsening: If the goal is to significantly roughen a surface for improved adhesion of a coating, bead blasting might not be the best option. Sandblasting or other abrasive methods are better suited for this task.
  2. Removal of Oxide Layer Demands Different Abrasives: Bead blasting is not typically the best choice for removing heavy rust or oxide layers. More aggressive techniques like sandblasting or plastic abrasive blasting are usually more effective for this purpose.

Various Uses of Bead Blast Finishing

Bead blasting finds extensive usage across a diverse range of industries owing to its ability to deliver a clean, satin-like finish without altering the dimensions of a workpiece. This type of surface finish is not only aesthetically pleasing but also enhances the functional aspects of the treated parts.

In the realm of automotive components, bead blasting is used to refurbish parts and prepare them for coating. As it removes dirt, oil, and minor surface imperfections, bead blasting ensures that paint or other coatings will adhere properly to the automotive parts, improving their durability and resistance to wear.

In the aerospace sector, bead blasting is commonly used to treat parts like turbine blades, landing gear components, and other structural elements. By removing built-up contaminants and revealing the base material, bead blasting helps in maintaining the integrity and lifespan of these high-stress components.

In the world of firearms, bead blasting plays a vital role in both manufacture and restoration processes. The technique is used to prepare gun barrels and other parts for bluing or parkerizing – processes that provide a layer of protection against rust.

The medical industry is another major field where bead blasting finds utility. This process is employed to create a smooth and homogenous finish on various medical devices. These range from surgical instruments to implants, which require a high degree of precision and cleanliness.

The food and beverage industry also benefits from bead blasting. Stainless steel machinery used in these industries often undergo bead blasting to ensure hygienic conditions, as the process effectively removes residues and prevents bacterial growth.

Bead blasting is even used in the production of watches. The cases and bands of many high-end wristwatches undergo bead blasting to achieve an attractive, matte finish that is resistant to scratches.

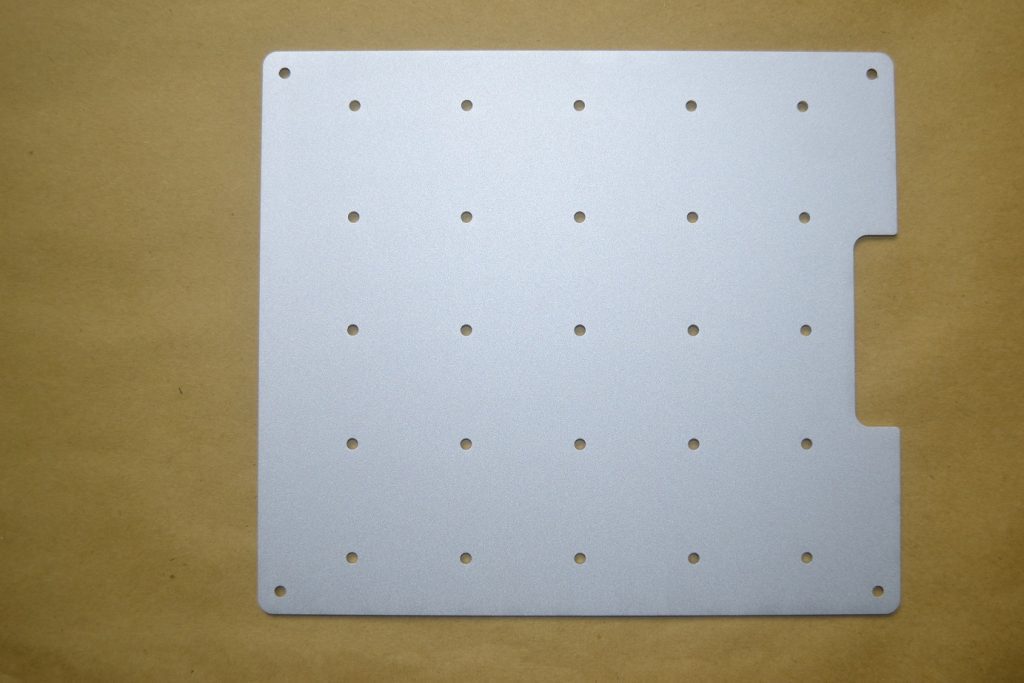

Comparing Bead Blasting and Sand Blasting: Spotting the Distinctions

CNC machining

As we delve further into the world of abrasive blasting techniques, it is crucial to draw a comparison between bead blasting and one of its widely known counterparts – sandblasting. Despite serving similar purposes, the differences in methodologies, materials used, and safety considerations are worth understanding.

At the heart of the methodology, both bead blasting and sandblasting employ the same fundamental process – they project abrasive media at a high velocity towards a workpiece to achieve the desired surface finish. However, while bead blasting uses glass beads as the blasting media, sandblasting utilizes sand particles.

The type of media used has a substantial impact on the outcome of the blasting process. Glass beads, used in bead blasting, create a smooth, uniform, and attractive matte finish, enhancing the aesthetic value of the workpiece. On the other hand, sandblasting, using sand as the abrasive medium, tends to produce a rougher finish, and is typically employed when the goal is to remove larger amounts of material, such as rust, scale, or old paint.

Safety considerations also vary between these two blasting methods. Although all forms of blasting should be performed with proper personal protective equipment, sandblasting carries additional risks due to the silica content in sand. Inhalation of silica dust can cause silicosis, a serious lung disease. In contrast, the use of glass beads in bead blasting poses fewer health risks, making bead blasting a safer alternative.

Choosing between bead blasting and sandblasting ultimately depends on the specific requirements of the task at hand. For a gentler treatment and a finer finish, bead blasting is the way to go. However, for jobs requiring more aggressive material removal, sandblasting may be a more suitable option. Understanding these distinctions is key to achieving the best possible finish and ensuring the safety of those involved in the process.

Ensuring Excellence: Key Considerations for High-Quality Bead Blast Outcomes

Achieving superior quality in bead blast outcomes requires meticulous attention to a multitude of factors. The following are some key considerations that play a pivotal role in ensuring high-quality bead blast finish:


A. Specifications for Media and Grit Dimension: The media type and its size, often referred to as grit dimension, largely determine the finish’s final look. Smaller glass beads will result in a smoother finish, while larger ones will deliver a more textured effect. Understanding your desired surface finish and matching it with the correct media size is essential for an optimal outcome.

B. Attention to Surface Unevenness: Bead blasting can’t entirely mask pre-existing surface flaws or unevenness. Instead, it might exacerbate them by making them more noticeable. Thus, any visible surface irregularities should be addressed before the bead blasting process.

C. Guidelines for Masking Crucial Aspects: Certain areas or components of the workpiece may need to be protected from the blasting process to avoid damage or unnecessary wear. Masking these areas with suitable protective materials is necessary to maintain the integrity of the piece.

D. Perfect Pressure Settings for Bead Blasting: The blasting pressure must be set carefully. Too high a pressure could warp the surface or remove more material than desired, while too low a pressure may result in an incomplete or inconsistent finish. Finding the ideal pressure setting is critical to obtaining a high-quality bead blast finish.

E. Pre-Blasting Surface Preparation Steps: The condition of the workpiece before blasting can greatly influence the results. A clean, dry surface free from oils or other contaminants is conducive to a uniform bead blast finish. Thus, proper cleaning and drying should be part of the surface preparation process.


Achieving a flawless bead blast finish requires the right blend of knowledge, equipment, and attention to detail. Incorporating these considerations into your bead blasting process will help you attain a high-quality, professional-level finish every time.

Top Tips for Achieving the Ideal Bead Blast Finish

The art of bead blasting is nuanced, demanding a keen understanding of materials, techniques, and machines. Here are some essential tips for achieving the ideal bead blast finish:


    1. Correct Use of Pressure: Contrary to popular belief, more pressure does not equate to a better finish. Rather, using lower pressures can yield superior results. High pressures risk embedding the glass beads into the surface, which can affect the material’s properties.
    2. Choosing the Right Glass Bead Size: The size of the glass bead blasting media you use is pivotal to the outcome. For more delicate parts, smaller bead sizes are ideal. For robust materials, larger bead sizes can be more effective.
    3. Proper Surface Preparation: Before bead blasting, the workpiece should be clean and free from contaminants. Any oil, dirt, or previous coatings can impact the efficacy of the bead blasting and the quality of the finish.
    4. Optimal Machine Settings: Understanding the best settings for your bead blasting machine can drastically affect the results. The right balance of air pressure, distance from the workpiece, and the angle of attack can make all the difference.
    5. Use of Sharp Cutting Abrasives for Rust and Oxide Removal: Before bead blasting, it might be necessary to remove any rust or oxide layer. For this, sharp cutting abrasives, such as aluminum oxide, are more effective than glass bead blasting.
    6. Regular Maintenance of Bead Blaster Cabinets: To ensure a consistent bead blast finish, maintenance of your bead blaster cabinets is essential. Regular cleaning, inspection, and replacement of worn-out parts can keep your machine in top condition.
    7. Safety Precautions: Always prioritize safety when performing bead blasting. Use the right personal protective equipment, and follow the correct procedures to protect yourself and those around you.


Whether you’re a DIY enthusiast or a seasoned professional, these bead blasting tips can help you achieve the perfect bead blast finish on your projects. However, remember that practice is the key to perfection. Over time, as you gain experience with different materials and equipment, your bead blasting skills will naturally improve.

The Excellent Finishing Services of Worthy Hardware

In the world of surface finishing, Worthy Hardware stands as a beacon of quality, commitment, and excellence. Our company’s success is rooted in our unfailing dedication to delivering only the best when it comes to bead blast finishes.

Through the years, we have acquired an unparalleled mastery of bead blasting, consistently producing finishes of exceptional quality. Using the finest glass bead blasting media, we ensure a flawless, evenly textured surface finish on all treated parts. We are equipped with state-of-the-art bead blaster cabinets and follow a meticulous surface preparation process for optimum results.

We recognize that each project is unique, necessitating distinct treatment processes. Our in-depth knowledge of media blasting, including sandblasting, shot blasting, and plastic abrasive blasting, enables us to select the most appropriate technique for your needs. We handle a wide variety of materials, from bead blasting aluminum to bead blasting stainless steel and even bead blasting titanium.

Frequently Asked Questions about Bead Blast Finish

1. What is Bead Blasting?

Bead blasting is a process in which tiny glass beads are propelled at a surface using a blasting machine to clean or smooth the surface without causing any damage. It’s a form of media blasting that’s gentler than alternatives like sandblasting.


2. What Materials Can Bead Blasting be Used On?

Bead blasting can be used on various materials, including metals like aluminum, stainless steel, and titanium. Non-metals such as plastics and rubber can also be bead blasted.


3. Is Bead Blasting Safe?

Safety in bead blasting is of utmost importance. The process itself is safe as long as appropriate safety measures are followed, including wearing personal protective equipment and operating bead blasting equipment according to manufacturer instructions.


4. Can Bead Blasting Remove Rust and Oxide Layers?

While bead blasting can remove light rust and thin oxide layers, it may not be the best choice for heavy rust or thick oxide layers. More aggressive methods like using sharp cutting abrasives are more effective for such cases.


5. Does Worthy Hardware offer Bead Blasting Services?

Yes, Worthy Hardware provides excellent bead blasting services with customizable metal finishing procedures to cater to a wide range of applications.


6. Can Bead Blasting Cause Damage to Parts?

When done correctly, bead blasting should not cause damage to parts. However, excessive pressure or improper techniques can potentially harm the surface. Thus, it’s important to follow the correct bead blasting procedures.

Wrapping Up

In conclusion, bead blasting stands out as an efficient and effective method for surface preparation and finishing. The use of glass beads in blasting offers a unique combination of gentle yet effective treatment, enhancing the appearance and durability of a multitude of components across various industries.

Remember, the secret to an outstanding bead blast finish lies in the details – the right media, pressure, technique, and most importantly, the willingness to experiment and learn. With these elements in place, the possibilities are virtually limitless.

If you have any more questions or would like to further explore how bead blasting can enhance your manufacturing processes, feel free to reach out. After all, in the world of manufacturing, the pursuit of precision and excellence never ends. Happy Blasting!
