What is CNC Precision Machining? A Complete Guide

In the vast world of manufacturing, CNC precision machining plays an indispensable role. It’s a process leveraged across numerous industries, used to create parts with high precision and accuracy. CNC precision machining is the core of many operations, enabling production of intricate parts with incredible detail. The complexity and precision of components created with this method cannot be achieved with traditional machining techniques.

In the world of CNC precision manufacturing, a precision CNC machine can produce a multitude of parts with strict tolerances. Industries such as aerospace, electronics, military, medical, agriculture, and lighting, among others, heavily rely on CNC precision machining to deliver products that adhere to the highest standards of quality and precision.

Understanding CNC Precision Machining



A. What is CNC Precision Machining?

CNC precision machining stands for Computer Numerical Control precision machining. It is a manufacturing process where pre-programmed computer software dictates the movement of factory machinery and tools. This process allows for the creation of complex three-dimensional shapes that would be almost impossible to achieve with manual machining.

CNC precision machining not only enables the machining of precision parts but also offers incredible repeatability, speed, and safety. This aspect of CNC precision manufacturing ensures parts are produced exactly the same every time, providing a level of quality and consistency that is unmatched by manual methods.



B. Key Components of CNC Machines

A CNC precision machine comprises several critical components.



  1. Controller: The computer that feeds the program into the machine. The commands direct the machine parts to execute precise movements.
  2. Machine Tools: These include drills, lathes, mills, grinders, routers, and other tools used to cut and shape the material.
  3. Drive System: This system consists of amplifiers, electric motors, and ball lead screws that move and control the machine parts.



The interaction between these components enables the CNC precision machine to function effectively, resulting in high-quality outputs like those from CNC Precision Machine Inc.



C. The Mechanics of CNC Precision Machining

The process of CNC precision machining begins with a digital 3D design of the part to be manufactured, created using Computer-Aided Design (CAD) software. The CAD file is then converted into a CNC program, essentially a step-by-step guide for the machine to create the part.

The CNC precision machine follows the instructions on the program, precisely controlling the movement of the tools to shape the material. The machine can move the tools in multiple directions, allowing for the creation of complex parts with high accuracy and repeatability.

Types of CNC Precision Machining

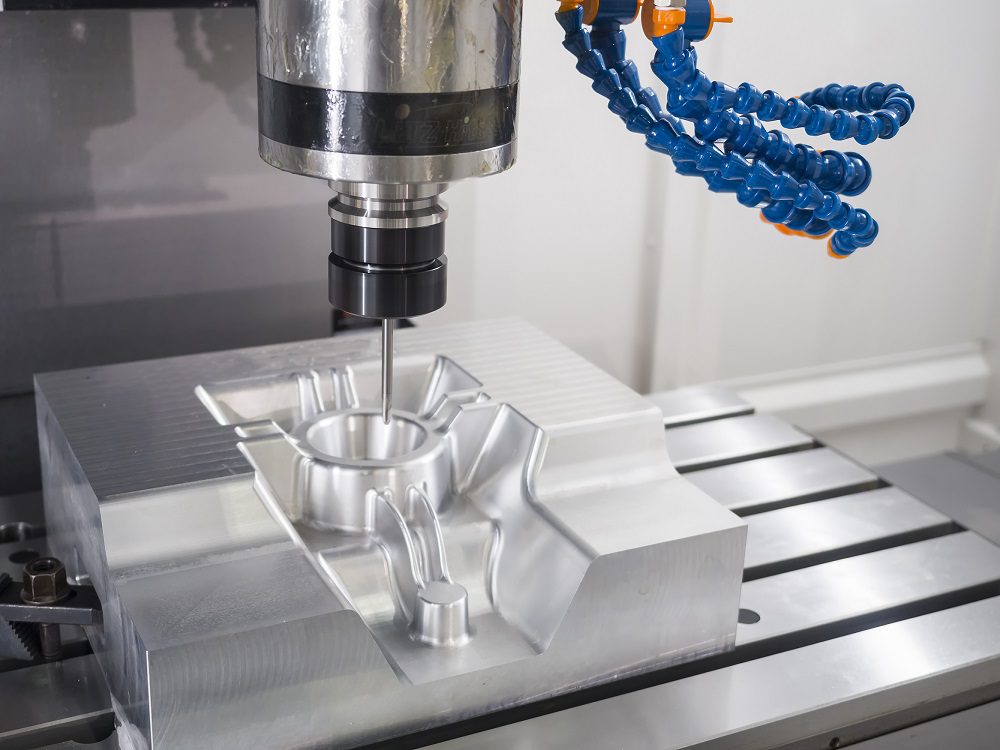

A. CNC Milling

CNC Milling is a CNC precision machining process where a cutter removes material while it moves in different directions along various axes. This versatile technique can produce customized parts with high precision, making it popular in several industries. CNC milling is perfect for producing complex shapes and designs with the help of multi-point cutting tools.

CNC Milling Parts Manufacturers like Worthy Hardware use high-tech milling machines to produce components that meet specific tolerances and requirements. The process’s adaptability allows it to create everything from simple shapes to intricate parts used in advanced machinery.

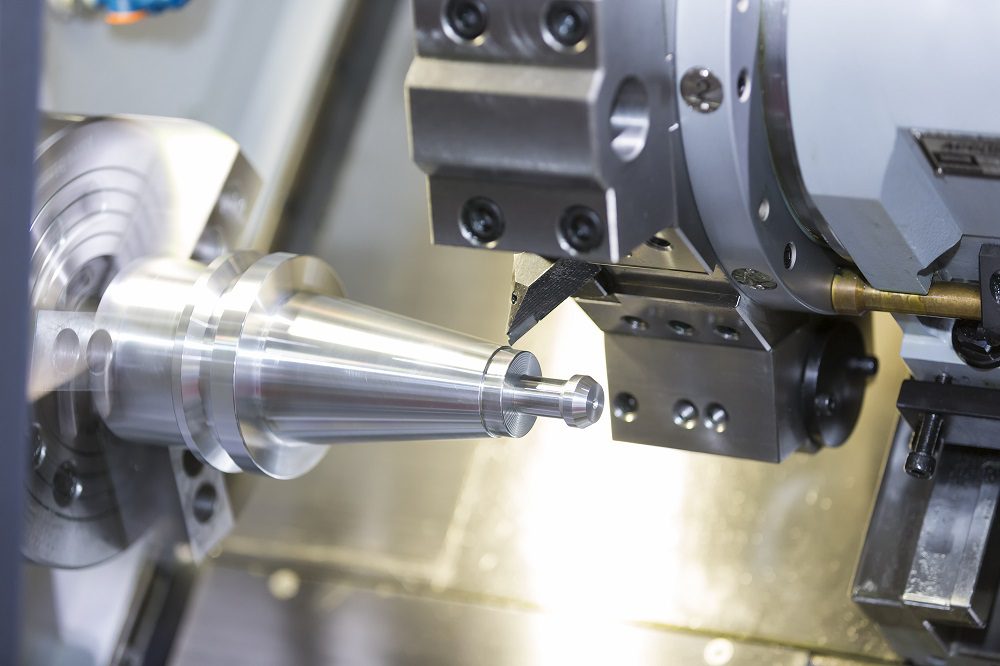

B. CNC Turning

CNC Turning is another common CNC precision machining method. In this process, a cutting tool moves in a linear fashion while the workpiece rotates. This action allows the creation of cylindrical and round shapes like tubes and shafts.

CNC turning provides excellent surface finish and accuracy. Many precision CNC services employ this method due to its ability to handle various materials and achieve tight tolerances.

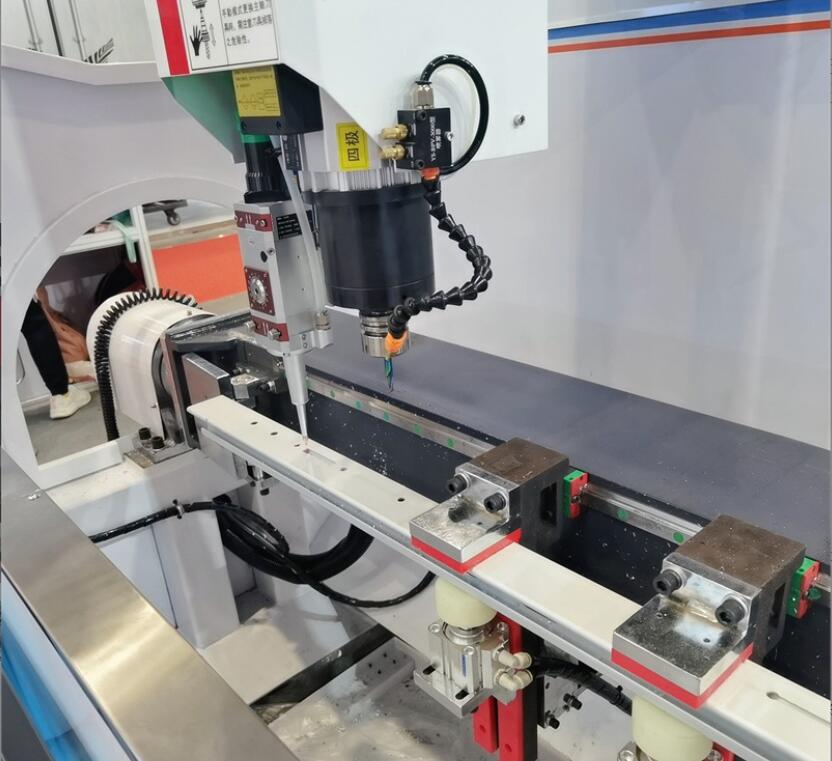

C. CNC Drilling

Drilling is another CNC precision machining operation where circular holes are produced in a workpiece. The process can be done in various ways, such as center, deep hole, gun, and trepanning drilling, among others. CNC drilling provides extreme accuracy and efficiency in creating holes of different sizes and depths.

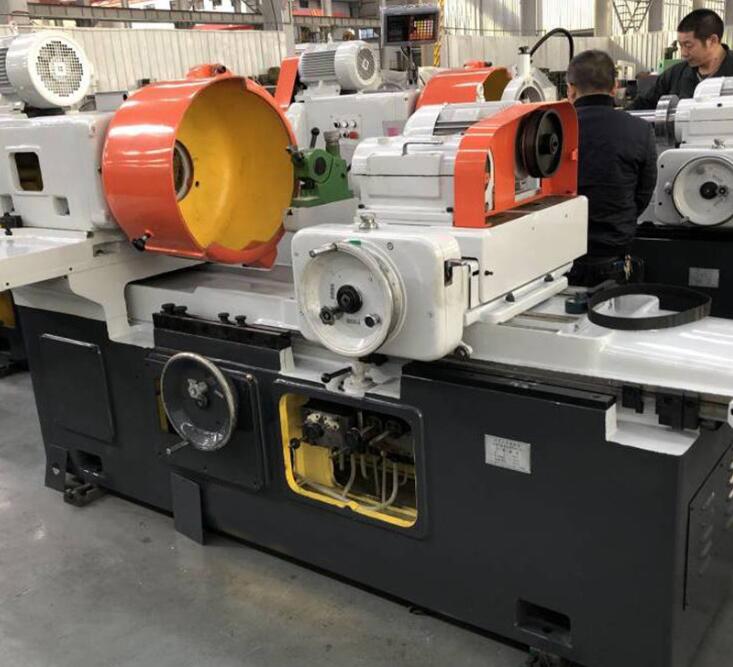

D. CNC Grinding

CNC Grinding is a precision machining process that uses an abrasive wheel to remove material from a workpiece’s surface. This CNC precision machining method can be used to create extremely fine finishes and tight tolerances on a variety of materials, making it an excellent choice for high-precision applications.

Grinding techniques such as CNC ID grinding machine operation, high precision surface grinder operation, and CNC surface grinder machine operation are widely used across various industries.



E. Other Types of CNC Precision Machining

There are several other types of CNC precision machining methods, including EDM (Electrical Discharge Machining), water jet cutting, and laser cutting. Each of these techniques has its specific uses and advantages, making them ideal for certain applications.

Materials in CNC Precision Machining



A. Metals Used in CNC Precision Machining

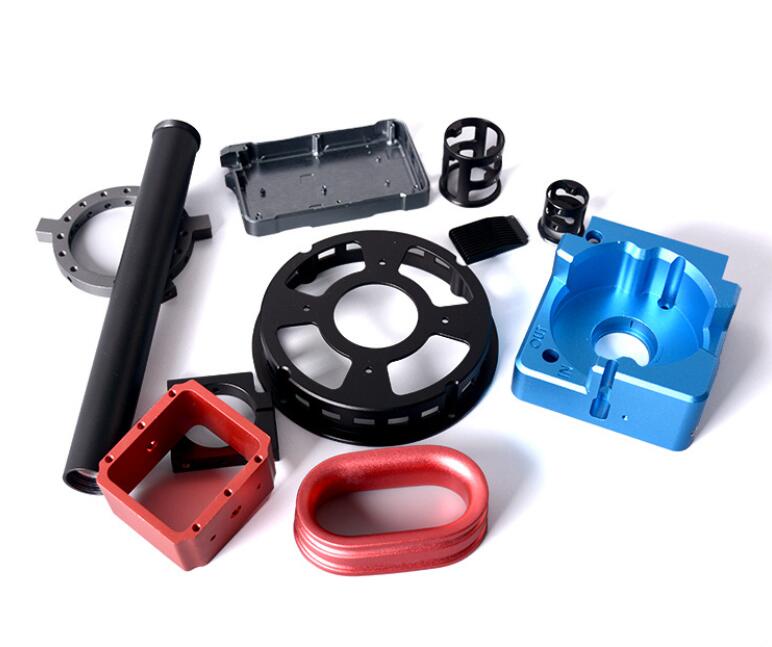

  1. Aluminum: Known for its lightweight and anti-corrosive properties, aluminum is one of the most commonly used metals in CNC precision machining. It’s easy to machine, and CNC machining aluminum material is widely used in aerospace, automotive, and electronics sectors.
  2. Stainless Steel: Strong, corrosion-resistant, and excellent at withstanding extreme temperatures, stainless steel is perfect for CNC precision machining. Industries such as medical and food processing often choose CNC machining stainless steel materials for their durability and hygienic properties.
  3. Brass: Brass is a popular choice for CNC precision machining due to its easy machinability, excellent thermal conductivity, and corrosion resistance. CNC machining brass is often seen in electrical components and musical instruments.
  4. Titanium: This strong, lightweight, and biocompatible metal is used in high-performance sectors such as aerospace and medical industries. CNC machining titanium ensures strong, lightweight, and highly durable components.



B. Non-metals Used in CNC Precision Machining

Non-metal materials are also prevalent in CNC precision machining, depending on the project’s needs.

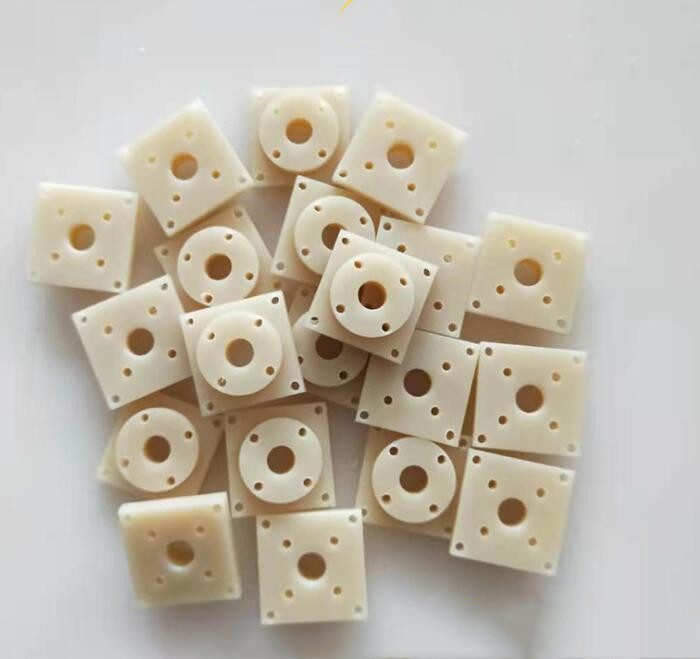

  1. Plastics: From ABS and Polycarbonate to POM Delrin Acetal, plastics offer excellent machinability and a broad range of properties. For instance, CNC machining ABS provides strength and impact resistance, while CNC machining PEEK yields parts with excellent thermal and chemical resistance.
  2. Composites: Materials like carbon fiber are popular in CNC precision machining for their exceptional strength-to-weight ratio. CNC machining carbon fiber is common in industries like automotive and aerospace.



C. Material Selection and Its Impact on Final Product

The choice of material in CNC precision machining greatly impacts the final product’s cost, performance, and application. Therefore, it’s vital to select the right material based on your product’s specific needs and the environment it will operate in.

The Precision in CNC Precision Machining



A. Precision and Accuracy: What Does It Mean?



  • Precision refers to the level of agreement among a series of measurements under the same conditions. In other words, it indicates the consistency and repeatability of the machining process. For instance, a precision CNC machine can repeatedly produce the same part within a tiny margin of error.
  • Accuracy, on the other hand, denotes the closeness of the machined part’s measurements to its intended specifications or true value. An accurate CNC precision machine produces parts that match the desired specifications.



B. Factors Affecting Precision in CNC Machining



  1. Machine Calibration: Regular calibration ensures the CNC precision machine operates at its highest potential. Any inaccuracies in the machine’s calibration can lead to errors in the final product.
  2. Tool Selection: The selection of precision machining tools impacts the outcome. The right tools for a specific job can enhance the machine’s precision.
  3. Programming Errors: CNC precision machining relies on accurate programming. Any errors in the G-code (the language that controls CNC machines) can lead to inaccuracies in the final product.
  4. Material Properties: Different materials behave differently during machining. Understanding the material’s properties can prevent issues that could affect the precision of the final product.



C. Measuring Precision in CNC Machining

Measuring precision in CNC machining involves examining the machining decimal places of the final product. For instance, a machine that consistently produces parts within +/- 0.001 inches of the intended specifications is considered highly precise.

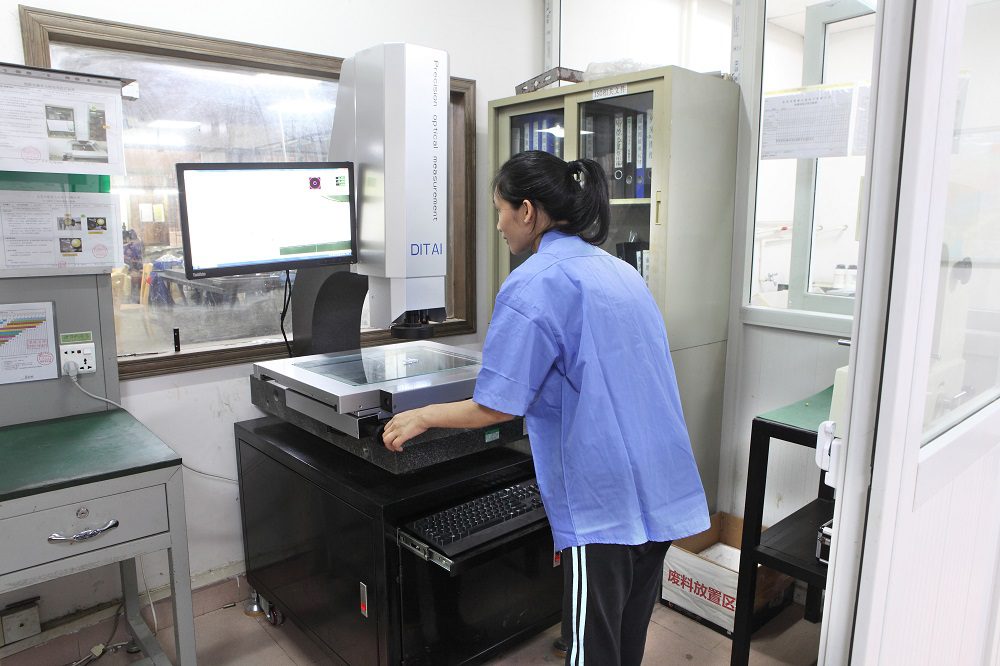

Moreover, precision can be measured using various methods, including Coordinate Measuring Machines (CMM) and vision measuring systems, to ensure that the final product matches the specified dimensions and tolerances.

Benefits of CNC Precision Machining



A. High Accuracy and Repeatability

One of the biggest benefits of CNC precision machining is its incredible accuracy. Unlike manual machining, CNC machining minimizes human error, ensuring parts are manufactured exactly to the intended design. Furthermore, the high repeatability of CNC precision machines means that they can produce identical parts in large quantities with minute deviations, making it ideal for mass production.



B. Scalability and Versatility

CNC precision machining allows for easy scaling of production. Whether you need one prototype or thousands of parts, CNC machines can accommodate your needs. Plus, with their ability to handle a wide range of materials – from aluminium and stainless steel to various plasticsCNC precision machines offer unmatched versatility.



C. Speed and Efficiency

Thanks to their automated nature, CNC precision machines can operate continuously, 24/7, with minimal human intervention. This leads to quicker production times and higher efficiency, especially when compared to manual machining processes.

Furthermore, CNC precision machines often combine multiple functions into one operation, reducing setup times and speeding up the overall production process.



D. Cost-effectiveness

Although the upfront costs of CNC precision machines can be high, their long-term benefits often outweigh the initial investment. Reduced labor costs, faster production times, less waste due to high accuracy, and lower maintenance costs all contribute to the cost-effectiveness of CNC precision machining.



E. Enhanced Safety

The automation of CNC precision machines increases workplace safety. Since the machine does all the work, operators are not directly involved in the cutting and drilling processes, reducing the risk of accidents.

Industries and Applications of CNC Precision Machining



A. Automotive Industry

In the automotive sector, CNC precision machining is invaluable. The need for components to function correctly and reliably in a wide range of conditions demands precision manufacturing. From engine parts to complex dashboard electronics, CNC precision machining ensures consistency, reliability, and efficiency.



B. Aerospace Industry

CNC precision machining plays a critical role in the aerospace industry. The safety requirements and rigorous standards necessitate highly precise and durable components. CNC precision machines can create parts such as turbine blades and navigation systems with intricate geometries and strict tolerances, often from hard-to-machine materials like titanium.



C. Medical Industry

In the medical field, CNC precision machining is used to create a multitude of components, from surgical instruments to orthopedic implants. The precision and accuracy of CNC machines are paramount, as any minute deviation can significantly impact patient safety.



D. Consumer Electronics Industry

CNC precision machining is instrumental in the manufacturing of various consumer electronics. From laptop cases to smartphone components, CNC precision machines enable the mass production of complex, miniaturized parts. They can consistently deliver high-quality parts, allowing manufacturers to keep up with the rapid pace of technological innovation.



E. Other Key Industries

Besides the above, industries such as energy, defense, and industrial machinery also heavily rely on CNC precision machining. The ability to create complex parts with high precision makes it an indispensable technology across various sectors.

Conclusion

Understanding CNC precision machining is not only vital for those in the manufacturing industry but for anyone interested in technological progress. As the backbone of many industries, its evolution will shape our future.

To get started with high-quality, precision CNC machining, visit our CNC machining services page and discover how we at Worthy Hardware can help you reach your manufacturing goals.

FAQ



Is CNC machining better than 3D printing?

CNC machining offers higher precision and is better suited for large-scale production of metal parts. 3D printing, on the other hand, is great for producing complex geometries and rapid prototyping.



Why is CNC better than manual?

CNC machining is more accurate, efficient, and safer than manual machining. It allows for high precision, repeatability, and can run continuously for mass production.



How accurate is CNC machining?

CNC machining can achieve extremely high accuracy levels, often within 0.001 inches or even tighter tolerances.



How much is CNC per hour?

It can range from $30 to over $100 per hour.



Is CNC machining cheaper than 3D printing?

CNC machining is typically more cost-effective for large-scale production, while 3D printing might be cheaper for small, complex prototypes.

//]]>
