What Is CNC Machining Tolerances? A Complete Guide

In today’s highly competitive industrial world, precision is everything. CNC machining tolerances define the allowable limits within which a dimension can vary without compromising the functionality or performance of a part. The focus on these tolerances ensures the consistency of manufactured components and builds trust between suppliers and manufacturers.

This guide will explore the complete spectrum of machining tolerances, including standard tolerances, CNC milling tolerances, and CNC turning tolerances, to help you understand how they contribute to achieving the highest quality in manufacturing. Stay tuned to discover more about the fascinating world of CNC machining tolerances.

What is CNC Machining Tolerances?

CNC machining tolerances refer to the permissible variation in the dimension of a part. Essentially, they set the boundaries for how far a specific measurement can deviate from the planned dimension. Understanding machining tolerances is a complex subject, and different components might require different types of tolerances, such as machining tolerance standards, standard tolerances, and typical machining tolerances.

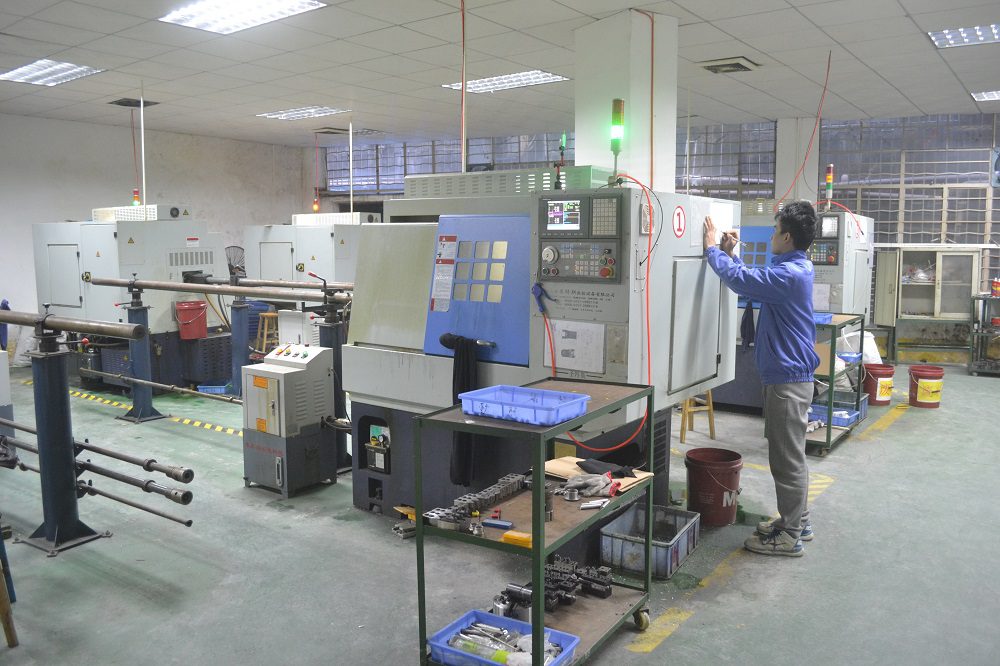

To delve deeper into the specifics, CNC machining incorporates various processes like CNC Milling, CNC Turning, and others that adhere to cnc machine tolerances. These tolerances govern the overall quality and fit of the machined parts. High tolerance machining ensures that parts fit together seamlessly, while standard manufacturing tolerances ensure that the process adheres to industrial norms.

Why Machining Tolerances are Important?

Understanding and controlling machining tolerances is crucial in the manufacturing industry. Here’s why:


Quality Assurance

CNC machining tolerances ensure that parts are produced within defined limits. Meeting these tolerances means that the parts will fit and function as intended. Adhering to standard machining tolerances guidelines promotes quality assurance and reduces the risk of component failure


Consistency in Production

Tolerances guarantee consistency across multiple parts. For large-scale manufacturing, maintaining standard tolerances for machined parts and standard metric tolerances guarantees that every part will be identical within acceptable limits. This uniformity leads to seamless assembly and a quality end product.


Cost Efficiency

A clear understanding of machining tolerances helps in optimizing the manufacturing process. By setting tolerances appropriate for the application, unnecessary precision (which can be costly) is avoided. Proper utilization of tolerances, such as milling tolerances and typical tolerance for machiningcan significantly save on production costs.


Compliance with Industry Standards

Many industries require adherence to specific standard manufacturing tolerances. For instance, aerospace and medical industries often have stringent machining tolerances chart requirements and standard tolerancing norms. Staying within these tolerances ensures compliance with regulations and maintains the integrity and safety of the products.


Enhancing Customer Satisfaction

CNC machining tolerance precision leads to better quality products, meeting customer expectations. Clients like Mark Sheng, who prioritize quality, seek suppliers who can adhere to standard tolerances, CNC tolerances, standard flatness tolerance, and other specific tolerances. For further insights into CNC tolerances and how they ensure customer satisfaction, explore Worthy Hardware’s CNC Machining Parts Tolerance news.

Types of tolerances in CNC Machining


Unilateral Tolerance

Unilateral tolerance is one of the specific types of machining tolerances that plays an essential role in CNC manufacturing. Unlike other tolerances, unilateral tolerance defines a permissible variation in only one direction from the nominal size of the part.

In unilateral tolerance, the allowable deviation is either above or below the specified dimension, but not in both directions. For example, if a component must be 10 mm with a +0.05 mm tolerance, the acceptable size range is from 10 mm to 10.05 mm, but not below 10 mm.

Bilateral Tolerance

Unlike unilateral tolerance, where the deviation is allowed only in one direction, bilateral tolerance permits the dimension to be both larger and smaller than the specified size.

For example, if a part has a nominal size of 20 mm with a bilateral tolerance of ±0.05 mm, it means that the acceptable size range for the part is from 19.95 mm to 20.05 mm. This type of machining tolerance is often used in situations where both shrinkage and expansion of the part are acceptable within specific limits.

Limit Tolerances

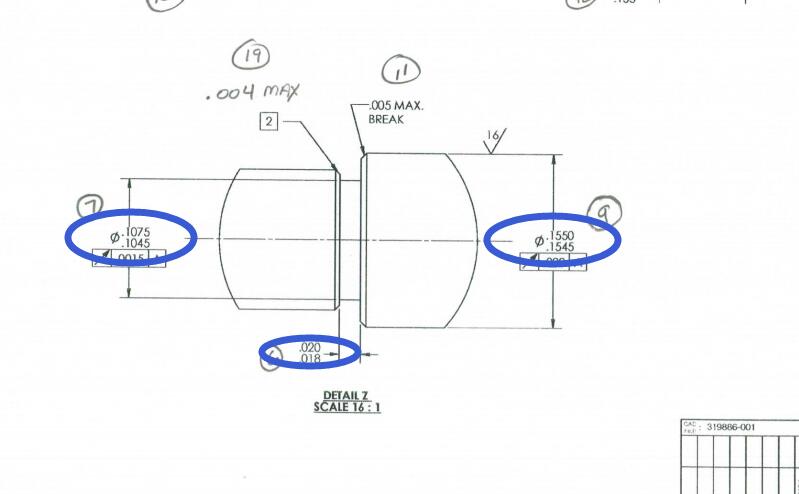

Limit tolerances define the upper and lower bounds of a dimension, providing a clear range in which the size must fall. Unlike unilateral or bilateral tolerances, limit tolerances specify two distinct values: the maximum and minimum allowable dimensions.

In machining tolerances, limit tolerances are often used when the upper and lower boundaries need to be clearly defined. For instance, a shaft may have limit tolerances of 50.05 mm and 49.95 mm, meaning that the part must be manufactured within this range for proper functionality.

Geometric Dimensioning and Tolerancing (GD&T)

Geometric Dimensioning and Tolerancing (GD&T) is a comprehensive system for defining and communicating machining tolerances in manufacturing. It uses symbolic language to specify the form, orientation, and location of part features. GD&T is a crucial part of CNC machining tolerances, providing a standardized approach to define complex geometries and ensure proper fit and function.


Key Aspects of GD&T

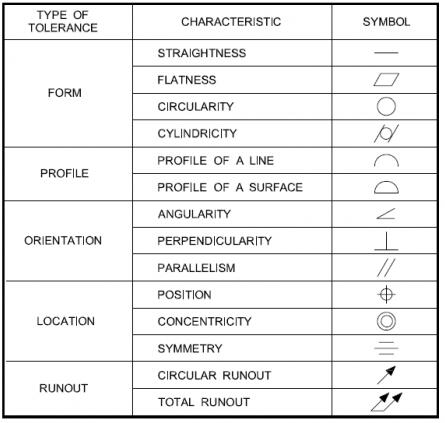

  • Form Tolerances: These control the shape of individual features, such as flatness, straightness, and circularity.
  • Orientation Tolerances: Orientation tolerances control the alignment of features, including parallelism, perpendicularity, and angularity.
  • Location Tolerances: These tolerances define the position of features in relation to each other, like concentricity and symmetry.

Standard Tolerances

Standard tolerances are pre-defined values that are commonly accepted within the industry for general manufacturing processes. These tolerances are often used when specific custom tolerances are not provided, and they follow recognized machining tolerance standards.


Types of Standard Tolerances


  • General Tolerances: These are typical values used for most parts and are often defined by international standards like ISO 2768. They are applied to standard machining tolerances and typical tolerance for machining.
  • Material-Specific Tolerances: Some materials, such as CNC Machining Aluminium Material, may have specific standard tolerances defined.
  • Process-Specific Tolerances: Different manufacturing processes like CNC milling tolerances, milling tolerances, and CNC machine tolerances may have unique standard tolerances based on their capabilities.

Dimensional Tolerances

Dimensional tolerances are fundamental in manufacturing and CNC machining. They define the allowable variations in linear and angular dimensions of a part. Dimensional tolerances are essential to ensure that parts fit and function together as intended.

In CNC machining, dimensional tolerances are used to control critical features such as holes, slots, and surfaces. They are vital in standard tolerances for machined parts and are applied in various forms, including CNC machining tolerances, and standard machining tolerances.

To better understand the importance of dimensional tolerances and how to apply them effectively, consult the guide on How to Select the Right CNC Machining Tolerances.

Surface Finish Tolerances

Surface finish tolerances control the texture and appearance of the surface of a part. Surface finish tolerances include:

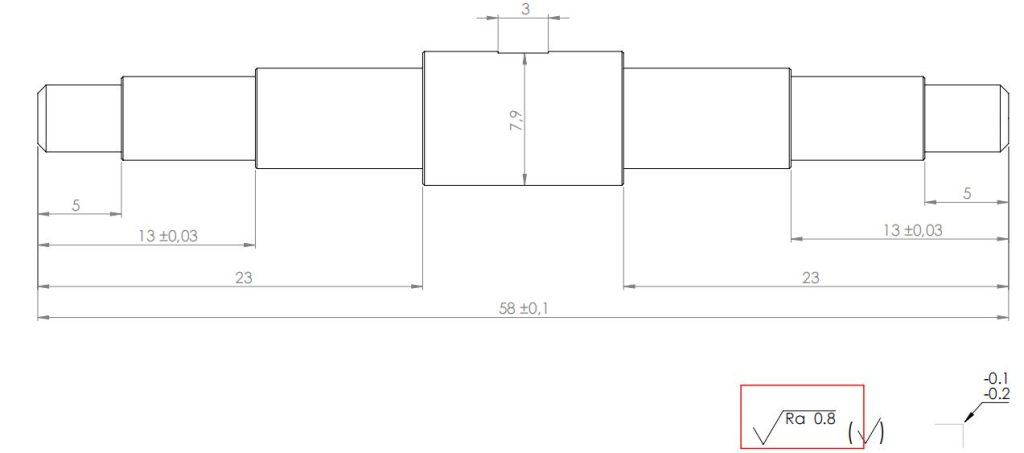

Surface roughness is a measure of the fine irregularities on the surface of a part. It can significantly impact the part’s wear resistance, friction, and ability to form a seal.


  • Waviness refers to the broader, more spaced irregularities on the surface. It is a less fine variation compared to roughness and might result from machine vibrations or deflection.
  • Lay is the direction of the predominant surface pattern, usually caused by the production method. Lay affects how lubricants are retained and how parts slide over each other.

Fit Tolerances

Fit tolerances ensure that the parts fit together as intended without being too tight or too loose. Fit tolerances are typically divided into three categories:


  • Clearance Fit is a fit that provides a space or clearance between the mating parts. This type of fit is often used in parts that must move or rotate freely relative to one another.
  • Interference Fit, also known as a press fit or force fit, is a fit where the parts are deliberately made to interfere with each other. This interference ensures a tight connection and is used when parts must not move relative to one another.
  • Transition Fit is a fit that can either provide a clearance or an interference, depending on the exact tolerances of the mating parts. This type of fit is used when some flexibility is needed in the assembly.


Feature-of-Size Tolerances

Feature-of-size tolerances relate to how much a feature’s size can vary from its nominal dimension. It ensures that even if the feature size varies within the specified tolerances, it will still function correctly.

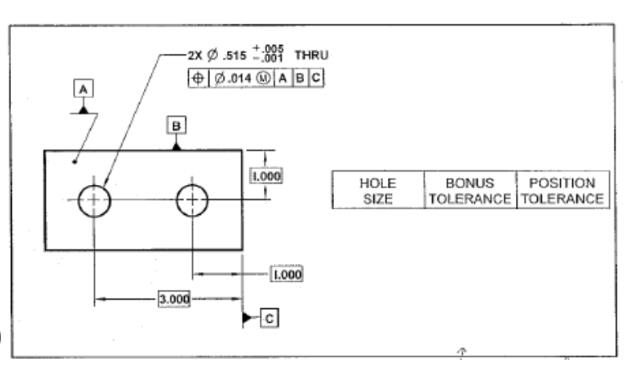

  • Maximum Material Condition (MMC) refers to the condition where a feature contains the maximum amount of material that complies with its size limits.
  • Least Material Condition (LMC) represents the opposite of MMC, where the feature has the least amount of material and still complies with its size limits.
  • Regardless of Feature Size (RFS) means that the tolerance is applied without considering the actual size of the feature

Considerations before you choose the CNC Machining tolerances

When working with CNC machining, one must carefully consider several factors before deciding on the appropriate tolerances.


Tight tolerances needed or not

Determining whether tight tolerances are necessary for a specific project is crucial. While high precision is often associated with quality, it may not be essential for all applications. Over-specifying machining tolerances can lead to higher costs without adding value to the product. You must understand the typical tolerance for machining and whether a tighter machining tolerance is truly beneficial.


Cost Constraint

The tighter the tolerance, the higher the cost. Applying high tolerance machining involves more precise tools, processes, and inspection methods, all of which add to the expense. Therefore, balancing the required tolerances with the budget is key


Manufacturing Process Capabilities

Understanding the CNC machine tolerances capabilities of the selected manufacturing process is vital. Not all processes can achieve the same levels of precision, so knowing the standard tolerances for machined parts for each method will guide the design.


Inspection method

The chosen inspection method must align with the tolerances set. If you specify a CNC machining tolerance that your inspection equipment cannot measure, it will be impossible to verify if the part meets the required standards.


Material Properties

Different materials have unique characteristics that can affect machining tolerances. Factors such as hardness, thermal expansion, and chemical resistance must be considered.


Surface roughness

Surface finish tolerances like roughness, waviness, and lay can impact the part’s function and aesthetics.

How to Find the Right Tolerance


Consult with CNC Machining Experts

Engage with professionals who specialize in CNC tolerances to gain insights into the most suitable tolerances for your project. They can provide advice on standard machining tolerances, CNC milling tolerances, typical machining tolerances, and the latest machining tolerance standards


Adhere to Industry Standards-ISO2768

Following established industry standards like ISO2768 can guide you in selecting the appropriate machining tolerances. This standard outlines the general tolerances for linear and angular dimensions without individual tolerance indications, making it a valuable resource for understanding standard tolerances.


Consider the function of the part

Think about how the part will function within its final assembly. Will it require high tolerance machining, or will standard machining tolerances suffice? Factors such as fit, function, and the interaction with other components will determine the necessary tolerances, whether it’s standard tolerance for machined parts or more specific cnc tolerances.

Tips to design the machining tolerances

Designing the right machining tolerances is an art that requires a combination of technical expertise and creativity. Here are some useful tips:


  1. Understand Material Behavior: Different materials, such as CNC Machining Stainless Steel Materials, behave differently during machining, and understanding these differences is key to setting the right tolerances.
  2. Balance Cost and Precision: Achieving tight tolerances often comes with a higher cost. Evaluate if the extra precision justifies the added expense.
  3. Utilize Proper Software Tools: Tools like CNC Machining CAD and CAM Software can help in accurately defining tolerances in your design.
  4. Evaluate Surface Finish Requirements: Consider factors like roughness, waviness, and lay. The surface finish can often affect the part’s function, so it’s essential to align it with other machining tolerances.
  5. Collaborate with Manufacturers Early: Engaging with manufacturers early in the design process can lead to valuable insights into the machining standard and machining tolerances chart related to your project.
  6. Stay Updated with the Latest Technologies: Technology constantly evolves, so staying abreast of the latest in CNC tolerance standards and manufacturing tolerance standards ensures that your designs are in line with industry best practices.


By understanding and applying these principles, you can create a design that ensures quality, functionality, and efficiency. Whether you are working with CNC Machining Woods or CNC Machining Aluminium Material, these strategies will guide you to success.


Whether you are aiming for high tolerance machining or aligning with standard metric tolerances, the challenge lies in balancing precision with cost, adhering to standard tolerancing, and ensuring that the chosen tolerances align with the functionality of the part.

The information in this guide will not only help in understanding CNC machine tolerances but also in selecting and designing them with finesse. With a firm grasp of concepts like typical tolerance for machining, one can navigate the complex terrain of CNC machining with confidence and skill.



What are the standard tolerances for CNC machining?

ISO2768 is a commonly followed standard for general machining tolerances.


What is the tolerance for milling machining?

Milling tolerances can range from +/- 0.001″ to +/- 0.005″ depending on the machine, material, and design complexity.


What are the tolerances for grinding?

Grinding can achieve tolerances as tight as +/- 0.0001″, depending on the machine and the process used.


How do you calculate machining tolerance?

Machining tolerance calculation often involves considering factors like material properties, machine capabilities, and design requirements. Software tools and expert consultation can assist in this calculation.
