What are Waveguide Flanges: The Complete Guide, and Why Are They So Important?

It can be tough figuring out how to connect waveguide sections reliably. Poor connections mean signal loss and big headaches. Waveguide flanges are designed to make these connections secure and efficient.

Waveguide flanges are essential connecting interfaces for waveguide sections. They ensure a precise mechanical and electrical joint, which is vital for maintaining signal integrity and minimizing losses in high-frequency systems. They are the unsung heroes of many communication setups.

Getting the right connection between waveguide parts is super important. If it's not right, your whole system can suffer. You need a solution that's both strong and good at letting signals pass through without problems. That's where understanding waveguide flanges comes in. We need to look at what they do, and also what waveguides themselves do, to really get the picture. I've worked with so many customers, like Mark from Canada, who need these parts to be perfect. For his business, buying quality OEM CNC machining parts from China is key, and things like flanges have to meet very high standards.

What is the purpose of a waveguide flange?

You need a strong, dependable connection for your waveguides, right? If they're misaligned or not sealed well, your signal quality drops. Waveguide flanges solve this by ensuring parts fit together just right.

The main job of a waveguide flange is to connect two waveguide sections together. It does this mechanically, holding them firmly, and electrically, allowing signals to pass with very little loss or reflection. This keeps your system running smoothly.

Let's dive a bit deeper into what a waveguide flange really does. Think of it as more than just a simple connector. Its purpose is twofold: making a solid mechanical link and ensuring a smooth electrical path.

First, the mechanical side. Waveguide flanges are designed with very precise holes for bolts. When you tighten these bolts, the two waveguide sections are pulled together. The faces of the flanges must be perfectly flat and smooth to meet up correctly. This precision is something we focus on a lot at Worthy Hardware.

Our CNC machining can hold tolerances down to +/- 0.005 inches, and even tighter if needed, which is crucial for these parts. Some flanges also have grooves for gaskets. These gaskets help to seal the connection, keeping out moisture or dust, and sometimes even maintaining pressure inside the waveguide if the system requires it. It's all about creating a stable, aligned, and sealed joint that won't budge or leak.

Second, the electrical side. This is where things get really interesting for signal transmission. A good flange connection minimizes something called Voltage Standing Wave Ratio (VSWR). A high VSWR means a lot of the signal is being reflected back from the connection point, which is bad. The flange design helps to match the impedance of the two waveguide sections. This means the signal flows smoothly from one section to the next without hitting a "bump" that would cause reflections.

Different types of flanges, like choke flanges and cover flanges (or plain flanges), work together to achieve this. A choke flange has a special groove that helps to create a good electrical short circuit at the connection point, even if there's a tiny physical gap. This attention to detail in the design and manufacturing of the flange ensures the best possible signal transfer. For clients like Mark, who are sensitive to quality, this electrical performance is just as important as the mechanical strength.

What is the purpose of a waveguide?

Need to send high-frequency signals without losing too much power? Coaxial cables can struggle with this, especially over distances. Waveguides offer a much better way to transmit these signals efficiently.

The purpose of a waveguide is to guide and transmit high-frequency electromagnetic waves, like microwaves or radio waves, from one point to another with very low signal loss. They are ideal for high-power applications and long-distance transmission.

So, why do we even use waveguides in the first place? Well, when you're dealing with really high frequencies – think microwaves used in radar, satellite communication, or even some industrial heating processes – traditional wires and coaxial cables start to have problems. They lose too much signal strength, especially if the signal has to travel a fair distance or if it's a very powerful signal.

A waveguide is basically a hollow metal pipe. The electromagnetic waves travel inside this pipe. The metal walls of the pipe act like mirrors for the waves, reflecting them and guiding them along the length of the pipe. Because there's no central conductor like in a coaxial cable, and the signal is mostly traveling in the air or vacuum inside, the losses are much, much lower. This is a huge advantage. We can make these waveguides from materials like aluminum, copper, or brass. At Worthy Hardware, we machine a lot of aluminum parts, and waveguide components are a common request because aluminum is lightweight and has good conductivity.

Waveguides come in different shapes, most commonly rectangular, but also circular or elliptical, depending on the specific application and the type of wave (mode) they need to support. The size of the waveguide is also very important. Its dimensions are directly related to the wavelength of the signals it's designed to carry. If it's too small, the signal won't propagate. If it's too big, you might get unwanted modes. This is why precision machining is so critical for waveguides and their flanges – everything has to fit together perfectly to maintain those precise internal dimensions.

What is the definition of a waveguide?

It can be confusing trying to picture what a waveguide actually is. All the technical talk doesn't always help. A simple, clear definition can make it much easier to understand.

A waveguide is a special structure, usually a hollow metal tube, that directs the path of waves, such as electromagnetic waves or even sound waves. It does this with very little loss of energy by confining the wave's travel to a specific direction.

Let's break down that definition of a waveguide. When we say "structure," for most high-frequency applications, we're talking about a pipe made of conductive metal. As I mentioned, aluminum, brass, and copper are common choices. We at Worthy Hardware have experience machining all these materials. The key is that it's usually hollow.

Then, "guides waves." How does it do this? The electromagnetic waves, which are made of electric and magnetic fields, bounce off the inner conductive walls of the tube. This bouncing effect keeps the wave moving forward along the length of the tube, kind of like how a bobsled stays in its track. It prevents the wave energy from spreading out and getting lost.

"Minimal loss of energy" is a big deal. In many systems, like radar or long-distance communication links, every bit of signal power counts. Waveguides are efficient because the main energy of the wave travels through the air or dielectric material inside the waveguide, not through a wire conductor that has resistance. The conductive walls just reflect the energy. This efficiency is why they are preferred over coaxial cables for many high-frequency, high-power, or long-distance applications. The dimensions of the waveguide are super critical. They determine the range of frequencies that can travel through it effectively. For instance, a smaller waveguide is used for higher frequencies (shorter wavelengths). This is where our precision machining, with capabilities for milled parts up to 80 inches and tight tolerances, really helps our customers get exactly what they need.

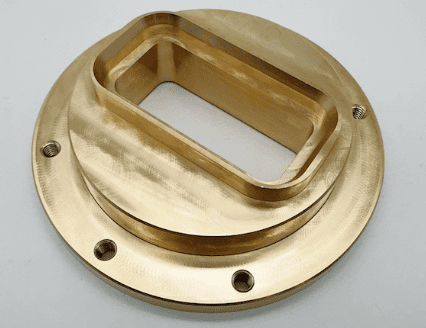

What is the function of the waveguide cover?

You need to protect the inside of your waveguide, right? And when you join two sections, you want that join to be perfect. A waveguide cover, or cover flange, helps with both these things.

A waveguide cover flange, also known as a plain or flat flange, is a type of flange used to terminate a waveguide section or, more commonly, to mate with another flange (often a choke flange) to complete a connection. It provides a flat, conductive surface for the joint.

The waveguide cover flange might seem like a simple part, but it plays a very important role. Often, it's just a flat piece of metal, matching the cross-section of the waveguide, with bolt holes that line up with another flange. We make these with high precision at Worthy Hardware, ensuring the face is perfectly flat and the bolt holes are exactly where they need to be. The standard finish we provide is an as-machined 125 Ra or better, which is usually excellent for good electrical contact, but we can do other surface finishes too, like plating, if the customer needs it.

Its main function is to be part of a flange pair. You'll often see a cover flange mated with a choke flange. The choke flange has a special recessed groove that helps to create a very good electrical connection even if the two flange faces aren't perfectly, microscopically touching everywhere. The cover flange provides the flat, smooth surface for the choke flange to work against. Sometimes, two cover flanges are used together, perhaps with a gasket in between, especially if pressure sealing is very important or if it's a simpler, lower-frequency application.

A cover flange can also be used to cap off the end of a waveguide run, though if you're properly terminating a waveguide to prevent reflections, you'd typically use a matched load rather than just a flat cover. But for temporary protection, or in some specific test setups, a cover flange might be used to seal an open end. The material and the surface finish are key here. It needs to be conductive to maintain the electrical path and prevent signal leakage or interference. That's why choosing the right material and ensuring a good surface finish, which is part of our quality inspection for all products, is critical for our clients. Mark, my customer from Canada, is always very particular about material certifications and quality inspection, and for good reason when it comes to components like these.

Conclusion

Waveguide flanges are vital for connecting waveguide sections. They ensure strong mechanical links and excellent electrical performance, which is key for any high-frequency system.
