An Exploration of Spring Types and Their Applications

Springs are crucial components in a multitude of products, hidden in plain sight in objects we use daily. From pens, watches, and mattresses to cars, buildings, and industrial machinery – springs play a vital role in our lives.

Functioning as energy storage units, springs provide essential functionality in numerous applications. They offer force and motion control, aid in vibration dampening, counterbalance mechanisms, and much more.

To fully comprehend the scope and potential of springs, one must delve into the fundamental concept behind springs. Recognizing the range and adaptability of various spring types enables product developers to make educated choices about which spring will best suit their specific needs.

The Fundamental Concept Behind Springs

The function and behavior of springs hinge on a simple but foundational principle in physics.


A. What is a Spring and What Does it Do?

A spring is essentially an elastic object that stores mechanical energy. Springs can be compressed, extended, or twisted – actions that ‘deform’ the spring. The deformation results in the spring storing energy, and when released, the spring attempts to return to its original shape, releasing this stored energy in the process.


B. The Connection Between Hooke’s Law and Springs

Underpinning the mechanics of springs is Hooke’s law, a principle that states that the force a spring exerts is proportional to its extension. Simply put, the more you stretch (or compress) a spring, the more force it will exert to try to get back to its original shape.

In the next section, we will explore the rich variety of spring types and their diverse applications. Each spring type is designed with specific functions and applications in mind, contributing to the versatility of springs in different product designs.

Exploring Various Spring Types and Their Functions

Spring types are diverse and abundant, designed to meet the myriad of requirements posed by different applications. Understanding these types and their unique characteristics is key to making an informed choice in product design.


A. Type One: Coiled Springs

Coiled springs, often made by winding a wire around a cylinder, are perhaps the most common type of spring and can be found in countless applications. These springs come in various forms, each serving distinct purposes.


1. Springs of Compression

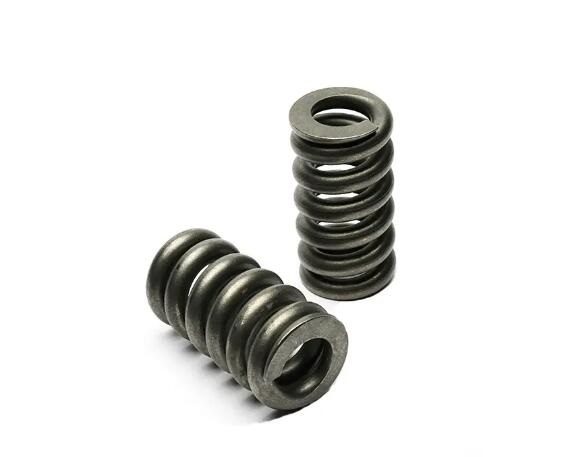

Compression springs are designed to resist being compressed, meaning they push back when you press on them. This makes them ideal for applications requiring a resistance to force, such as shock absorbers in vehicles or the retractable ink tip in a ballpoint pen.


2. Springs of Extension

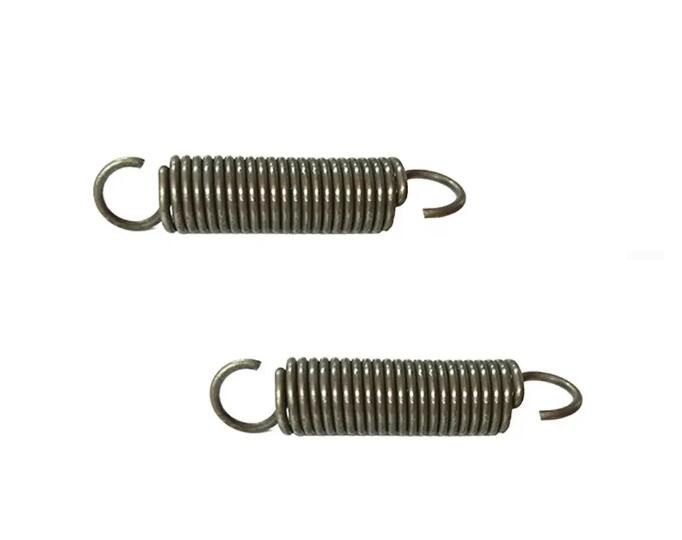

On the other hand, extension springs are designed to resist being extended, making them perfect for applications requiring a pulling force. You can find these springs in objects like garage doors, trampolines, and even in the retractable cord of a vacuum cleaner.


3. Springs of Torsion

Torsion springs work a little differently. These springs are designed to resist twisting or rotational movements. They are often used in applications like clothespins, door hinges, and even in the winding mechanism of a mechanical clock.


4. Spiral Springs

Last but not least, spiral springs, such as those found in traditional watch mechanisms, store and release rotational energy. They are commonly used in applications that require long-term rotational energy storage.


B. Type Two: Leaf Springs

Unlike coiled springs, leaf springs are flat and are often used when space is a constraint. These springs also come in different forms, each with its unique applications.


1. Elliptical Leaf Springs

Elliptical leaf springs, often made of flat strips of metal stacked on top of each other, are widely used in suspension systems in vehicles. They provide the dual function of bearing the load of the vehicle while also absorbing any shock from the road.


2. Semi-Elliptical Leaf Springs

Moving further, semi-elliptical leaf springs, a simplified version of the elliptical leaf springs, consist of multiple leaf springs of varying lengths stacked on top of one another. They are popular for light to medium duty applications in automobiles and wagons due to their simplicity and cost-effectiveness.


3. Leaf Springs of the Quarter Elliptical Type

Quarter elliptical leaf springs, or quarter-elliptic springs, are used in vintage vehicles and some modern sports cars. They provide the benefit of being lightweight, yet capable of absorbing large amounts of energy. These springs are generally paired in sets of two, with each set working together to balance the load.


4. Three-Quarter Elliptical Leaf Springs

Three-quarter elliptical leaf springs are a hybrid between quarter elliptical and semi-elliptical leaf springs. They are specifically designed to offer more flexibility and higher load-carrying capacity, making them ideal for off-road vehicles that require additional suspension flexibility.


5. Transversal Leaf Springs

Transversal leaf springs run across the width of the vehicle instead of its length. This unique configuration provides an effective way to simplify the suspension system by reducing the number of components required. These springs can be seen in some models of Chevrolet Corvette and the front suspension of Morgan cars.


C. Type Three: Plate Springs

Plate springs, also known as disc springs, are typically conical shaped discs that can store larger amounts of energy in a smaller space compared to other types of springs. The flexibility of design in plate springs allows for a range of uses.


1. Belleville Plate Spring

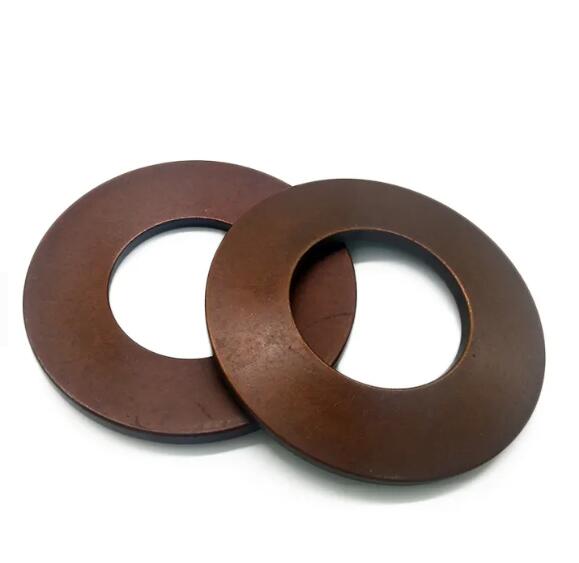

Named after the city of Belleville (belleville disc spring), France where it was invented, the Belleville plate spring is a type of spring loaded with axial force. This unique design enables it to bear high loads while maintaining a relatively small size. It is commonly used in bolted joints, safety valves, and clutch or brake assemblies.


2. Plate Springs with Curvature

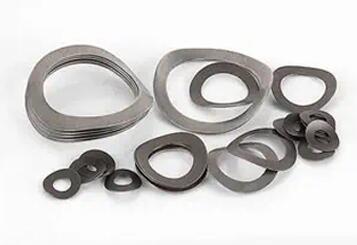

A curved or arched plate spring (Curvature disc spring or arched disc spring) can handle greater loads and deflections, and is found in a range of applications. Spring-loaded mechanisms, such as safety valves, incorporate this type of spring due to its durability and longevity.


3. Slotted Plate Spring

Slotted plate springs (Slotted disc spring) have holes or slots cut into them to accommodate attachments or load-bearing elements. These are versatile spring types often used in the automotive industry and machinery for torsion spring applications.


4. Plate Springs with Wave Pattern

Plate springs with wave patterns, also known as wave springs or coil springs, have a wave pattern in a single turn of wire. This pattern allows the spring to provide resistance to compressive forces, making it ideal for various spring-loaded mechanisms.

Materials Employed in Spring Production

Most springs are made from alloy steel, stainless steel, copper-based alloys, nickel-based alloys, and high-temperature alloys. The selection of material depends on the application and the environment in which the spring will operate.

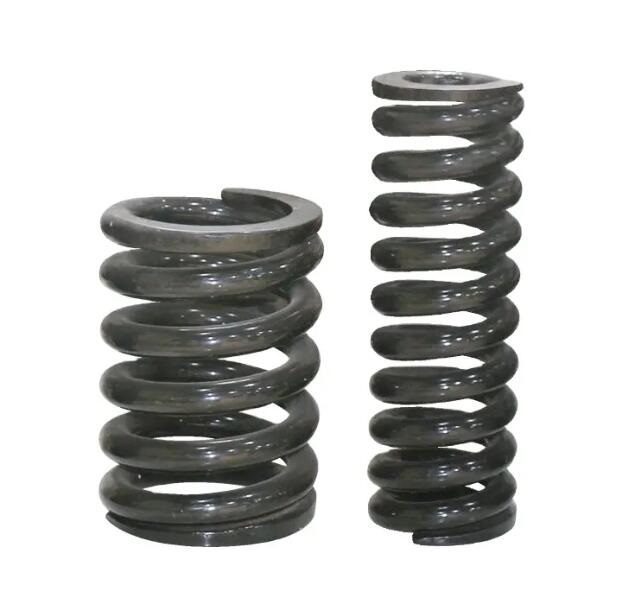

Alloy steel, such as music wire or oil-tempered wire, is commonly used for compression springs due to its high strength and hardness. Stainless steel springs are resistant to corrosion and are therefore often used in food processing and marine applications.

Nickel-based alloys like Inconel are used in environments with extreme temperatures and corrosive materials. For instance, these alloys are common in mechanical springs used in aerospace applications. Copper-based alloys, such as phosphor bronze, are used in electrical contacts and in situations where corrosion resistance is important.

The high-temperature alloys, including Hastelloy and Elgiloy, are used in environments with extreme heat and stress. These alloys are often used for springs in jet engines and other high-temperature applications.

The Upsides and Downsides of Using Springs

Every engineering component, including springs, comes with a set of advantages and drawbacks that must be weighed before making a selection. This balance is especially crucial when dealing with types of springs and their functions.


A. Benefits of Springs

The benefits of springs can be seen in several areas: enhanced shock absorption, energy retention, connection mechanisms, and stability in products.


  1. Enhanced Shock Absorption: Many types of springs are designed to absorb shocks and vibrations, such as those found in vehicle suspension systems and various machinery. These include compression springs, torsion springs, and certain types of car springs.
  2. Energy Retention: Springs store mechanical energy when they are deformed and release it when they revert to their original shape. This function is particularly useful in spring-loaded mechanisms like retractable pens, clocks, and toys.
  3. Connection Mechanisms: Some spring types, such as extension springs, are used to provide a connection between two components. These springs, often found in garage door mechanisms, exert a pulling force when extended and return to their original length when released.
  4. Stability in Products: Springs are often used in products to provide stability and maintain alignment between different parts. This is seen in a wide range of applications, from bicycle stands to retractable tape measures.


B. Drawbacks of Springs

Despite their many advantages, springs also have certain drawbacks:


  1. Costliness: Producing springs, particularly types of metal springs and mechanical springs, can be costly. This is due to the complex manufacturing process and the high-quality materials often required.
  2. Gradual Reduction in Effectiveness: Over time and with continuous use, springs may lose their ability to effectively store and release energy, necessitating their replacement.

Wrapping Up

The decision of spring selection for a product is a critical one, dependent on an array of factors. Each type of spring caters to specific applications, and understanding the intricacies of each can significantly enhance the functionality and efficiency of your product. We’ve examined various types of springs such as coiled springs, lamina springs, and plate springs; each offers unique characteristics and functions beneficial for specific uses.

Whether you require a compression spring mechanism for shock absorption, an extension spring for a secure connection, or a torsion spring for torque application, your selection should align with the needs of your application. It’s essential to consider the spring types and uses that best match your product’s requirements.

Do not overlook the spring attachment methods; the way a spring is fixed or attached to the product can influence its overall performance. Furthermore, types of spring ends like closed ends, open ends, or hooks may be utilized based on the application.

The material from which the spring is made is another key consideration. The selection of material not only determines the spring’s durability but also its resistance to various environmental factors. Hence, understanding what material springs are made of becomes vital in the selection process.

By making informed decisions and understanding the different types of springs and their uses, you can ensure optimal performance and longevity for your products.
