A Complete Guide to Sheet Metal Fabrication Process

CNC machining

I. Introduction

In an era where manufacturing prowess defines industry leaders, understanding production processes like sheet metal fabrication is paramount. By the end of this comprehensive guide, you’ll gain valuable insight into the world of sheet metal fabrication and its transformative influence across multiple sectors.


II. What is Metal Sheet Fabrication?

CNC machining

At its core, sheet metal fabrication is a construction method that manipulates sheet metal to create diverse products with varying shapes and sizes. This process, carried out in sheet metal shops, utilizes an array of techniques including cutting, bending, and shaping, to transform flat sheets of metal into products or structures that fit specific design requirements.

Sheet metal itself is a versatile material used in numerous industries, making the understanding of its manipulation crucial for a host of applications.


III. Benefits of Sheet Metal Fabrication

Sheet metal fabrication offers numerous benefits that make it a preferred choice in various industries. Here are some key advantages of utilizing sheet metal fabrication techniques:

Versatility: Sheet metal can be easily shaped, bent, and formed into complex geometries, making it suitable for a wide range of applications. From simple brackets to intricate architectural designs, sheet metal fabrication provides immense design flexibility.

Strength and Durability: Sheet metal, especially when properly fabricated, offers excellent strength and durability. It can withstand heavy loads, extreme temperatures, and harsh environments, making it ideal for demanding applications in industries such as automotive, aerospace, and construction.

Precision and Accuracy: Sheet metal fabrication techniques enable high levels of precision and accuracy in creating complex parts. Computer-controlled equipment ensures consistent dimensions, tight tolerances, and repeatability, resulting in superior quality components.

Cost Efficiency: Sheet metal fabrication processes, such as cutting, bending, and welding, are efficient and can be automated to streamline production. This reduces labor costs and leads to faster turnaround times, making sheet metal fabrication a cost-effective solution for both prototyping and large-scale manufacturing.

Customization: Sheet metal fabrication allows for customization, enabling the creation of unique and tailored products. Whether it’s a custom-designed enclosure for electronic equipment or specialized components for a specific application, sheet metal fabrication offers the flexibility to meet precise requirements.

Wide Range of Materials: Sheet metal fabrication works with various materials, including steel, aluminum, stainless steel, copper, and brass. This versatility allows for the selection of the most suitable material based on factors like strength, corrosion resistance, and aesthetic appeal.

Efficient Prototyping: Sheet metal fabrication processes enable rapid prototyping, reducing the time and cost associated with product development. With the ability to quickly create prototypes, designers and engineers can test and iterate designs, ensuring functionality and performance before moving to production.

IV. Three Types of Fabrication Techniques Used in Sheet Metal

The beauty of sheet metal lies in its adaptability, which is largely due to the various fabrication techniques available. Let’s explore three key methods used when working with sheet metal.

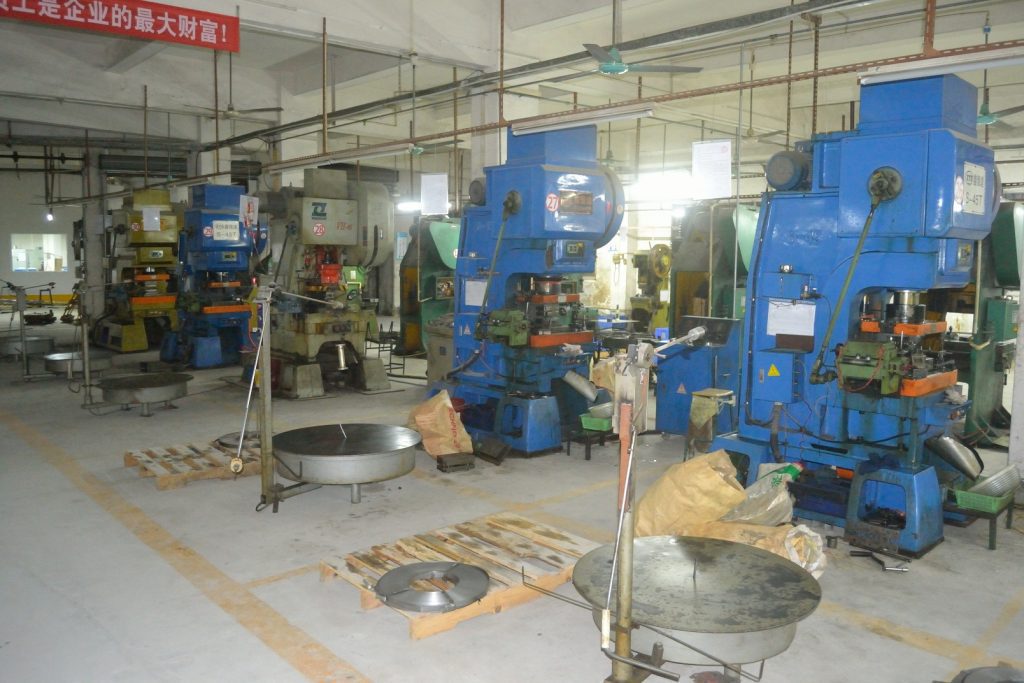

Stamping: This is a process where a die is pressed into the sheet metal to create the desired shape. This technique is widely used in sheet metal manufacturing due to its ability to produce high volumes of the same piece efficiently.

CNC machining


Bending or Folding: This technique involves the deformation of sheet metal along a straight line. The metal is strained by a punch to a bend angle and bend radius. The precision sheet metal fabrication process often employs computer-controlled press brakes for this purpose.

Cutting: As discussed earlier, cutting involves the division of the sheet metal into smaller pieces or sections. Different methods such as shearing, laser cutting, or plasma cutting can be used depending on the requirements.

Each of these techniques has unique benefits and is selected based on factors like the type of sheet metal, production volume, and the desired shape of the final product.


V. Sheet Metal Materials

Sheet metal fabrication involves working with a variety of materials, each chosen based on its specific properties and suitability for the intended application. Here are some common materials used in sheet metal fabrication:


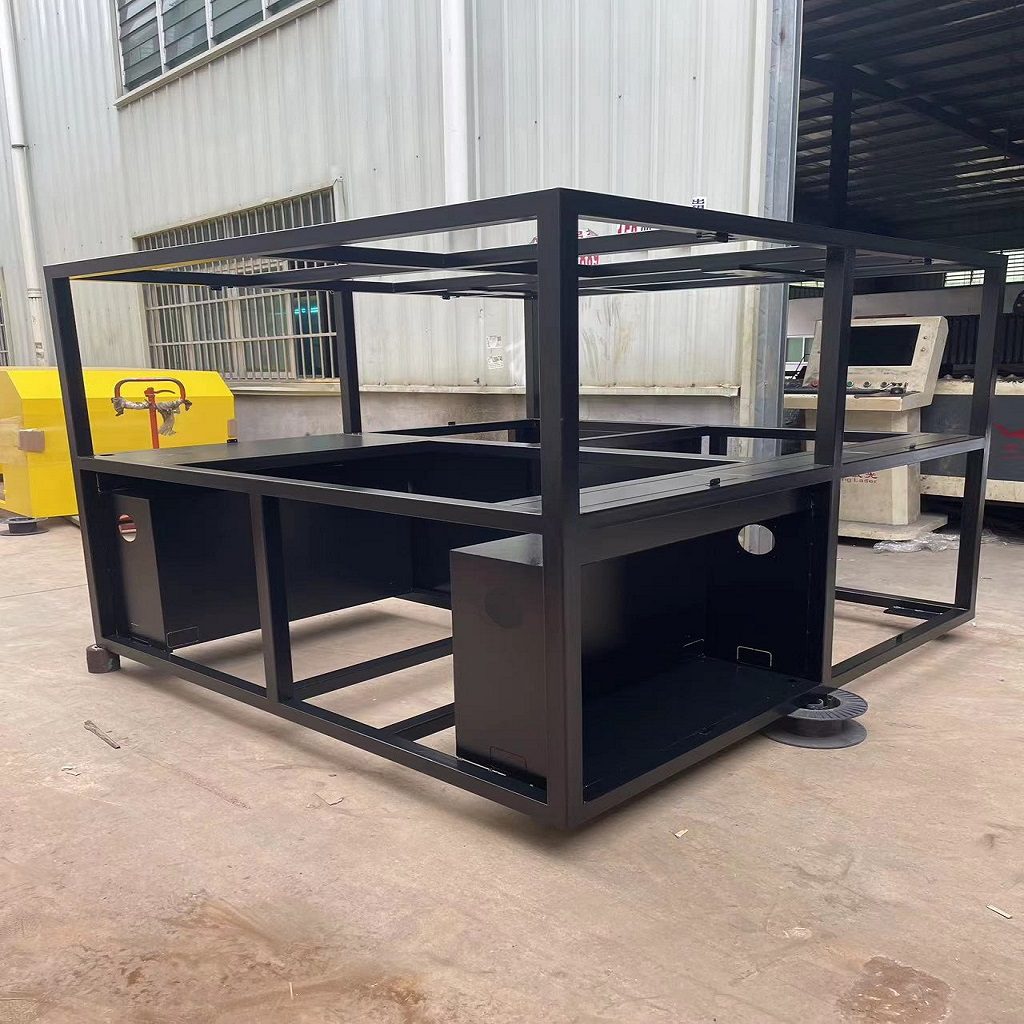

CNC machining

Steel is a widely used material in sheet metal fabrication due to its strength, durability, and affordability. It comes in various grades, such as:

Steel 1018: A low-carbon steel known for its excellent weldability and machinability.

Steel 1010: Another low-carbon steel with good formability and weldability.

Steel 1050: A medium-carbon steel offering higher strength and hardness compared to low-carbon steels.



Aluminum is valued for its lightweight nature, corrosion resistance, and excellent thermal conductivity. Common aluminum alloys used in sheet metal fabrication include:

Aluminum 5052: Offers good formability, corrosion resistance, and high fatigue strength.

Aluminum 6061: Known for its high strength, weldability, and excellent machinability.

Aluminum 7075: Provides exceptional strength-to-weight ratio, ideal for aerospace and high-strength applications.


Stainless Steel

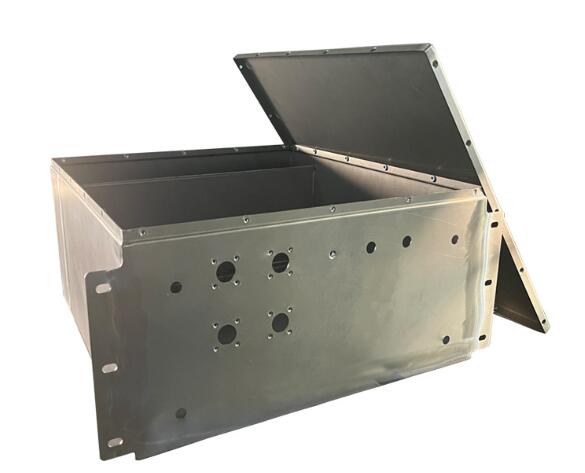

CNC machining

Stainless steel is highly resistant to corrosion, making it ideal for applications where hygiene, durability, and aesthetic appeal are crucial. Common stainless steel grades used in sheet metal fabrication include:

Stainless Steel 304: A widely used austenitic stainless steel with excellent corrosion resistance and formability.
Stainless Steel 316: Provides enhanced corrosion resistance, particularly in marine environments.
Stainless Steel 430: Offers good corrosion resistance and high-temperature strength.



Copper is known for its excellent electrical and thermal conductivity, making it a popular choice for electrical components, heat exchangers, and plumbing systems. Common copper grades used in sheet metal fabrication include:

C11000 (Electrolytic Tough Pitch Copper): This pure copper grade offers high electrical conductivity and excellent formability, making it suitable for electrical applications, roofing, and decorative elements.

C26000 (Cartridge Brass): An alloy of copper and zinc, cartridge brass provides good corrosion resistance, high ductility, and ease of machining. It is commonly used in plumbing fittings, musical instruments, and decorative hardware.



Brass is an alloy composed primarily of copper and zinc, offering good corrosion resistance, excellent machinability, and an attractive golden appearance. Brass grades used in sheet metal fabrication include:

C36000 (Free-Cutting Brass): This brass grade has high machinability and is often used for components requiring intricate shapes and precision machining. It finds applications in electrical connectors, plumbing fixtures, and decorative hardware.

C46400 (Naval Brass): Naval brass is corrosion-resistant and exhibits high strength, making it suitable for marine applications, such as propeller shafts, valves, and fittings.

Galvanized Steel

Galvanized steel is steel coated with a layer of zinc to protect it from corrosion. It offers excellent durability and is commonly used in outdoor applications, including roofing, fencing, and HVAC systems.


Titanium is a lightweight and highly corrosion-resistant metal often used in specialized sheet metal fabrication applications. It finds use in aerospace, medical implants, and chemical processing industries due to its strength, biocompatibility, and resistance to extreme temperatures.

In addition to metals, certain plastic materials can also be used in sheet metal fabrication for specific applications. These plastic materials offer unique properties that make them suitable for certain requirements. Here are some examples of plastic materials used in sheet metal fabrication:

Acrylic (PMMA)

Acrylic is a transparent thermoplastic known for its excellent optical clarity and weather resistance. It is often used for applications where transparency and impact resistance are important, such as display cases, signage, and protective covers.

Polycarbonate (PC)

Polycarbonate is a strong, impact-resistant thermoplastic that offers high clarity and excellent durability. It is commonly used for applications that require both transparency and toughness, such as machine guards, safety shields, and automotive components.

Polyvinyl Chloride (PVC)

PVC is a widely used thermoplastic known for its excellent chemical resistance and flame retardancy. It is commonly used in sheet metal fabrication for applications such as electrical enclosures, pipe fittings, and industrial curtains.

VI. Sheet Metal Surface Finish

In sheet metal fabrication, achieving the desired surface finish is an important consideration. The surface finish not only enhances the appearance of the final product but also affects its functionality and performance. Here are some common surface finishes used in sheet metal fabrication:

Smooth and Unfinished

This is the most basic surface finish option, where the sheet metal is left in its natural state after fabrication. It retains the raw texture of the metal, providing a clean and industrial aesthetic. While this finish is simple, it offers little protection against corrosion, so additional surface treatments may be necessary for certain applications.


Grained Finish

CNC machining

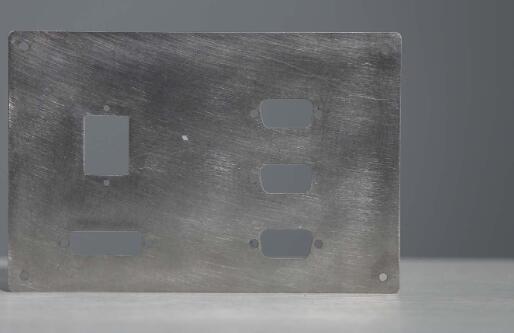

Graining involves creating a uniform pattern of fine lines or brushed texture on the surface of the sheet metal. This finish adds a touch of sophistication to the product while also helping to hide minor imperfections or scratches. Grained finishes are achieved using abrasive pads, sanding, or wire brushing techniques.


Polished Finish

Polishing is a surface treatment that gives the sheet metal a high-gloss, reflective appearance. It involves the use of polishing compounds and buffing wheels to remove imperfections and create a smooth, mirror-like finish. Polished finishes are commonly used in decorative applications where aesthetics are paramount.


Powder Coating

Powder coating is a popular method used to apply a durable, protective finish to sheet metal. It involves applying a dry powder to the metal surface, which is then cured under heat to create a hard, protective coating. Powder coating provides excellent corrosion resistance, durability, and a wide range of color options.



Anodizing is an electrochemical process that enhances the surface of aluminum sheet metal. It forms a thin, protective layer of oxide on the metal, improving its corrosion resistance and adding color. Anodized finishes are commonly used in architectural, automotive, and electronics applications.


The choice of surface finish depends on the desired appearance, functionality, and environmental conditions in which the sheet metal product will be used. It’s essential to consider factors such as durability, corrosion resistance, and the specific requirements of the application when selecting the appropriate surface finish.


VII. The Difference between Fabrication and Sheet Metal

In the realm of manufacturing and metalworking, it’s essential to understand the distinction between fabrication and sheet metal, as these terms refer to different aspects of the production process. Let’s explore the definitions, key differences, and similarities between fabrication and sheet metal:

Explanation of Terms:

Fabrication: Fabrication is a broad term that encompasses the entire process of creating a finished product from raw materials. It involves multiple steps, including cutting, bending, welding, assembling, and finishing, to transform the raw materials into the desired final form. Fabrication can involve various materials, not limited to metal, and is often used in industries such as metalworking, woodworking, plastics, and composites.

Sheet Metal: Sheet metal refers specifically to metal that is formed into thin, flat pieces. It typically comes in standardized thicknesses, known as gauges, and is commonly used in applications where thin, versatile, and lightweight components are required. Sheet metal can be shaped, bent, and formed using various fabrication techniques to create specific parts or products.


Key Differences:

Scope: Fabrication is a broader term that encompasses the entire manufacturing process, including sheet metal fabrication. It involves working with various materials, tools, and techniques to create finished products. On the other hand, sheet metal is a specific type of material that is used within the fabrication process.

Material Focus: Fabrication is not limited to any specific material and can involve metals, plastics, composites, and other materials. In contrast, sheet metal fabrication focuses specifically on working with thin metal sheets, such as steel, aluminum, or stainless steel.

Techniques Used: Fabrication encompasses a wide range of techniques, including cutting, bending, welding, machining, and assembling, which can be applied to different materials. Sheet metal fabrication utilizes specific techniques tailored for working with thin metal sheets, such as shearing, bending, forming, and welding.



Manufacturing Processes: Both fabrication and sheet metal fabrication involve similar manufacturing processes, such as cutting, bending, welding, and assembling, to transform raw materials into finished products.

Precision and Accuracy: they all require precision and accuracy in measurements, layout, and execution of various manufacturing operations. Close attention to detail is crucial to ensure the desired outcome.

Customization: Both fabrication and sheet metal fabrication offer the ability to create custom components and products according to specific requirements. They allow for flexibility in design, enabling the fabrication of unique and tailored solutions.


VIII. The Difference Between Welding and Fabrication

While the terms “welding” and “fabrication” are often used interchangeably in the manufacturing industry, they have distinctly different meanings. To fully understand the sheet metal fabrication process, it’s crucial to discern these differences.

Welding is a specialized technique primarily used to join two or more metal parts together. It’s a key aspect of many manufacturing processes, involving the use of heat to melt the joint areas, causing them to fuse as they cool. There are various types of welding techniques, including but not limited to, TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), and stick welding, each chosen according to the requirements of the project. From creating custom metal stamping die to joining parts of an HVAC system, welding is a vital process in many industries.

CNC machining

However, welding is just one piece of a much larger puzzle.

Metal Fabrication, on the other hand, is an umbrella term that includes a broad array of processes to convert raw material into a finished product. The fabrication process involves several stages, each carried out by skilled tradespeople using specialized tools and machinery.


Here’s a breakdown of the key differences:

Scope: Welding is a singular process, while fabrication is a series of processes, including welding.

Purpose: Welding is used to join two or more metal pieces together. Fabrication, in contrast, includes the transformation of raw materials into a finished product.

Techniques: Fabrication techniques include cutting, bending, forming, and assembling, among others. Welding is one such technique.

Tools: Welding requires specialized tools such as welding machines, electrodes, clamps, and protective gear. Fabrication, on the other hand, involves a range of equipment, including shearing machines, press brakes, and rollers, along with welding machines.

Skills: Welders need to master a variety of welding techniques, understand how different metals react under heat, and be proficient in handling welding tools. Metal fabricators require a wider range of skills, including but not limited to welding, understanding engineering drawings, and proficiency in using a range of machinery.

In short, while welding is a part of the metal fabrication process, it is just one technique in the larger and more complex field of metal fabrication.


IX. Choosing the Right Welder for Sheet Metal

Choosing the right welder is essential for the success of any sheet metal fabrication project. Welding sheet metal, especially thinner gauges, requires precision and skill to avoid burning through the material. Here, we’ll explore some of the most suitable types of welders for sheet metal:

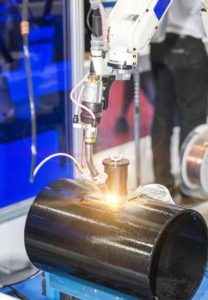

MIG Welding (Metal Inert Gas): MIG welders use a continuous feeding wire that also acts as the electrode. They’re user-friendly, making them a popular choice for beginners. MIG welding is ideal for sheet metal because it provides good control over the thickness of the weld and is suitable for a variety of metals, including steel, stainless steel, and aluminum.

CNC machining

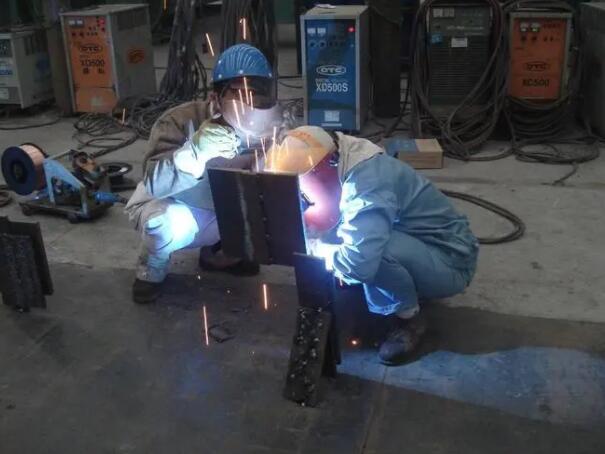

TIG Welding (Tungsten Inert Gas): TIG welders use a non-consumable tungsten electrode. They’re often used for precision work, making them ideal for sheet metal, particularly for aluminum or stainless steel. However, they require more skill and experience to use than MIG welders.

Spot Welding: This technique is commonly used in sheet metal fabrication for joining two pieces of metal together without the need for a filler material. Spot welding is particularly useful in the assembly of sheet metal products, as it is quick, efficient, and causes minimal deformation of the material.

In terms of brand selection, it’s wise to choose a trusted and reliable brand that offers good after-sales service. While the right welder depends on the specific requirements of the job, proper training and safety measures are essential, no matter the type of welder used.


X. The Role of a Metal Fabricator

A metal fabricator plays an instrumental role in the sheet metal fabrication process. They are responsible for the transformation of raw materials into a product, often working with metals such as aluminium, steel, and brass.

The job description of a metal fabricator involves the following duties:

Reading Blueprints: A large part of a fabricator’s job is understanding engineering blueprints, sketches, or detailed drawings. These plans provide the precise specifications that guide the fabrication process.

Cutting and Shaping Metal: Using tools such as shears, plasma cutters, and laser cutters, a fabricator will cut and shape the metal according to the design specifications.

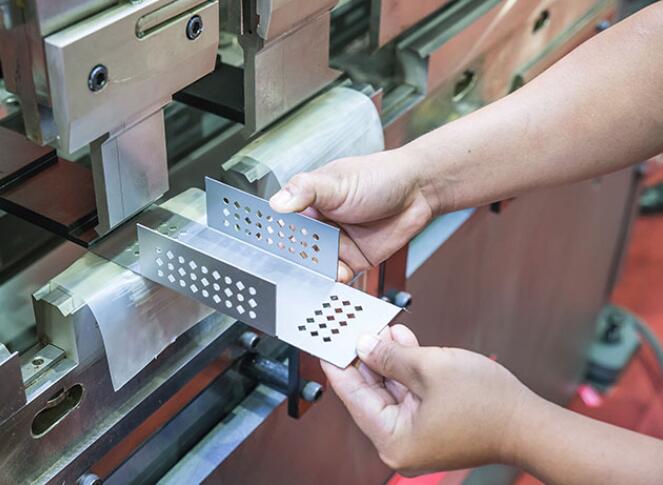

Forming and Bending Metal: Fabricators use specialized machines such as press brakes and other forming equipment to bend or roll the sheet metal into the required shape.

Assembly: After the pieces are cut and formed, they’re assembled into the final product. This often involves welding or other joining techniques, as well as the application of adhesives or fasteners.

Inspection: Metal fabricators are responsible for checking the quality of finished products, ensuring they meet all specifications and quality standards. This involves measuring dimensions, checking for defects, and conducting tests to validate the performance of the product.

Maintenance: Fabricators often also need to maintain and troubleshoot the tools and equipment they use, ensuring everything is in working order.

Whether working in an industrial sheet metal factory or a custom sheet metal shop, a metal fabricator is the cornerstone of the sheet metal industry. They are the ones who bring designs to life and ensure our products, machines, and infrastructure are strong, durable, and precisely crafted.

XI. Welding Sheet Metal: Thickness and Difficulty

Welding sheet metal requires careful consideration of the material’s thickness, as it significantly affects the welding process and difficulty. Here’s a closer look at how thickness impacts sheet metal welding:

Thin Sheet Metal: When dealing with thin sheet metal, typically less than 3 mm thick, the welding process becomes more challenging. Thin sheets are highly susceptible to warping, distortion, and burn-through due to the intense heat generated during welding.
Special care must be taken to avoid overheating or excessive penetration that could weaken the metal. In such cases, precision and control are vital.
TIG welding (Gas Tungsten Arc Welding) is often preferred for thin sheet metal due to its precise heat input and low heat-affected zone. The ability to regulate the weld puddle and use lower amperages makes TIG welding suitable for delicate and thin materials.

Thick Sheet Metal: Thicker sheet metal, typically over 3 mm in thickness, poses different challenges. While less prone to warping and burn-through, thicker sheets require higher welding currents and longer welding times to achieve proper penetration and fusion.
MIG welding (Gas Metal Arc Welding) is often favored for thicker sheet metal due to its higher deposition rate and efficiency. MIG welding can provide sufficient heat input to penetrate and fuse the thicker metal sections more efficiently.

Difficulty Level: Welding sheet metal, regardless of thickness, demands skill and expertise. The thin nature of sheet metal makes it more prone to distortion and requires precise control over the heat input.
Welders must possess a steady hand, knowledge of proper welding techniques, and the ability to adjust welding parameters based on the sheet metal’s characteristics. The challenges increase with thinner materials, as they require even more finesse to avoid overheating and warping.

To master the art of welding sheet metal, practice, experience, and familiarity with the specific metal being welded are crucial. By understanding the nuances of thickness-related challenges and employing appropriate welding techniques, welders can produce high-quality welds on various sheet metal thicknesses.

XII. Design Considerations for Sheet Metal Fabrication

Design plays a crucial role in the success of sheet metal fabrication projects. Considerations at the design stage can greatly impact the overall efficiency, cost-effectiveness, and quality of the final product. Here are key design considerations to keep in mind:

Material Selection: Choosing the right sheet metal material is essential. Factors such as strength, corrosion resistance, formability, and cost must be considered. Different materials have unique characteristics and require specific fabrication techniques.

Sheet Metal Thickness: The thickness of the sheet metal affects its strength, stability, and manufacturability. Thinner sheets are more flexible but may require additional support or reinforcement. Thicker sheets offer greater structural integrity but may be more challenging to form and weld.

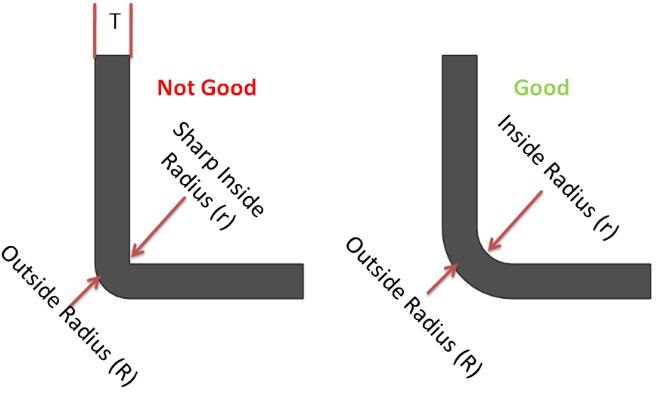

Bend Radius: When designing sheet metal parts that require bending, the bend radius is critical. Sharp bends can lead to cracking or deformation, so it’s important to specify an appropriate bend radius based on the material and thickness.

CNC machining


Holes and Cutouts: Incorporating holes, cutouts, or slots in the design can serve multiple purposes, such as reducing weight, improving airflow, or enabling component integration. Properly positioned and sized holes ensure functionality while maintaining the structural integrity of the sheet metal.

Tolerance and Fit: Clearly define the desired tolerances for the dimensions and fit of the sheet metal parts. Close tolerances may require more precise fabrication techniques and affect the overall cost of production.

XIII. Real World Applications of Sheet Metal Fabrication

Sheet metal fabrication plays a significant role in various industries due to its versatility and adaptability. Here are five common examples of fabrication:

HVAC Systems: HVAC (Heating, Ventilation, and Air Conditioning) systems heavily rely on sheet metal fabrication. Sheet metal is used to create ducts that carry and distribute air throughout buildings. These ducts, made in a sheet metal shop, are often custom-cut and formed for the specific needs of each building. A successful HVAC system installation will require the precise fabrication of these components.

Automobile Industry: The automotive sector also heavily relies on sheet metal fabrication for producing car bodies, chassis, fuel tanks, and other components. Precision sheet metal fabrication enables the creation of complex parts with high accuracy, such as the body panels of a car.

Aerospace Industry: Aircraft, both commercial and military, require a range of sheet metal components. From the aircraft’s body to its tiny internal components, precision sheet metal fabrication enables the manufacturing of these parts with tight tolerances. Custom sheet metal fabrication is critical here as each aircraft model can have unique specifications.

Food and Beverage Equipment: Sheet metal fabrication is used to make equipment like mixers, stainless steel tables, sinks, exhaust hoods, and even large cooking appliances for the food and beverage industry. The process can create both large and small parts, and its versatility makes it an ideal choice for this sector.

Medical Equipment: Medical devices and equipment often require custom sheet metal fabrication. This industry values precision sheet metal fabrication for its ability to deliver parts with high dimensional accuracy, smooth surface finishes, and stringent quality control.

These examples only scratch the surface of sheet metal fabrication applications. From consumer electronics to agricultural equipment, precision metal fabrication is an integral part of our everyday lives.


Sheet metal fabrication is a versatile and essential process in various industries, offering the ability to create precise, lightweight, and customized components. Throughout this guide, we have explored the sheet metal fabrication process, materials used, design considerations, applications, and the challenges of sheet metal welding.

If you’re in need of sheet metal fabrication services, it’s important to partner with reputable and experienced companies that specialize in custom fabrication. Reach out to trusted sheet metal fabrication providers, such as Worth Hardware Co., ltd, to discuss your project requirements.
