What Are Common Quality Issues In Steel CNC Machining And How To Solve Them?

Machining steel presents unique challenges. Ignoring quality issues leads to scrap parts and wasted resources. Understanding common problems is the first step toward better results.

Common quality issues in steel CNC machining include parts being out of tolerance, poor surface finish, and excessive burrs. These often result from rapid tool wear due to steel's hardness, incorrect cutting parameters, or machine vibrations. Solving them involves careful tool selection, optimized speeds/feeds, and rigorous inspection.

Dealing with steel, especially high-strength alloys, really puts CNC machines and tooling to the test. I've seen firsthand how quickly things can go wrong if you're not careful. The result? Parts that don't meet spec, look rough, or need extensive rework.

But don't worry, these problems are manageable once you know what to look for and how to tackle them. Let's break down some common issues and explore how we can ensure top-quality steel parts every time. We need to look closely at the machine itself, the potential defects in the parts, and the safety measures required.

How to solve a CNC machine problem?

Your CNC machine suddenly stops mid-cycle. Production grinds to a halt, threatening your deadlines. You need a clear plan to fix it quickly.

Solving a CNC machine problem usually starts with checking error codes on the control panel. Then, inspect the tooling, workpiece setup, and mechanical components like drives or coolant systems. Reviewing the G-code program for errors is also essential.

When a machine acts up, especially during a critical steel machining job, panic isn't helpful. I always tell my team to approach it systematically. First, what is the machine telling you? Modern CNC controllers often provide specific error codes or messages that point you in the right direction. Check the manual for that code.

If it's not immediately clear, start with the basics. Is the tool intact? Is the workpiece still secure? Is there enough coolant flow? Sometimes, the issue is simple, like a tripped sensor or a minor program glitch.

Other times, it might indicate a deeper mechanical or electrical issue. Keeping detailed maintenance logs helps immensely, as you might spot recurring problems. Don't forget to check the simple things first before assuming the worst – it saves a lot of time.

Systematic Troubleshooting Steps

1. Read the Error Message: Note down any codes or messages displayed on the control panel. Consult the machine's manual.

2. Check the Obvious:

   • Tooling: Is the tool broken, chipped, or excessively worn? This is very common when machining tough steels.
   • Workholding: Is the steel part securely clamped? Vibration from insecure parts causes many issues.
   • Coolant: Is the coolant level sufficient and flowing correctly? Overheating is a major concern with steel.
   • Emergency Stop: Has an E-stop been accidentally triggered?

3. Inspect the Program: Review the G-code, especially around the point where the machine stopped. Look for syntax errors or logical mistakes. Could a specific command be causing the issue, like an incorrect feed rate for steel?

4. Mechanical Checks: Listen for unusual noises. Check axis movement (if safe). Inspect belts, drives, and lubrication levels.

5. Electrical Checks: Look for tripped breakers or fuses in the machine's electrical cabinet (use caution and follow safety procedures).

6. Preventative Maintenance Records: Check logs for past issues or scheduled maintenance that might be overdue. Regular maintenance prevents many problems before they start.

7. Call for Service: If the problem persists after these checks, it might be time to call a qualified service technician. Don't attempt complex electrical or mechanical repairs without proper training.

What are CNC machines' common faults?

CNC machines are complex, and things can go wrong. Unexpected breakdowns mean costly downtime and delays. Knowing common faults helps anticipate and fix them faster.

Common CNC machine faults include tool breakage or excessive wear, spindle problems (like overheating or vibration), axis drive failures, coolant system malfunctions, and errors in the control system or programming. Regular maintenance significantly reduces these occurrences.

Over the years operating Worthy Hardware, I've seen my share of machine faults. While modern CNC machines are reliable, they aren't immune to problems, especially under the stress of machining hard materials like steel day in and day out. Tooling issues are perhaps the most frequent – steel is tough on cutters.

But beyond that, spindles can develop issues, axes might lose accuracy, or the control system could glitch. Understanding these common points of failure helps us implement better preventative maintenance schedules and diagnose problems quicker when they do arise. It's all about minimizing that expensive downtime.

Breakdown of Common Faults

Let's look at some frequent issues we encounter:

• Tooling Problems:
  • Issue: Rapid wear, chipping, or outright breakage. This is especially true when machining hard or abrasive steels. My own insight is that high-strength steel really accelerates this wear.
  • Cause: Incorrect tool material/coating for steel, wrong speeds/feeds, insufficient coolant, tool holder issues, machine vibration.
  • Impact: Poor surface finish, dimensional inaccuracy, potential damage to the workpiece or machine.
• Spindle Issues:
  • Issue: Overheating, unusual noise, vibration, runout (wobble).
  • Cause: Bearing wear, imbalance, lubrication failure, crashes, continuous high-load operation (common with heavy steel cuts).
  • Impact: Inaccurate machining, poor surface finish, tool life reduction, potential for catastrophic failure.
• Axis Drive/Mechanical Faults:
  • Issue: Positioning errors, jerky movement, excessive noise, axis drift.
  • Cause: Worn ball screws or linear guides, motor problems, feedback device (encoder) failure, lubrication issues, collisions.
  • Impact: Dimensional errors, poor surface quality, potential machine damage.
• Coolant System Failures:
  • Issue: No flow, low pressure, leaks, contamination.
  • Cause: Pump failure, clogged lines or filters, low coolant level, incorrect coolant mixture.
  • Impact: Tool overheating and failure (critical in steel machining), poor surface finish, potential part warping due to heat.
• Control System/Electrical Errors:
  • Issue: Random errors, program execution problems, screen freezes, communication loss.
  • Cause: Power fluctuations, component failure (boards, drives), software bugs, corrupted data, loose connections.
  • Impact: Machine stoppage, unpredictable behavior, lost production time.

Regular checks on lubrication, coolant, filters, and tool condition, along with listening for any changes in machine sound, can catch many of these faults early.

What are the defects of CNC parts?

You've outsourced your CNC machining, but the parts arrive defective. This wastes time, money, and delays your product launch. Knowing common defects helps improve quality control.

Common defects in CNC parts include dimensional inaccuracies (out of tolerance), poor surface finish (roughness, tool marks), burrs on edges, geometric errors (like roundness or flatness issues), and sometimes material damage like scratches or dents.

Ensuring part quality is paramount, especially for clients like Mark Chen who value quality alongside competitive pricing. When machining steel, certain defects are more common due to the material's properties and the forces involved.

At Worthy Hardware, our 100% inspection process catches these issues, but it's crucial to understand their root causes to prevent them in the first place. Defects often point back to issues with the machining process, tooling, or the machine itself. Recognizing these defects is the first step towards consistently producing perfect steel components.

Deeper Dive into Steel Part Defects

Machining steel requires careful control to avoid common flaws. Here are some specifics:

• Dimensional Inaccuracy (Out of Tolerance):

  • Description: Features measure outside the specified limits on the drawing (e.g., hole diameter too large, length too short).
  • Steel-Specific Causes: Rapid tool wear (causing dimensions to drift), machine deflection under heavy cutting forces, thermal expansion of the workpiece during machining, incorrect tool offsets, vibration. Achieving tight tolerances, like the +/- 0.001" we offer, requires constant monitoring when machining steel.
  • Prevention: Use appropriate tooling, monitor tool wear closely, optimize cutting parameters (depth of cut, feed rate) to minimize force, use ample coolant, perform in-process measurements, ensure machine rigidity and accuracy.

• Poor Surface Finish:

  • Description: Surfaces are rougher than specified (high Ra value), show visible tool marks, chatter marks, or burns.
  • Steel-Specific Causes: Incorrect speeds and feeds, worn or chipped tool cutting edges, insufficient or poorly directed coolant, machine vibration (chatter), built-up edge (material welding to the tool tip). My insight confirms that harder steels often lead to rougher surfaces if parameters aren't perfect.
  • Prevention: Optimize cutting parameters, use sharp tools with correct geometry and coating, ensure stable setup, use high-pressure coolant, consider finishing passes with lighter cuts. Our standard is 125 Ra or better, but finer finishes require specific strategies.

• Burrs:

  • Description: Sharp, raised edges left on the part after machining.

  • Steel-Specific Causes: Steel's ductility allows material to deform rather than shear cleanly, especially with dull tools or incorrect cutting geometry. Exit points of cuts are particularly prone to burrs.

  • Prevention/Solution: Use sharp tools, optimize toolpaths (e.g., climb milling vs. conventional), adjust feed rates, design features to minimize burr-prone exits where possible. Deburring (manual or automated) is often required, and we handle this by default, breaking sharp edges unless specified otherwise.

• Geometric Errors:

  • Description: Deviations from ideal shapes, like out-of-round holes, non-flat surfaces, or features not being perpendicular.
  • Steel-Specific Causes: Machine inaccuracies (axis perpendicularity, spindle runout), workpiece flexing under clamping or cutting pressure, uneven tool wear.
  • Prevention: Use accurate and well-maintained machines, proper workholding techniques, stress-relieving processes for the material if needed, appropriate cutting strategies. Adhering to GD&T callouts is vital here.

Understanding these potential defects allows us, as a supplier, to implement robust quality control measures, from process design to final inspection, ensuring our customers receive steel parts that meet their exact specifications.

What are the specific safety precautions to be taken when working with CNC milling machines and equipment?

CNC machines are powerful tools, but they pose risks. Ignoring safety can lead to severe injuries. Following strict precautions is essential for operator well-being.

Specific safety precautions for CNC milling include wearing safety glasses, ensuring all machine guards are in place and functional, never reaching into the machine while it's operating, using proper lifting techniques for heavy steel parts, and knowing emergency stop procedures.

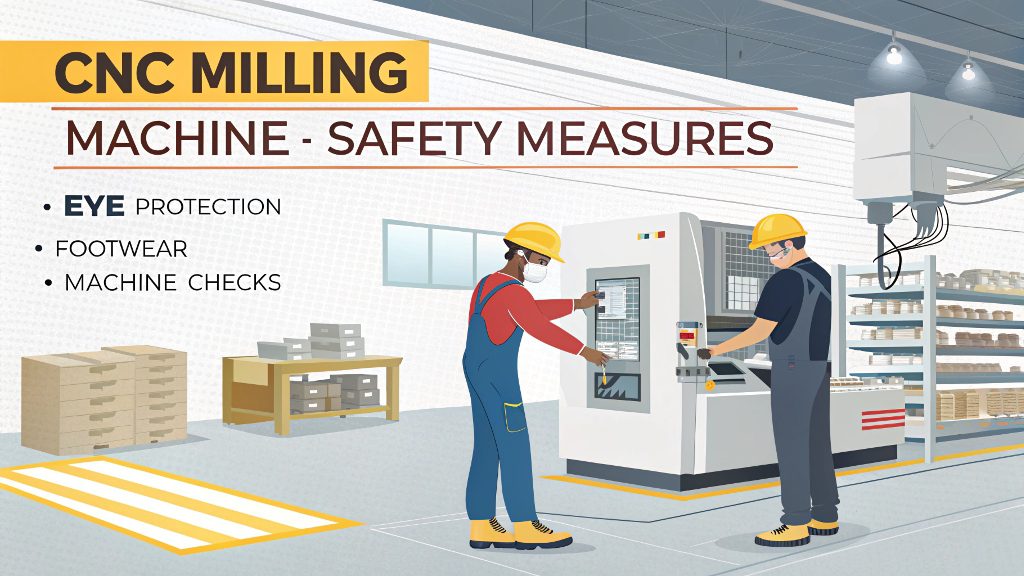

Safety is non-negotiable in any machine shop, and CNC milling operations have their own specific hazards. Working with steel adds elements like sharp, hot chips and potentially heavy workpieces. At Worthy Hardware, operator safety is as important as part quality.

We ensure everyone is trained on proper procedures and understands the risks involved. Simple steps, consistently followed, make a huge difference in preventing accidents. From personal protective gear to machine checks, every precaution matters.

Key Safety Measures for CNC Milling Steel

Operating CNC milling machines safely requires constant awareness and adherence to procedures. Here's a breakdown:

1. Personal Protective Equipment (PPE):

   • Eye Protection: Mandatory. Safety glasses with side shields or goggles protect against flying chips (which can be hot and sharp with steel) and coolant splash.
   • Footwear: Sturdy, closed-toe shoes, preferably safety shoes with steel toes, especially when handling heavy steel stock or parts.
   • Clothing: Avoid loose clothing, jewelry, or long hair that could get caught in moving parts.
   • Gloves: Use caution. While gloves protect hands from sharp edges and hot chips during handling, they should generally not be worn when operating the machine controls or working near the rotating spindle, as they can get caught. Use appropriate cut-resistant gloves for handling raw stock and finished parts.

2. Machine Guarding:

   • Ensure all door interlocks and safety guards are functioning correctly. Never bypass or disable safety features. Keep enclosure doors closed during operation.

3. Workpiece and Tool Handling:

   • Securely clamp the steel workpiece. Use appropriate vices or fixtures. Improper clamping can lead to the part coming loose during heavy cuts, causing damage or injury.
   • Handle cutting tools carefully; they are sharp. Use tool holders correctly.
   • Use proper lifting techniques or mechanical aids for heavy steel blanks or fixtures.

4. Operation:

   • Never reach into the machining area while the spindle or axes are moving. Wait for all motion to stop completely.
   • Know the location and function of all Emergency Stop buttons.
   • Pay attention to the machine's sounds and movements. Stop the machine if anything seems unusual.
   • Keep the area around the machine clean and free of clutter, oil, or coolant spills to prevent slips and falls.

5. Maintenance:

   • Follow proper Lockout/Tagout (LOTO) procedures before performing any maintenance or cleaning inside the machine enclosure. This ensures the machine cannot be accidentally started.

Training is crucial. Operators must understand the specific risks associated with the machine, the material (steel), and the process before they begin work.

Conclusion

Effectively machining steel requires addressing potential quality issues like tolerances, finish, and burrs, often by managing tool wear and parameters. Understanding common machine faults, part defects, and prioritizing safety ensures consistent, high-quality results.
