How To Prevent Warping And Distortion During Metal Welding Processes?

Welding projects ruined by unexpected warping? This wastes material, time, and money. Learn how to control welding distortion for perfect results every time.

Prevent welding distortion by designing smart structures, using proper assembly techniques like clamping, and choosing the right welding process and parameters. Control heat input carefully to minimize the stresses that cause bending and warping.

Seeing warped metal after welding is frustrating. I've seen it happen many times, especially early in my career. But distortion isn't random luck. There are clear reasons why it happens, and practical ways to stop it. Let's break down exactly how you can achieve flat, accurate welds consistently. Understanding the 'why' behind the problem really helps us fix the 'how'. We can get those perfect parts you need.

How to prevent warpage and distortion of the weld?

Unsure how to stop your welded parts from bending? This uncertainty can cost you money in rework and project delays. Follow proven steps to prevent distortion before it starts.

Actively prevent distortion by optimizing the joint design, using rigid fixtures or strong tack welds for restraint during welding, and applying balanced welding sequences. Preheating or controlling interpass temperature also helps manage stress effectively.

Preventing warpage really starts before the first arc is struck. It involves thinking about the whole process. At Worthy Hardware, we focus on three main areas: structure design, assembly methods, and the welding process itself.

Smart Structure Design

The way a part is designed significantly impacts distortion.

• Symmetry: Symmetrical designs often distort less because stresses balance out. If possible, design parts symmetrically around the weld.

• Joint Type: Some joint types inherently cause more distortion than others. For example, a single-V butt joint often distorts more than a double-V butt joint because the heat and shrinkage are less balanced. We try to choose joints that minimize shrinkage stress.

• Minimize Weld Metal: Using less weld metal reduces the amount of contracting material. Design joints that require the minimum necessary weld volume for strength. Sometimes a small change in groove angle makes a big difference.

Proper Assembly & Fixturing

How parts are held together during welding is critical.

• Clamping: Using strong clamps, jigs, and fixtures holds the parts firmly in place, resisting the forces of contraction. The fixture must be strong enough to counteract the welding stresses.

• Tack Welds: Proper tack welding secures the parts before final welding. Strong, well-placed tacks can significantly reduce distortion.

• Presetting: Sometimes, we intentionally misalign parts before welding, bending them slightly in the opposite direction of the expected warp. As the weld cools and contracts, it pulls the parts into the correct final alignment. This requires experience to get right.

Optimized Welding Process

The welding technique itself is a major factor.

• Heat Input Control: Lower heat input generally means less distortion. This involves optimizing voltage, amperage, and travel speed. Sometimes choosing a different process (like laser welding if suitable) helps.

• Welding Sequence: Applying welds in a specific order can balance stresses. Techniques like back-step welding (welding short segments in the opposite direction of overall progress) or skip welding (alternating segments) break up heat concentration. Balanced welding, like alternating sides of a joint, is also very effective. We carefully plan the sequence for complex assemblies.

What are the three methods of controlling distortion during when welding?

Need specific, reliable techniques to fight distortion? Guesswork leads to inconsistent quality and wasted parts. Master three core methods for reliable distortion control in your projects.

The three main methods for controlling welding distortion are: using mechanical restraint (like fixtures and clamps), applying pre-distortion (presetting the parts), and carefully managing heat input and welding sequence to minimize or balance thermal stresses.

When we talk about controlling distortion during the welding process,
we usually rely on three core strategies. These are practical things our team at Worthy Hardware uses every day. Getting these right makes a huge difference in the final quality of sheet metal fabrications.

Method 1: Mechanical Restraint

This is probably the most common method. It involves physically holding the workpiece to prevent it from moving as it heats and cools.

• How it Works: We use strong clamps, heavy jigs, strongbacks (rigid beams temporarily attached), and well-placed tack welds. These act like an external skeleton, resisting the powerful shrinkage forces that try to pull the metal out of shape.

• Key Point: The restraint needs to be strong enough to overcome the expected forces. For thick materials or high-stress welds, very robust fixturing is essential. We have experience designing fixtures for complex parts to maintain tight tolerances.

Method 2: Pre-Distortion (Presetting)

This method is clever but requires skill. You intentionally deform the parts before welding in the opposite direction of the expected distortion.

• How it Works: If you know a T-joint will pull the flange upwards (angular distortion), you might slightly bend the flange downwards before welding. As the weld cools and contracts, it pulls the flange up into the desired flat or 90-degree position.

• Key Point: Calculating the right amount of preset comes from experience or careful analysis. Too little won't work, and too much creates the opposite problem.

Method 3: Heat Management & Sequence

This focuses on minimizing the cause of the stress in the first place – the intense, localized heat.

• How it Works: We aim to put less heat into the part overall, or to distribute the heat more evenly. This includes using lower welding currents, faster travel speeds (if possible without compromising fusion), choosing processes with lower heat input (like laser welding vs. traditional TIG for some applications), and using specific sequences.

• Sequences: Balanced welding (alternating sides), back-step welding (short welds opposite to progression), and skip welding (leaving gaps and filling later) all help prevent heat buildup in one area. This reduces the peak stresses and overall distortion. Our engineers often specify precise welding sequences for critical jobs.

How can distortion warping and cracking be controlled in welding?

Are you facing both distortion and cracking in your welds? These defects seriously compromise structural integrity and safety. Learn integrated strategies to control both issues effectively together.

Control distortion, warping, and cracking by reducing residual stress. Use proper joint design, preheating (especially for thick or alloy materials), controlled cooling rates, correct filler metal selection, and appropriate, careful welding techniques.

Distortion and cracking are often linked. Both are usually caused by high levels of residual stress left in the metal after welding. When the stress is high enough to deform the metal permanently, you get distortion (warping). If the stress exceeds the material's tensile strength, especially when the part is highly restrained or has stress concentrations, you get cracking. So, controlling one often helps control the other.

Understanding the Link

Think of it like stretching a rubber band too far. Stretch it a bit, it snaps back (elastic). Stretch it more, it stays stretched (plastic deformation, like distortion). Stretch it even further, or if it has a small nick, it breaks (cracking). High stress from welding acts similarly on metal. Factors that increase stress (like thick materials, complex joints, rigid restraint, fast cooling) increase the risk of both distortion and cracking.

Combined Control Strategies

We use a combination of techniques at Worthy Hardware, considering both potential problems:

• Reduce Stress Input: All the methods for distortion control help here – good joint design (avoid sharp corners!), minimum weld metal, balanced sequences, heat input control.

• Material Considerations: Choose materials less prone to cracking if possible. Ensure the filler metal is compatible with the base metal and provides sufficient strength and ductility.

• Preheating: Heating the part before welding slows the cooling rate of the weld area. This reduces the peak stress levels and gives hydrogen (a common cause of cracking) time to escape. It's crucial for thicker sections, high carbon steels, and many alloys.

• Controlled Cooling (Post-Weld Heat Treatment - PWHT): Sometimes, after welding, the entire assembly is heated in a furnace to a specific temperature and held there, then cooled slowly. This relieves a significant amount of residual stress, greatly reducing risks of both distortion and delayed cracking.

• Proper Technique: Avoiding weld defects like undercut or lack of fusion is vital, as these act as stress risers where cracks can start. Ensuring good penetration and bead shape is part of welder skill and procedure control.

By considering these factors together, we can reliably produce strong, dimensionally accurate welded components.

What causes welding distortion warpage and stresses?

Do you wonder why welding makes solid metal bend and twist? Ignoring the root cause makes prevention much harder. Understand the basic science behind welding stresses and distortion.

Welding causes distortion because of uneven heating and cooling. The intensely heated weld zone expands, then contracts forcefully as it cools. If this contraction stress is stronger than the metal's yield strength, permanent deformation (warping or distortion) occurs.

The fundamental reason metal distorts during welding comes down to physics – specifically, how metals react to heat. When you understand this basic mechanism, the prevention methods make a lot more sense. I remember early projects where parts came out bent, and learning this was key to improving quality.

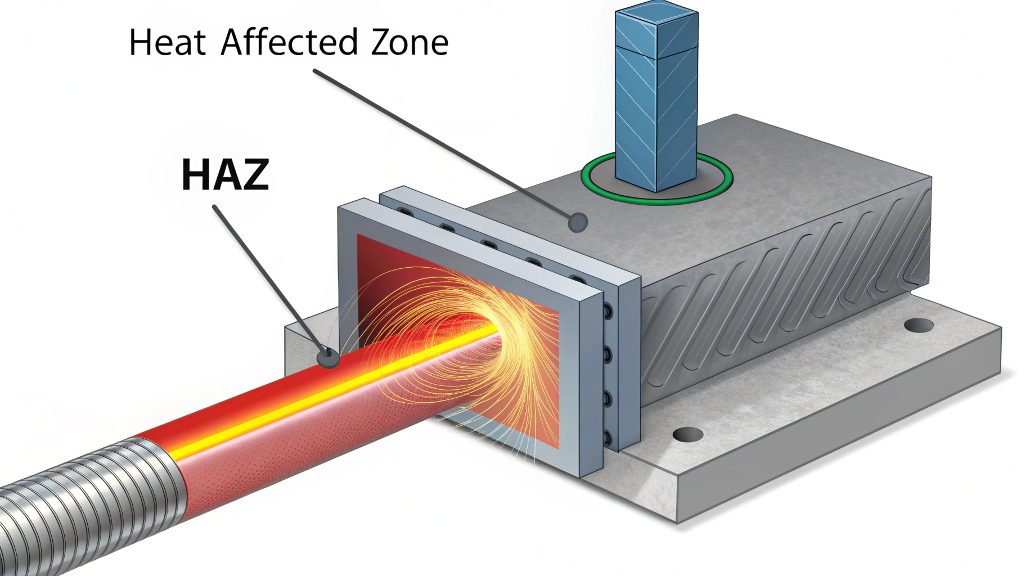

The Role of Intense, Localized Heat

Welding introduces a very large amount of heat into a very small area, very quickly. The metal in the weld pool melts, and the metal right next to it (the Heat Affected Zone or HAZ) gets extremely hot, though it doesn't melt. The rest of the component stays relatively cool.

Expansion and Contraction

Metal expands when heated and contracts when cooled. This is the core principle.

1. Heating/Expansion: The hot weld metal and HAZ try to expand. But the surrounding cooler, stronger metal resists this expansion. The hot, weaker metal might get slightly compressed or bulge.

2. Cooling/Contraction: As the weld area cools down, it tries to shrink back to its original size, and then some (because it might have been compressed while hot). This contraction is very powerful.

3. Unevenness: The weld cools much faster than the bulk of the material. This difference in temperature and contraction across the part creates internal forces.

Stress Development

These internal pulling forces are called residual stresses. They are locked into the part even after it has completely cooled down. Imagine tiny internal springs being stretched and held tight.

Exceeding Yield Strength

Every metal has a 'yield strength' – the amount of stress it can take before it stops springing back and permanently deforms.

• If the residual stresses from the cooling contraction are less than the yield strength, the part might have internal stress, but it won't be visibly distorted.

• If the residual stresses exceed the yield strength, the metal must deform to relieve that stress. This permanent deformation is what we see as warpage or distortion.

Based on my experience and the insights I shared, the types of distortion depend on how these stresses act:

Understanding that welding stress is the direct cause, and it comes from uneven heating/cooling, helps us target our prevention methods effectively.

Conclusion

Preventing welding distortion needs careful planning and control before and during welding. Use smart design, proper restraint, and manage heat input effectively. This ensures quality, accurate welds every time.
