How Do Material Properties Affect CNC Machining Tolerances And Costs?

Struggling with project costs and precision? Material choice might be the culprit. The wrong material can skyrocket expenses and make tight tolerances nearly impossible to achieve.

Material properties, such as hardness, thermal stability, and ductility, directly impact tool wear, machining speed, and the ability to hold tight tolerances. This significantly influences both the final part cost and its precision.

Choosing the right material is a big deal in CNC machining. It's not just about what the final part needs to do. It also greatly affects how easy or hard it is to make the part. This choice touches everything from how long our tools last to how precise we can get, and of course, the final price tag. I've seen many projects where a small change in material made a huge difference. We need to look at this carefully to get the best results for your parts. So, let's explore this more.

What are the tolerances for CNC machining?

Unsure what precision levels are actually possible? CNC machining tolerances can seem complex. Understanding them is key to getting the parts you really need without overpaying.

CNC machining tolerances define the permissible limit of variation in a part's dimensions. Standard tolerances are often +/- 0.005 inches, but tighter precision, like +/- 0.001 inches or less, is achievable depending on various factors.

When we talk about tolerances in CNC machining, we are talking about how much a finished part's size can differ from the planned size on the design. It's a very small range of acceptable error. At Worthy Hardware, we work with a standard tolerance for metals, which is usually +/- 0.005 inches, or about +/- 0.127 millimeters. This is guided by a standard called ISO 2768. For plastics and composites, this standard is a bit wider, at +/- 0.010 inches.

However, many projects need much finer control. We can make parts with very tight tolerances, sometimes even smaller than +/- 0.001 inches. This depends on what your drawings and GD&T (Geometric Dimensioning and Tolerancing) callouts ask for. Achieving these tighter tolerances means we need to carefully control the machine, use specific tools, and sometimes even adjust for the material we are cutting. It's a balance of machine capability, material behavior, and skilled operation. I remember one project where we had to hold a 0.0005-inch tolerance on an aluminum part; it took careful planning and multiple checks, but we got it done.

How does machining affect material properties?

Worried machining might weaken your parts? The cutting process itself can indeed change materials. It's important to know how these changes occur and what they mean for your design.

Machining can alter a material's surface hardness through work hardening, introduce internal stresses, or change its microstructure due to heat generated during cutting. These effects can impact the part's performance.

When we cut metal or plastic with a CNC machine, it's not just about removing material to get the right shape. The process itself can change the material. One common effect is called work hardening. This happens mostly with metals. As the cutting tool presses and cuts, the surface layer of the material can become harder than the material deeper inside. This can be good for wear resistance sometimes, but it can also make further machining on that surface more difficult.

Another thing is residual stress. The forces from cutting and the heat generated can create stress within the part. If these stresses are not managed, they might cause the part to warp or change shape slightly over time, or even after it's put into use. We also see thermal effects. The cutting process generates heat.

For some materials, especially certain plastics or metals that are sensitive to heat treatment, this can alter their microstructure or create a heat-affected zone near the cut surface. This might change properties like strength or brittleness. We always try to use sharp tools, appropriate cutting speeds, and coolant to minimize these unwanted changes. Understanding these potential changes helps us select the best machining strategies for each specific material.

What factors should be taken into consideration when selecting stock for CNC machining?

Overwhelmed by material choices? Selecting the right stock is critical for success. Many factors beyond just the final application need careful thought to avoid problems later on.

Key factors include the material's machinability, required mechanical properties (like strength and hardness), overall cost, availability, and the specific end-use application of the machined part.

Choosing the right raw material, or stock, for a CNC machining project is a very important step. It's not just about what the final part needs to do; it's also about how easy and cost-effective it is to make it. Here are some main things I always consider:

Key Material Selection Factors

For example, aluminum like 6061 is popular because it's relatively easy to machine, has good strength-to-weight, and is cost-effective. But if a part needs high wear resistance, we might look at tool steel, which is much harder and more expensive to machine. Or if it's for a medical device, PEEK might be chosen for biocompatibility, despite its higher material and machining costs. My team and I at Worthy Hardware have experience with over 100 materials, from common metals like aluminum and steel to specialized plastics and even carbon fiber, so we can help guide this selection.

What are the factors influencing the selection of CNC machines?

Is your chosen shop using the right machine? The CNC machine itself plays a huge role. Different machines are suited for different materials, part sizes, and complexities.

Machine selection depends on part size and complexity (e.g., 3-axis vs. 5-axis), the material being machined, the required precision, production volume, and of course, the available budget.

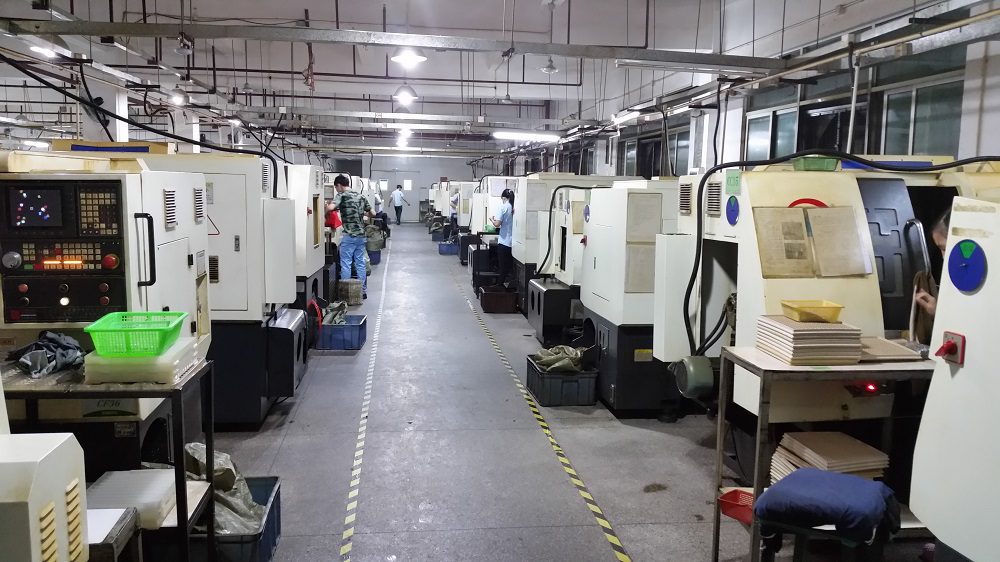

Choosing the correct CNC machine for a job is just as important as choosing the right material or cutting tools. Not all CNC machines are the same, and using the wrong one can lead to inefficiencies, poor quality, or higher costs. When we at Worthy Hardware decide which of our machines to use for a customer's parts, we consider several things.

First, part size and geometry are key. We have milling machines that can handle parts up to 80 inches long and lathes for parts up to 62 inches in length. The complexity also matters. Simple parts might be fine on a 3-axis machine, but more complex shapes with undercuts or angled features often require a 5-axis CNC machine.

The material being machined is another big factor. Harder materials like hardened steel or titanium require machines with greater rigidity, spindle power, and torque to cut effectively without excessive vibration or tool wear. Softer materials like aluminum or plastics can be machined on lighter-duty machines.

The required tolerances also guide machine choice. To achieve very tight tolerances, like the sub +/- 0.001 inches we can manage, we need to use our most precise machines, which have better control systems, thermal stability, and build quality. Finally, production volume plays a part. For prototypes or small runs, setup time is a bigger factor than cycle time per part. For high-volume CNC machining, we look for machines that can run faster and perhaps have automation features. It's all about matching the job's needs to the machine's capabilities to get the best quality at a good value.

Conclusion

Material properties are fundamental. They directly influence CNC machining tolerances and overall project costs, so careful selection is essential for success.

If you need custom CNC machined parts, I'm Sandra Gao from Worthy Hardware in China. We specialize in CNC machining, milling, turning, and offer services like aluminum machining and various surface finishes. We handle everything from prototypes to high-volume production, ensuring 100% inspection and tight tolerances. Feel free to reach out at [email protected] or visit www.worthyhardware.com to discuss your project.
