How Does Laser Cutting Compare to Waterjet Cutting for Precision Projects?

Struggling with material distortion on precise parts? Heat can ruin delicate work. We offer cutting solutions that maintain your material's integrity for perfect results.

Waterjet cutting is often better for precision projects needing no heat distortion. Laser cutting is fast and precise but introduces heat. Waterjet uses high-pressure water, sometimes with abrasives, for a cold cut.

Choosing the right cutting method is vital for your project's success. You need a method that matches your material, desired precision, and budget. Let's explore these two popular methods further to help you decide which one is best for your specific needs. I want you to feel confident when you make your next manufacturing decision.

Is Laser Cut Better Than Waterjet Cut?

Choosing between laser and waterjet can be tricky. You want the best cut, but what does "better" mean? It depends on your project's specific needs.

Neither laser nor waterjet cutting is universally "better." Laser cutting excels in speed for thinner metals. Waterjet cutting is versatile, handling thicker materials and heat-sensitive ones without thermal distortion.

When I talk to clients like Mark from Canada, who needs quality parts at competitive prices, the discussion often comes down to the material and the end-use. Laser cutting uses a focused beam of light to melt, burn, or vaporize material. This makes it very fast and efficient, especially for sheet metal like steel or aluminum. We can achieve very tight tolerances with our laser cutters, often down to +/- 0.005 inches. However, this process introduces heat. This is what we call a Heat Affected Zone (HAZ). For some materials, this isn't an issue. For others, it can cause warping or change the material's properties.

Waterjet cutting, on the other hand, is a cold cutting process. It uses a super high-pressure stream of water, often mixed with an abrasive like garnet. Because there's no heat, there's no HAZ. This is a huge advantage for materials like certain aluminum alloys, titanium, composites, or even plastics and stone that would be damaged by heat. It's also great for thicker materials where a laser might struggle or create a tapered edge.

Here's a simple breakdown:

So, if Mark is cutting standard steel sheets for a general application, laser cutting might be faster and more cost-effective. But if he's working with a heat-sensitive alloy or a very thick material, waterjet is likely the superior choice. We always discuss these trade-offs to ensure the best outcome.

What Is the Most Precise Cutting Method?

You need parts that fit perfectly every time. So, which cutting method offers the absolute highest precision? It’s a common question I get.

The "most precise" method depends on the material and specific needs. Both laser and waterjet offer high precision. For extreme tolerances, methods like Wire EDM exist but serve different applications.

When we talk about precision in cutting, we're looking at several factors. These include how tight the tolerances can be (the allowable deviation from a specified dimension), the kerf width (the width of the material removed by the cutting process), and the smoothness of the cut edge. Both laser cutting and waterjet cutting are known for their high precision capabilities. At Worthy, our laser cutters can consistently achieve tolerances of +/- 0.005 inches, and even tighter upon review. This is fantastic for most sheet metal fabrication projects.

Waterjet cutting can also achieve similar levels of precision, often in the range of +/- 0.005 to +/- 0.010 inches. The precision of a waterjet can be influenced by the nozzle speed, the quality of the abrasive, and the machine's control system. Because it's a cold process, there's no risk of material distortion due to heat, which helps maintain dimensional accuracy, especially on delicate or complex parts.

I remember a project for an aerospace client where the material was extremely sensitive to thermal changes; waterjet was the only way to achieve the required precision without compromising material integrity. For most industrial applications, both methods offer excellent precision. The choice often comes down to material compatibility and other factors like edge finish or the presence of a HAZ.

How Precise Is Laser Cutting?

You're considering laser cutting but need to know exactly how accurate it can be. Will it meet your project's demanding specifications for fit and finish?

Laser cutting is very precise, typically achieving tolerances of +/- 0.005 inches (0.127mm). Some advanced systems can reach even tighter tolerances, like our capability down to 0.001mm on request.

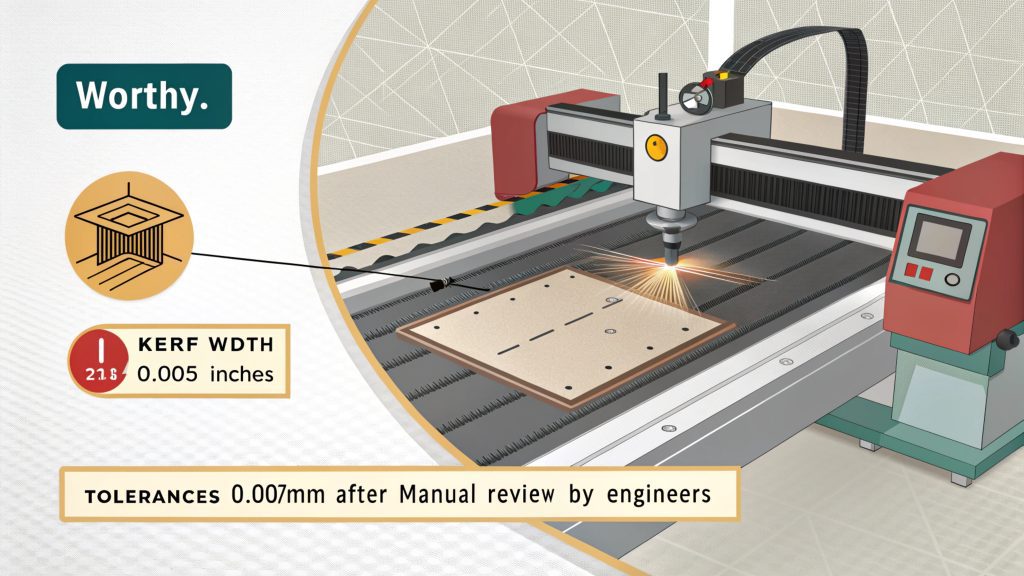

Laser cutting precision is one of its main advantages. At Worthy, our standard auto-quoted tolerance for laser cutting is +/- 0.005 inches. For many of our clients, like those in the electronics or medical device industries, this level of accuracy is crucial. We can even push this further for special projects, achieving much tighter tolerances, sometimes down to an incredible 0.001mm after a manual review by our engineers. This capability comes from a combination of advanced machinery and skilled operation.

Several factors contribute to the precision of laser cutting:

• Beam Quality: A well-focused, high-quality laser beam creates a narrower kerf (the width of the cut). Our typical kerf width is very small, minimizing material waste.

• Machine Calibration: Our machines are regularly calibrated to ensure accuracy.

• Material Type and Thickness: Different materials react differently to the laser. We adjust settings like power and speed accordingly. For instance, cutting 0.024” thick aluminum requires different parameters than 0.250” thick steel.

• Assist Gas: The type and pressure of the assist gas (like oxygen or nitrogen) can affect the cut quality and precision by clearing molten material efficiently.

I recall a client, a startup developing a new consumer electronic device, who needed intricate enclosure parts. The fit between components had to be perfect. Our laser cutting precision ensured every part slotted together seamlessly, saving them assembly time and headaches. This level of precision means less post-processing and better final products for our customers.

What Is the Main Reason Waterjet Cutters Are Often Preferred Over Laser Cutters for Airplane Manufacturing?

Airplane parts demand the highest standards. Why is waterjet often the go-to for these critical components over laser, especially when lasers are so precise?

Waterjet cutters are preferred for airplane manufacturing mainly because they impart no heat into the material. This avoids thermal stress or changes to the material's properties, which is critical for aerospace alloys.

The aerospace industry relies heavily on materials like titanium, high-strength aluminum alloys, and advanced composites. These materials are chosen for their specific properties – strength-to-weight ratio, corrosion resistance, and fatigue life. The key insight here, which I always emphasize to my team and clients, is that laser cutting is a thermal process. It melts or vaporizes material. This creates a Heat Affected Zone (HAZ) along the cut edge. In this zone, the material's microstructure and properties can change. For many general applications, this isn't a concern. But for an airplane wing spar or a critical engine component, any unintended alteration of material properties can be a serious safety issue.

Waterjet cutting, being a cold cutting process, completely avoids this problem. It uses mechanical erosion, not heat. This means:

• No HAZ: The material properties right up to the cut edge remain unchanged.

• No Thermal Stress: Complex parts can be cut without warping or introducing internal stresses that could lead to premature failure.

• Material Versatility: Waterjets can cut almost any material used in aerospace, including stacked materials or composites that lasers might struggle with or damage.

• Thick Materials: Airframe components can be quite thick, and waterjets handle these thicknesses efficiently.

We've worked on projects involving aerospace-grade titanium, and waterjet cutting was specified precisely for these reasons. It ensures the part maintains its full design strength and integrity. This focus on maintaining material properties is why, despite the precision of laser cutting, waterjet often wins out in critical airplane manufacturing
applications.

Conclusion

Choosing between laser and waterjet depends on your material and precision needs. Waterjet offers cold cutting; laser is fast but adds heat. Both are highly precise.
