How Does Heat Treatment Affect the Strength of CNC Machined Parts?

Are your CNC machined parts failing under stress? This often leads to costly replacements and project delays. Heat treatment offers a powerful solution to significantly increase part strength and durability.

Heat treatment fundamentally changes a material's internal microstructure. By carefully controlling heating and cooling, we can modify grain size and phase composition. This results in increased hardness, toughness, and overall strength, making CNC parts much more reliable for demanding applications.

Understanding how heat treatment works is key to getting the best performance from your machined components. It's not just one process, but a range of techniques tailored to specific materials and desired outcomes. Let's explore how it impacts different aspects of strength, so you can make informed decisions for your parts. This knowledge helps ensure your components meet the demands of their application reliably.

How does heat treatment affect yield strength?

Do your metal parts bend or deform permanently too easily? This compromises their function and safety. Applying the right heat treatment can substantially increase the yield strength of your components.

Heat treatment, especially processes like hardening and tempering, rearranges the material's atoms and introduces structures that resist deformation. This increases the stress a part can withstand before it starts to permanently change shape, known as its yield strength.

Yield strength is the point where a material stops springing back to its original shape (elastic deformation) and starts to permanently deform (plastic deformation). Heat treatment manipulates the internal structure to raise this point. For example, quenching steel rapidly creates a very hard structure called martensite.

This structure makes it much harder for atomic layers to slip past each other, which is how plastic deformation happens. However, martensite can be brittle. So, we often follow quenching with tempering – reheating to a lower temperature.

Tempering reduces brittleness and internal stress while still keeping much of the increased yield strength gained from quenching. Other treatments like annealing actually reduce yield strength but increase ductility, making the material easier to form. Choosing the right process depends entirely on the final requirements for the part's performance and its material.

What effects does heat treatment have on the grain structure size type of steel?

Are you seeing inconsistent performance from your steel parts? This can stem from variations in the material's internal structure. Heat treatment gives us precise control over the grain structure of steel.

Heat treatment directly modifies the size, shape, and type of grains within steel. Processes like annealing create larger, softer grains, while normalizing produces finer, more uniform grains for toughness. Quenching creates very fine, hard structures like martensite.

The grain structure inside steel is critical to its properties. Think of grains as tiny crystals packed together. Generally, smaller grains lead to higher strength and toughness (this is known as the Hall-Petch effect). Heat treatment allows us to control this structure.

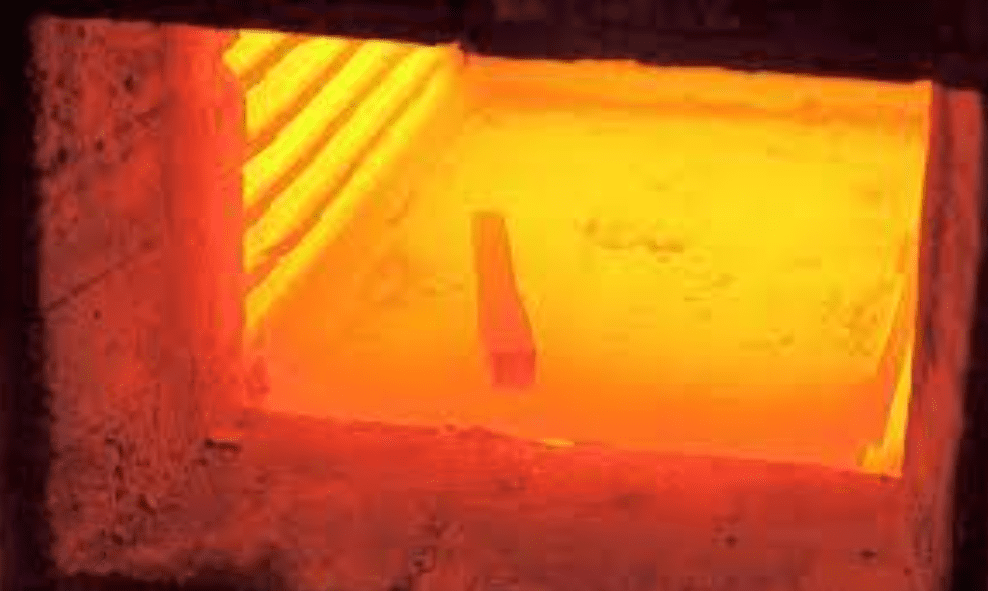

• Annealing: Heating steel and cooling it very slowly allows large grains to form. This makes the steel softer, more ductile, and easier to machine.

• Normalizing: Heating steel and letting it cool in still air results in finer, more uniform grains than annealing. This improves both strength and toughness compared to the annealed state.

• Quenching: Cooling steel very rapidly from high temperature traps carbon atoms and forms hard structures like martensite or bainite. These have very fine or needle-like grain characteristics, leading to high hardness and strength but potentially lower toughness if not tempered.

Understanding these transformations allows us, as manufacturers, to tailor the steel's properties to meet specific application needs, whether it's strength, machinability, or toughness.

How does heat treatment improve the strength of a weld?

Are your welded assemblies failing at the joints? Welds can often be weak points due to the intense heat involved. Post-weld heat treatment (PWHT) is essential for restoring strength and reliability.

Heat treatment after welding relieves harmful residual stresses built up during the welding process. It also tempers the heat-affected zone (HAZ) next to the weld, reducing brittleness and improving the overall toughness and strength of the welded joint.

Welding involves melting and fusing metal, followed by rapid cooling. This localized heating and cooling creates several issues. First, it generates internal stresses within the material, which can lead to cracking or distortion later. Second, the area right next to the weld, the heat-affected zone (HAZ), undergoes its own microstructural changes.

It might become very hard and brittle, making it prone to failure. Post-weld heat treatment addresses these problems. By carefully reheating the entire weldment (or specific area) to a specific temperature below its critical point and holding it there before controlled cooling, we achieve two main things:

1. Stress Relief: The heat allows the atoms in the metal lattice to rearrange slightly, significantly reducing the locked-in residual stresses from welding.

2. Tempering the HAZ: The heat tempers any brittle structures formed in the HAZ, making it tougher and more ductile, similar to tempering hardened steel.

The result is a much stronger, more reliable welded joint that integrates better with the base metal properties.

Does heat treating a material make it stiffer?

Do you need parts that resist bending or flexing under load? It's natural to wonder if heat treatment can increase stiffness. Understanding the difference between stiffness and strength is important here.

Generally, heat treatment does not significantly change a material's stiffness, which is measured by its Young's Modulus. Stiffness is an intrinsic property based on atomic bonds. Heat treatment primarily modifies strength (resistance to yielding/fracture) and hardness.

Stiffness, or the Modulus of Elasticity, describes how much a material deflects elastically (non-permanently) under a given load. It's determined by the fundamental strength of the bonds between atoms in the material.

Heat treatment works by rearranging atoms and changing phase structures (like grain size or creating martensite), but it doesn't usually change the basic nature of the atomic bonds for a given metal. Therefore, the inherent stiffness remains largely the same.

For example, steel, whether annealed or hardened, will have roughly the same Young's Modulus. A heat-treated part will withstand a higher load before permanently bending (higher yield strength) or breaking (higher tensile strength).

This might make it seem stiffer because it doesn't deform permanently as easily, but its resistance to elastic bending under a specific, lower load hasn't really changed. If you need higher stiffness, you typically need to change the material itself (e.g., steel is stiffer than aluminum) or alter the part's geometry (e.g., use an I-beam shape).

Conclusion

Heat treatment is a vital process for enhancing the strength, yield strength, and toughness of CNC machined parts by modifying their internal grain structure. It's also crucial for improving weld strength. However, it generally doesn't increase stiffness.
