Everything You Need to Know About Inconel Stamping

Everything You Need to Know About Inconel Stamping

Inconel stamping involves shaping this super-alloy into precise components using specialized equipment. Known for its resilience in high temperatures and harsh environments, Inconel is the material of choice in aerospace, energy, and industrial sectors. The stamping process enables manufacturers to create complex parts quickly and efficiently, making it indispensable for industries that demand reliability under extreme conditions.



Now that we’ve covered the basics, let’s explore the science behind Inconel and the magic of stamping. I promise, it’s worth it!

What is Inconel Stamping?

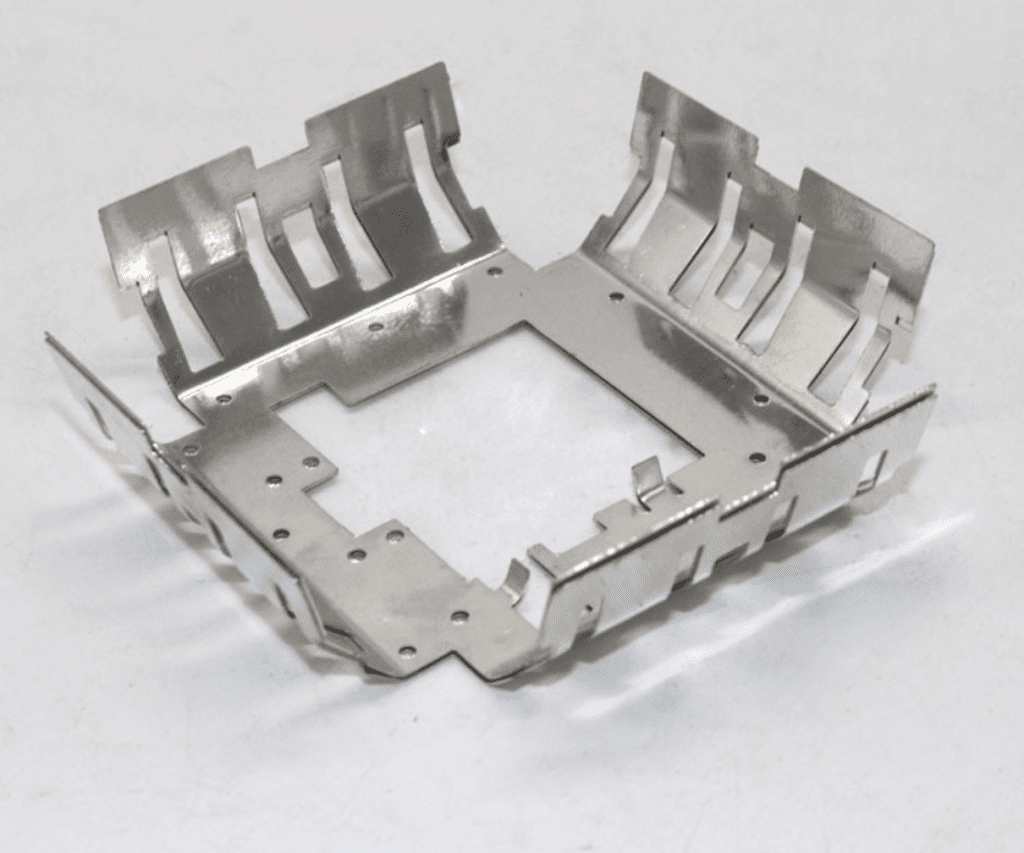

Inconel stamping is the process of using high-pressure machinery to shape Inconel alloy into specific forms or parts. Inconel, a nickel-chromium-based superalloy, is known for its exceptional strength and resistance to heat and corrosion.

In the stamping process, sheets of Inconel are pressed into molds to create precise components, often used in industries like aerospace, chemical processing, and energy. The process allows for high production rates and intricate designs, making it an ideal choice for creating parts that can endure extreme environments.

What Are the Properties of Inconel?



High-Temperature Resistance: Inconel can withstand temperatures up to 2,000°F (1,093°C) without losing its strength, making it perfect for high-heat applications like jet engines and gas turbines.

Corrosion and Oxidation Resistance: The alloy’s unique composition helps it resist oxidation and corrosion, even in harsh chemicals or extreme environments like seawater or acidic conditions.

Strength at Elevated Temperatures: Unlike other metals, Inconel retains its strength even under high heat. This property is crucial for industries where both heat and pressure are constant factors.

Fatigue and Thermal-Cyclic Stability: Inconel doesn’t crack or lose integrity even when subjected to repeated heating and cooling cycles, which is often the case in engines and industrial machines.

What Are the Different Grades of Inconel in Stamping?



Inconel 600

Inconel 600 is widely used for applications requiring excellent resistance to oxidation and corrosion, especially in high-temperature environments. It’s highly durable, making it ideal for furnace components, chemical processing, and heat exchangers. It can endure temperatures up to 1,900°F (1,038°C) without losing its mechanical properties.



Inconel 625

Inconel 625 is a superalloy known for its incredible fatigue and thermal-fatigue strength, along with high resistance to oxidation and corrosion. It’s commonly used in aerospace, marine, and chemical industries, particularly for components exposed to seawater and extreme conditions. This grade can withstand temperatures up to 2,000°F (1,093°C).



Inconel 690

Inconel 690 is designed for superior resistance to oxidation and carburization at higher temperatures. It’s primarily used in nuclear applications, such as reactors and steam generators, due to its resistance to stress-corrosion cracking. It offers exceptional stability in harsh environments, even at temperatures above 2,000°F (1,093°C).



Inconel 718

Inconel 718 is one of the most commonly used grades in aerospace and turbine engine applications due to its excellent high-temperature strength and corrosion resistance. It’s used to make parts like turbine blades, gas turbines, and rocket engines. This grade performs well in temperatures up to 1,300°F (704°C) and is known for its ability to be easily welded and fabricated.



Inconel 751

Inconel 751 is a higher-strength variant of Inconel 718, designed for applications in extreme environments. It’s commonly used in gas turbine engines and exhaust components, where exceptional strength and fatigue resistance are needed. It offers higher temperature strength than 718, making it ideal for aerospace and power generation.



Inconel 792

Inconel 792 is a newer grade, engineered for applications where both high strength and good oxidation resistance are required. It’s often used in advanced aerospace and power generation systems. It performs well at elevated temperatures and provides better resistance to creep and thermal-fatigue cracking than other grades.


Grade Key Properties Common Applications Temperature Resistance
Inconel 600 Excellent resistance to oxidation and corrosion, good strength at high temperatures. Furnace components, chemical processing, heat exchangers. Up to 1,900°F (1,038°C)
Inconel 625 Incredible fatigue and thermal-fatigue strength, high resistance to oxidation and corrosion, versatile in extreme conditions. Aerospace, marine, chemical industries, seawater components. Up to 2,000°F (1,093°C)
Inconel 690 Superior resistance to oxidation and carburization, stable under high temperatures, resists stress-corrosion cracking. Nuclear reactors, steam generators. Above 2,000°F (1,093°C)
Inconel 718 Excellent high-temperature strength, corrosion resistance, and ease of welding. Aerospace, turbine engines, rocket components. Up to 1,300°F (704°C)
Inconel 751 Higher strength than Inconel 718, ideal for extreme environments requiring enhanced fatigue resistance. Gas turbine engines, exhaust components. Higher than 1,300°F (704°C)
Inconel 792 High strength and oxidation resistance, better resistance to creep and thermal-fatigue cracking compared to other grades. Aerospace, power generation systems Elevated temperatures
Made with HTML Tables

What Are the Main Stamping Operations for Inconel?



Mechanical Progressive Stamping

Mechanical progressive stamping is a high-speed operation where a sheet of Inconel is fed into a press, and each pass of the material undergoes a series of die stations to shape it into the desired part. The press is typically driven by a flywheel or crank, making it ideal for high-volume production.

This process is commonly used for creating smaller, more intricate parts like washers, brackets, and connectors. Due to Inconel’s strength, precise tooling and high pressure are necessary to achieve clean cuts and accurate dimensions.



Hydraulic Deep Draw Stamping

Hydraulic deep draw stamping is used for creating deeper, more complex shapes from Inconel sheets. In this operation, a hydraulic press applies a uniform force to stretch the material into a deep mold.

It’s ideal for producing parts like tanks, enclosures, or other cylindrical and conical shapes. The use of hydraulic force allows for greater control and flexibility in shaping Inconel, which is often more challenging to form than other metals due to its strength and resistance to deformation. This method is particularly useful for thicker sheets and larger parts.



What Are the Main Applications of Inconel Stamping?



Aerospace Industry

Inconel stamping is widely used in aerospace applications due to the alloy’s ability to withstand extreme temperatures and stresses. Parts like turbine blades, engine components, and combustion chambers are often made from Inconel, as they need to maintain their integrity at high altitudes and during rapid temperature changes.

Inconel 718, in particular, is the go-to material for jet engines and rocket parts.



Gas Turbines and Power Generation

In the energy sector, especially for gas turbines and power generation equipment, Inconel components are used because of their resistance to high temperatures and oxidation.

Parts like turbine blades, seals, and combustion liners are stamped from Inconel to ensure they can handle the heat and pressure generated in power plants or during energy production in harsh environments.



Chemical and Petrochemical Industries

Inconel’s resistance to oxidation and corrosion makes it ideal for use in chemical and petrochemical plants, where materials often come into contact with aggressive substances.

Stamped Inconel parts such as valves, pipes, and heat exchangers are used in the processing of chemicals, oil, and gas, where resistance to corrosion and high temperatures is paramount.



Marine and Offshore Applications

Inconel’s ability to withstand the harsh conditions of seawater and saltwater corrosion makes it perfect for marine applications. Parts such as valves, pumps, and structural components used in offshore oil rigs or in submarines are often stamped from Inconel alloys.

Inconel 625 is particularly favored in these environments due to its excellent resistance to seawater corrosion.



Medical and Biotech

Inconel is also used in the medical field, especially in devices that need to operate in high-temperature or corrosive environments. Stamped components are used in surgical instruments, implants, and diagnostic devices.

Inconel’s biocompatibility and strength make it ideal for long-lasting and durable parts in these sensitive applications.



Automotive and High-Performance Engineering

Though not as common as in aerospace, Inconel parts are sometimes used in high-performance automotive applications, such as racing engines or exhaust systems, where high strength and heat resistance are required.

Stamped Inconel components ensure that parts like turbochargers, exhaust valves, and manifolds remain durable under high temperatures and stress.

Conclusion



Inconel stamping is a powerful solution for industries that demand strength, durability, and resistance to extreme conditions. Whether you’re in aerospace, energy, or chemical processing, the right Inconel components can make all the difference. If you need assistance with Inconel stamping or have any questions, feel free to contact us—we’re here to help!

FAQs



  1. What is the primary benefit of Inconel in stamping?
    Inconel’s primary benefit is its resistance to high temperatures, corrosion, and stress, making it ideal for manufacturing parts that need to perform in extreme conditions.
  2. Which Inconel grade is most commonly used in aerospace?
    Inconel 718 is the most commonly used grade in aerospace for components like turbine blades and engine parts due to its high strength and resistance to heat.
  3. Can Inconel be used for both small and large components?
    Yes, Inconel can be stamped into both small, intricate parts (like washers and connectors) and large, complex components (such as turbine blades and heat exchangers), depending on the stamping process used.
  4. Is Inconel stamping cost-effective for mass production?
    Yes, Inconel stamping can be cost-effective for mass production, especially when using mechanical progressive stamping, which allows for high-speed production of parts with minimal waste.
//]]>
