An Overview of Gears Machining Methods

Gears are critical components in numerous machines and mechanisms, influencing efficiency and durability. However, machining them is a challenging feat. It requires precision, a deep understanding of materials, and the right approach.

Machining gears involves various techniques, each tailored to specific types of gears and materials. Standard methods include gear hobbing, shaping, and grinding. Understanding the nuances of each method allows us to choose the most effective approach, ensuring precision and durability in the final product.

Now, let’s dive deeper into the fascinating world of gear machining methods. I promise it’s not just about cutting teeth—there’s much to uncover about how these critical components are crafted.

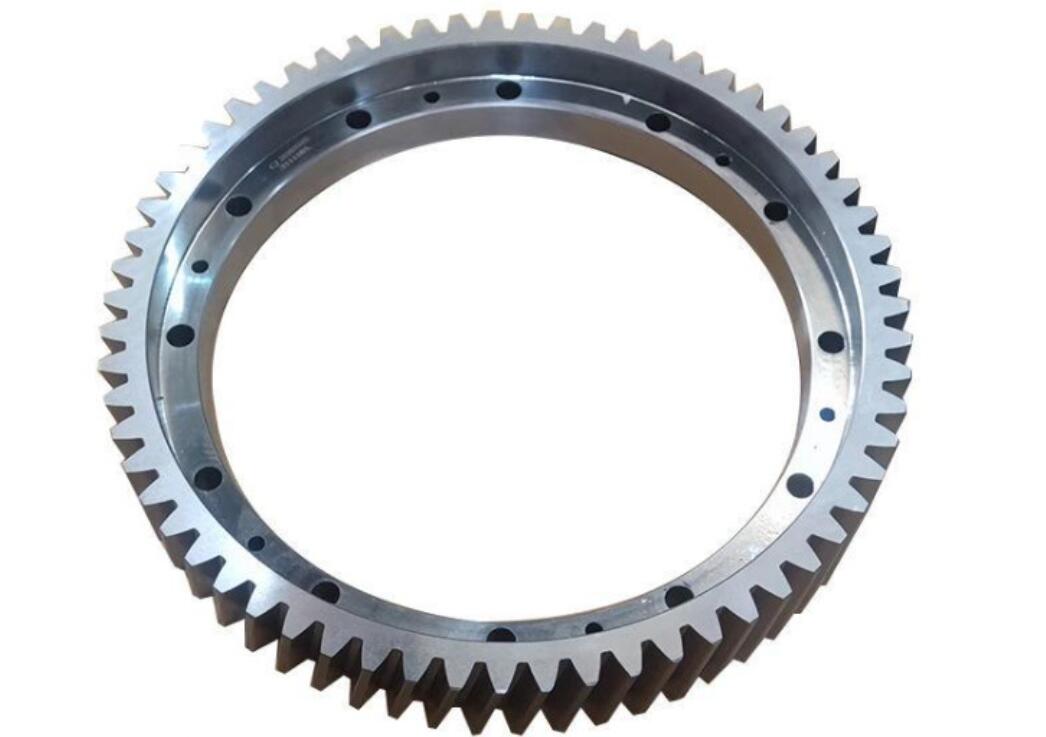

What Is Gears Machining?

Gears machining is an intricate process that involves shaping a piece of material into a precise gear. This process is pivotal in industries where mechanical systems, such as automotive, aerospace, and manufacturing machinery, rely on gears to transmit torque and motion efficiently. At its core, gear machining uses various cutting techniques and tools to create the detailed geometries required for gears to function effectively together.

As we progress through the different gear machining methods, you’ll see that each technique is suited to particular types of gears and materials, which dictates the approach we take in our CNC machining operations. We always aim to produce gears that meet strict tolerances and performance criteria, ensuring they work seamlessly in their intended applications.

Why We Need Gears?

Gears are fundamental to modern machinery, serving as critical components that facilitate motion and power transmission across various mechanical systems. At our factory, we often discuss the essential roles that gears play:

  1. Speed Adjustment: Gears are instrumental in increasing or decreasing the speed of rotating equipment, allowing machines to operate at optimal speeds for different tasks.
  2. Torque Conversion: By adjusting the diameter and gearing ratios, gears can convert high-speed, low-torque rotation into low-speed, high-torque output, and vice versa. This is crucial for heavy-duty machinery where significant torque is required.
  3. Directional Change: Gears enable the change of rotational direction, which is vital for machines like automobiles where the ability to reverse is necessary.
  4. Precision Movement: Especially in robotics and aerospace, gears ensure precise movements, which is critical for accurate positioning and performance.
  5. Power Distribution: Gears distribute power efficiently between different system parts, ensuring that complex machinery functions smoothly and reliably.

Manufacturing Process of Gear Production

Manufacturing gears involves a sequence of specialized processes, each tailored to produce specific types of gears with precision and efficiency. Let’s delve into some of the most common gear manufacturing methods:


Gear Shaping

Gear shaping is a process for creating internal gears and complex external forms. This method employs a cutter that resembles a gear tooth. It rotates and reciprocates across the face of the blank gear while the blank rotates in sync with the cutter. As I often tell my team, shaping is like sculpting, where each cutter pass removes a small amount of material, gradually forming the detailed tooth profile needed for effective engagement.

In gear shaping, the setup allows for versatile machining of odd-shaped gears, which might be challenging when compared to other methods. This flexibility makes gear shaping invaluable, especially when dealing with bespoke or specialized gear designs.


Gear Hobbing

Gear hobbing is one of the most efficient and widely used methods for producing gears, particularly in helical and spur gears. The process involves a hob, which is a cylindrical cutting tool that features helical cutting teeth. These teeth have gashes that help in cutting and chip removal. The gear blank and the hob rotate continuously in a synchronized motion to create the precise helical paths of the gear teeth.

Hobbing stands out in our operations because of its speed and efficiency in producing giant gears. We rely heavily on this method, especially when deadlines are tight and the demand for high-quality gear is high. The capability of hobbing machines to handle various gear sizes and complexities without compromising precision is why they are a staple in gear manufacturing.


Gear Milling

Gear milling is a versatile method that utilizes rotary cutters to remove material from the workpiece. This method is beneficial for creating various gear types, including spur, helical, and bevel gears. The process involves either a form milling or a profile milling technique.

In form milling, the cutter is shaped like a gear tooth, which is then replicated onto the gear blank through a simple indexing procedure. This approach is suitable for small-batch production where versatility and precision are required.

On the other hand, profile milling uses a disc-shaped cutter equipped with teeth that mimic the gap between the gear teeth. It gradually cuts the profile of each tooth in multiple passes. The accuracy of CNC machines makes profile milling increasingly popular for creating complex gear geometries with high precision. This method efficiently produces custom gears with intricate designs and high demand specifications.


Gear Broaching

Gear broaching is a method used primarily for manufacturing spline or internal gears. It involves a multi-tooth cutting tool called a broach, passed over the workpiece to cut the desired tooth shape. The process is known for producing high-accuracy gears in a single pass, making it incredibly efficient for large-scale production runs. Gear broaching is particularly effective for creating internal gears that are difficult to reach with other machining processes.

The key to successful gear broaching lies in the design of the broach tool, which is customized for each gear type and size. This customization ensures that each tooth profile is cut to exact specifications, resulting in gears that meet precise tolerance requirements. Although the initial setup and tooling costs can be high, the speed and precision of gear broaching make it a cost-effective choice for high-volume production where consistency and quality are paramount.


Gear Grinding

Gear grinding is a finishing process used to improve a gear’s precision and surface finish, particularly after heat treatment. This process can achieve high accuracy and surface integrity, making gears capable of operating smoothly at high speeds and under significant loads. Gear grinding is commonly employed for gears that demand strict tolerances and are subject to high wear conditions, such as those in automotive transmissions.

The process uses a grinding wheel composed of abrasive particles bound together as the cutting tool. This wheel operates at high speeds to remove small amounts of material from the surface of the gear teeth, correcting any minor deviations or irregularities left from prior machining processes. The ability to precisely control the amount of material removed allows us to fine-tune the gear teeth to a high degree of accuracy, ensuring optimal meshing and performance.


Powder Metallurgy

Powder metallurgy is a manufacturing process that involves the production of gears by compacting metal powders into a desired shape and then heating the compacted shape to a temperature that allows the material particles to bond.

This technique is beneficial for producing gears that would be difficult or economically unfeasible to produce through traditional machining methods. It is also advantageous for manufacturing large quantities of gears with consistent quality and material properties.

Metal powders are first blended to achieve the desired chemical composition during the powder metallurgy process. They are pressed into a mold under high pressure to form a gear blank. The blank is subsequently sintered in a controlled furnace atmosphere to bond the metal particles.

This method allows for efficient and economical production, reduces waste, and enables the use of materials that are difficult to machine. Powder metallurgy gears are typically used in applications where high precision is less critical, but material properties like high strength and wear resistance are essential.



Casting is a manufacturing process suitable for creating complex gear shapes that would be difficult to achieve through traditional machining. In this process, molten metal is poured into a mold, solidifying into the desired gear shape. This method is highly versatile and can be used with various metals, allowing for the production of giant, intricate gears used in industrial machinery and automotive systems.

The critical advantage of casting is its ability to produce complex geometries with internal cavities and detailed features without requiring assembly or welding. This reduces the production time and cost, especially for large-scale manufacturing.

However, cast gears typically require secondary machining and finishing to achieve the precision and surface quality needed for critical applications. The process is best suited for applications where the gear size or complexity would render other manufacturing methods impractical.



Forging is another traditional method of gear production known for producing solid and durable gears. The process involves shaping metal using localized compressive forces applied through dies. For gears, the metal is heated and then pressed or hammered into a die, shaping it into the gear’s final form. Forged gears are noted for their superior strength and grain consistency, as the forging process aligns the metal’s grain with the gear’s shape.

Forging is particularly valued for applications requiring high strength and fatigue resistance, such as automotive and aerospace industries. The process can be more expensive than casting due to the specialized equipment and dies needed, but the investment pays off in the performance of the finished gears. Forged gears typically exhibit reduced surface porosity and finer microstructure than those produced by other methods, leading to better mechanical properties and longer life under harsh operating conditions.



Rolling is a gear manufacturing process that employs hardened steel rollers to form gear teeth by compressing a softer material blank. The teeth gradually form into the desired gear profile as the blank is fed through the rollers. This method is particularly effective for producing long runs of high-volume, lower-precision gears, such as those used in various consumer appliances and automotive applications.

The advantages of rolling include high production speed and efficiency, as gears can be formed quickly without material removal processes. The work-hardening effect induced by the rolling process also enhances the durability of the gear teeth.

However, the types of gears that can be produced by rolling are limited by the capabilities of the rollers, making this method less suitable for complex or precision gear profiles.


Planing and Slotting

Planing and slotting are traditional machining processes used to create gears, beneficial for large, bespoke, or low-volume orders. Gear planning involves a reciprocating tool that cuts the gear teeth into a blank. Slotting, similarly, uses a vertically reciprocating cutter to machine the teeth inside a gear blank. These methods are particularly effective for internal gears and unusual configurations that cannot be easily manufactured using other methods.

Both planing and slotting allow for precise adjustments to be made during the cutting process, enabling the production of very accurate and custom gear profiles. However, these methods are generally slower than modern machining processes like hobbing or milling. They are best suited for particular applications or when machining softer materials that don’t require high-speed cutting tools.

In the vast landscape of mechanical engineering, several types of gears stand out for their unique functions and applications.


Worm Gear

Worm gears are a highly specialized type of gear used when a significant speed reduction is needed between two non-intersecting shafts that are typically at right angles to each other. The setup consists of a worm (similar to a screw) that meshes with a worm wheel (similar to a helical gear). This configuration allows for smooth and quiet operation, making worm gears ideal for applications requiring a high gear ratio and low noise, such as elevators, conveyors, and various heavy machinery.

One of the standout features of worm gears is their ability to achieve high reduction ratios in a single gear set, which can prevent back driving—making them suitable for lifting mechanisms where safety is critical.

However, they tend to have lower efficiency due to sliding contact between the teeth, leading to higher wear and heat generation. Thus, selecting the appropriate materials and ensuring proper lubrication are vital considerations when using worm gears.


Bevel Gear

Bevel gears transmit power between intersecting shafts, typically at a 90-degree angle, although other angles are possible. These gears have conical surfaces with teeth cut along the cone’s surface, allowing them to change the axis of rotational motion. This capability is essential in many automotive applications, particularly in the differential, where the drive’s direction from the engine must be turned at right angles to drive the wheels.

Bevel gears come in various forms, including straight bevel gears, which have straight teeth and are used in more straightforward, lower-speed applications, and spiral bevel gears, which have curved teeth and provide smoother and quieter operation at higher speeds. The complexity of manufacturing bevel gears increases with the precision needed for smooth operation, making them more expensive but crucial for applications requiring high-performance power transmission.


Spur Gear

Spur gears are among the most common and straightforward types of gears. They feature straight teeth aligned parallel to the axis of rotation. This design simplicity makes them easy to manufacture and highly efficient for transmitting power and motion between parallel shafts. Spur gears are widely used in various applications, from simple machinery to complex automotive systems.

The main advantage of spur gears is their ability to maintain constant velocity and high efficiency, typically between 94-98%. However, one drawback is that they can be noisy, especially at higher speeds, because the entire face engages simultaneously. This makes them less ideal for applications where noise is a concern but excellent for situations where strength and speed are more critical.


Helical Gear

Helical gears are similar to spur gears but with a significant modification: their teeth are cut at an angle to the face of the gear. This angled arrangement allows the teeth to engage more gradually than in spur gears, resulting in a smoother and quieter operation. Helical gears are precious in applications requiring high speeds or heavy loads, such as automotive transmissions.

One of the benefits of helical gears is the increased load capacity due to the overlapping tooth action, which also reduces vibration and noise. However, the angled teeth introduce axial thrust, which must be accommodated with appropriate bearings, adding complexity and potential cost. Despite these challenges, helical gears’ improved durability and performance make them a preferred choice in many high-demand environments.


Herringbone Gear

Herringbone gears are a distinct type of gear characterized by a double helical arrangement of teeth with a reverse angle in the middle, resembling the shape of a herring’s bones. This design effectively combines two helical gears into one, with their teeth set in a V-shape. The unique configuration allows for the cancellation of axial thrust, as the forces exerted by one half of the gear are counterbalanced by the other, eliminating the need for extra bearings to manage these forces.

The significant advantage of herringbone gears lies in their ability to handle high power and torque while operating smoothly and quietly. The dual helical design distributes the load across more teeth, significantly reducing vibration and increasing the lifespan of the gear. This makes herringbone gears particularly suitable for heavy-duty applications with critical reliability and durability, such as in industrial machinery, power plants, and high-performance automotive systems.

Despite their benefits, herringbone gears are more complex and costly to manufacture than single helical gears due to the precision required in aligning the two helical sections. They are typically produced using specialized equipment to ensure precise and robust construction, making them a premium option in the gear market. However, for applications that demand the highest levels of performance and reliability, herringbone gears are often the best choice.

Material Considerations in Gear Machining

Material selection plays a pivotal role in gear machining, directly impacting the finished gears’ performance, durability, and application suitability. Here are the critical material considerations we must evaluate when manufacturing gears:

Mechanical Properties

The material must possess sufficient strength, hardness, and toughness to withstand the operational loads and stresses without deforming or failing. Steels, particularly alloy and carbon steels, are commonly used due to their high strength and wear resistance.

Wear Resistance

Gears are subject to constant contact and motion, naturally leading to wear. Materials with high wear resistance, such as hardened steels, brass, and specific polymers, are preferred to ensure longevity and consistent performance. Surface treatments such as carburizing or nitriding can also be applied to enhance the wear resistance of gears.

Thermal Stability

Gears can generate considerable heat at high speeds or significant power transmission applications. Materials with good thermal stability, such as advanced alloys and ceramics, maintain their structural integrity and mechanical properties even at elevated temperatures, preventing degradation or failure during operation.


The ease with which a material can be machined affects production efficiency and cost. Too hard materials may require more time and wear down tooling faster, while softer materials might not offer the needed durability. Balancing machinability with performance requirements is crucial to optimize production processes and cost-efficiency.

Corrosion Resistance

Especially in applications exposed to harsh environments or chemicals, the ability of a material to resist corrosion is vital. Stainless steels and non-ferrous metals like bronze are excellent choices for such conditions, ensuring that the gears do not deteriorate prematurely due to exposure to corrosive elements.

Cost and Availability

Finally, the cost of materials and availability can influence the choice of materials for gear production. While exotic alloys and composites may offer superior properties, their high cost and limited availability might only be practical for some applications. It’s essential to weigh the benefits of advanced materials against their impact on the overall project budget and timeline.


Exploring the vast realm of gear machining reveals a world where precision meets practicality. Each method and material choice directly impacts the functionality and longevity of the gears we produce. If you’re seeking expert advice or need precision gears machined to the highest standards, don’t hesitate to contact us. Let’s gear up your operations for success together!

FAQ about Gear Machining

What materials are best for machining gears?

The best materials for machining gears typically include metals such as steel (carbon steel and alloy steel), brass, bronze, and, in some cases, plastics or composite materials.

What are the most common gear machining methods?

The most common gear machining methods include:

  • Hobbing: Used for creating spur and helical gears.
  • Shaping: Suitable for internal gears and complex profiles.
  • Milling: Offers flexibility for producing various gear types.
  • Grinding: Provides high precision and finish and is used for final machining steps.

How does heat treatment affect machined gears?

Heat treatment can significantly enhance the strength and wear resistance of machined gears. Processes like carburizing, nitriding, and induction hardening are commonly used to improve the durability of gears, especially for those subjected to high stresses and loads.
