Ceramic CNC Machining: Everything You Need To Know!
Introduction
When you need a strong and lightweight part, ceramic may be the material you’re looking for. Ceramic pieces can be machined using a CNC machine, and there are several things you need to know before attempting this type of machining.
In this article, we’ll discuss the basics of ceramic CNC machining. Keep reading to learn everything you require to know about this process!

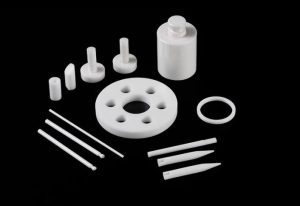

What Is Ceramic CNC Machining?
Ceramic CNC machining cuts and shapes ceramic materials using computer-controlled routers and mills.
Ceramic materials are rigid and brittle, making them difficult to machine using traditional methods. However, CNC machining provides a high degree of control and accuracy, allowing for the precise cutting and shaping of ceramics.
The process normally begins with creating a computer-aided design (CAD) model of the desired part or shape. This model is then used to generate a toolpath fed into the CNC machine. The machine then cuts or shapes the ceramic material according to the specified toolpath.
Ceramic CNC machining is often used to create complex shapes or parts with tight tolerances, making it an ideal manufacturing method for many applications.
Advantages And Disadvantages
You’re probably wondering what makes ceramic CNC machining so unique. After all, there are other methods of machining ceramics, such as waterjet cutting or laser cutting. So, what are the advantages of ceramic CNC machining?
Advantages
- Precise cutting and shaping:
As we mentioned before, CNC machining provides a high degree of control and accuracy. This is especially important when machining ceramic materials, as they are rigid and brittle. - Can create complex shapes:
Ceramic CNC machining can create complex shapes that would be difficult or impossible to make using other methods. - Tight tolerances:
The tight tolerances that can be achieved with ceramic CNC machining are often critical for many applications. - Cost-effective:
Ceramic CNC machining can be a cost-effective manufacturing method, especially compared to other methods like waterjet cutting or laser cutting. - Scalable:
Ceramic CNC machining is a scalable manufacturing process, meaning that it can be easily scaled up or down to meet the needs of your project.
Disadvantages
- Brittle material:
One of the main disadvantages of ceramic CNC machining is that the material is brittle. This can make it challenging to achieve the desired shape, and it can also lead to cracks or chips during the machining process. - Expensive:
Ceramic materials are often more expensive than other materials, such as metals or plastics. This can make ceramic CNC machining a more costly manufacturing process. - Long lead times:
Another disadvantage of ceramic CNC machining is that the process can often have extended lead times. It’s because ceramic materials are difficult to machine and require special tools and equipment. - Limited applications:
Ceramic CNC machining uses for limited applications due to the expense and difficulty of the process. - Damage:
Ceramic materials are susceptible to damage during the CNC machining process. This can include cracks, chips, and breaks.
Material Types!

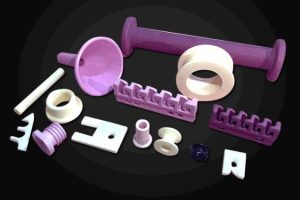

1. Macro
The most common type of ceramic used in CNC machining is macro. Macro ceramics comprise large particles, typically between 2 and 10 microns in size. They are strong and wear-resistant, making them ideal for many applications.

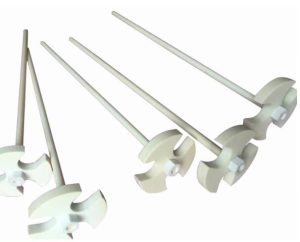

2. Aluminum Nitride
Aluminum nitride is a type of macro ceramic that uses in CNC machining. It’s white and has a high thermal conductivity. Aluminum nitride uses in applications where heat needs to be dissipated quickly, such as in power semiconductor devices.
3. Boron nitride Macro
Boron nitride is another type of macro ceramic. It is black and has a high thermal conductivity. Boron nitride is often used as a lubricant or in applications where heat needs to dissipate quickly.
4. Silicon carbide
Silicon carbide is a type of macro ceramic I use in CNC machining. It is black and has a high hardness. Silicon carbide uses in abrasive applications, such as grinding or sanding.
Applications:
Ceramic CNC machining is used for a variety of applications. Some common examples include:
1. Making prototypes
Ceramic CNC machining uses to make prototypes. It can be used to create complex shapes and achieve tight tolerances. You can also use ceramic CNC machining to create prototypes for testing or validation.
2. Abrasive applications
Ceramic CNC machining can be used for abrasive applications, such as grinding or sanding. This is because ceramic materials are very hard and wear-resistant. For these applications, silicon carbide is often the material of choice.
3. Heat dissipation
Ceramic CNC machining can be used for applications where heat needs to dissipate quickly. This is because ceramic materials have a high thermal conductivity. Any macro ceramics, such as aluminum nitride or boron nitride, can be used for these applications.
4. Electrical applications
Ceramic CNC machining can be used for electrical applications, such as in power semiconductor devices. This is due to the fact that ceramic materials are insulators.
5. Medical applications
Ceramic CNC machining can be used for medical applications, such as implants or prosthetics. This is due to the fact that ceramic materials are biocompatible and wear-resistant.
Ceramic CNC machining is a manufacturing process that can be used to create complex shapes and achieve tight tolerances. It is often used to make prototypes or for abrasive applications.
Ceramic materials are both challenging and wear-resistant, making them perfect for various uses. However, ceramic CNC machining can be a more costly manufacturing process due to the materials’ expense and the process’s difficulty.
Conclusion
So there you have this, our comprehensive guide to ceramic CNC machining. We believe this article has helped shed some light on the process and answered any questions you may have had.
If you are still curious about something or would like more information, please do not hesitate to contact us. WorthyHardware is a trusted provider of quality CNC machining services, and we are always happy to help!
