Grasping Sheet Metal Bending: Fundamentals, Allowances, and Guidelines

CNC machining

As we navigate into a world that celebrates individuality and customization, the demand for custom-made products is increasing. And in the industrial sector, it’s no different. Industries across the globe are increasingly seeking solutions tailored to their specific needs, fostering a rapid growth in the metal processing industry.

When it comes to customization in the industrial sector, one versatile process comes to the forefront: sheet metal bending. Playing a crucial role in shaping the industrial landscape, bending metal, in particular, sheet metal, facilitates the creation of an array of parts essential for various applications. This process is an indispensable tool in the manufacturing process.

CNC machining

The Science of Sheet Metal Bending


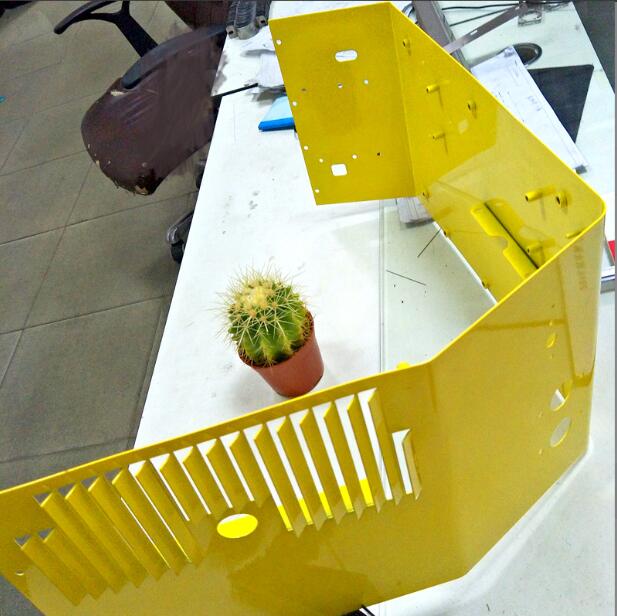

What is Sheet Metal Bending?

Sheet metal bending is a metal forming process wherein force is applied to a piece of sheet metal, causing it to bend at an angle and form the desired shape. This procedure allows the metal to be flexed without any alteration to its volume. The objective of sheet metal bending is to create a three-dimensional shape from a flat sheet, broadening the scope of what can be achieved with metal fabrication.


Altering Sheet Metal through the Bending Process

Bending transforms a flat, uninteresting piece of metal into a functional, dynamic shape. The process involves straining the metal beyond its yield strength, but below its ultimate tensile strength, causing it to plastically deform, but not to break.

The result of this delicate balance of forces is a bend in the metal that holds its new shape after the bending forces are removed. For an in-depth understanding of this technique, you may refer to this insightful article on sheet metal fabrication processes on Worthy Hardware.


The Pliability of Sheet Metal in Shaping Processes

One of the most notable features of sheet metal is its pliability. Due to its malleability, sheet metal can be bent into various shapes and sizes without compromising its strength and durability. This quality makes it an ideal material for many industries, allowing them to produce unique, tailor-made products that meet their specific needs.

Whether it’s shaping a sleek car chassis or crafting intricate machinery parts, the possibilities are truly endless with the power of sheet metal bending. The flexibility and adaptability offered by this process are why it has become a crucial component in the realm of CNC machining.

Implementations of Formed Sheet Metal


The Need for Sheet Metal Bending Across Various Sectors

The ubiquitous presence of sheet metal in our everyday lives can’t be overstated. This versatile material finds application in various sectors including automotive, aerospace, construction, electronics, and home appliances, thanks to its excellent properties like strength, durability, and malleability. The process of sheet metal bending creates a plethora of shapes and designs, satisfying the growing requirement for tailor-made products.


Use Case: The Automotive Industry

The automotive industry is a prime example of sheet metal bending application. In the production of cars, trucks, and other vehicles, sheet metal is used extensively to create body parts, chassis, fuel tanks, and other components.

CNC machining in automotive applications is a perfect exemplar of the intricate designs and robust structures that can be formed using sheet metal bending processes. By enabling the creation of complex shapes and lightweight structures, sheet metal bending has revolutionized vehicle manufacturing.


Regular Techniques for Accuracy in Manufacturing

Precision is paramount in sheet metal bending. With advanced technologies such as CNC milling, engineers can achieve a high degree of accuracy while bending sheet metal.

Additionally, the use of computer-aided design (CAD) and computer-aided manufacturing (CAM) tools have simplified the design process, reducing the margin of error and ensuring that the final product aligns perfectly with the design blueprint.

As a result, sheet metal components are regularly used in precision-demanding industries such as aerospace and electronics. For a detailed overview of precision methods, this article on machined parts and components provides further insight.

Techniques of Sheet Metal Bending


Aspects Influencing the Selection of a Bending Method

When it comes to sheet metal bending, the choice of method can significantly influence the final product’s quality and appropriateness for its intended application. Factors such as the material’s malleability, thickness, and the desired bend angle and radius are crucial considerations when selecting a bending method. Advanced technologies, particularly those in the realm of CNC machining, play a pivotal role in deciding the appropriate technique, especially when it comes to intricate designs and high precision requirements.


Widely Used Sheet Metal Bending Techniques

Sheet metal bending is a versatile manufacturing process involving several techniques, each designed to cater to specific needs and materials. It’s the transformation process that drives the creation of custom-made products across various sectors, especially the automotive industry.

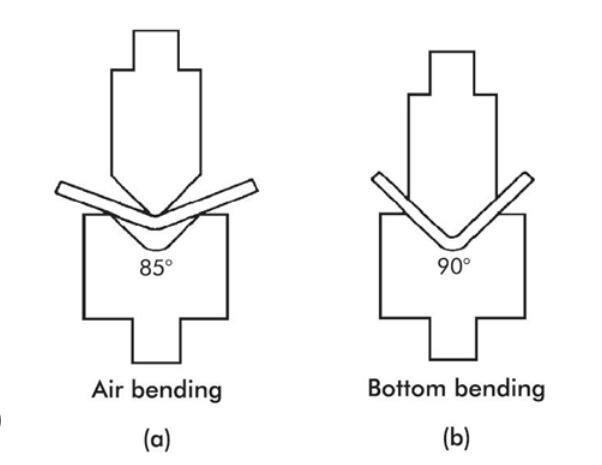

1. V-bending: A common method wherein the sheet metal is bent between a V-shaped punch and die. The V-bending process has three primary techniques:

CNC machining

a. Bottoming: Here, the sheet metal is pressed firmly against the die, creating sharp bends.
b. Coining: This technique exerts high pressure to imprint the die shape onto the sheet metal, offering a high level of precision.
c. Air Bending: A low-pressure process where the sheet metal doesn’t completely conform to the die shape, providing flexibility in the bend angle.


2. Roll Bending: This technique involves passing the sheet metal through rollers to produce a curve. It’s widely used for creating large components like tubes and cylinders.

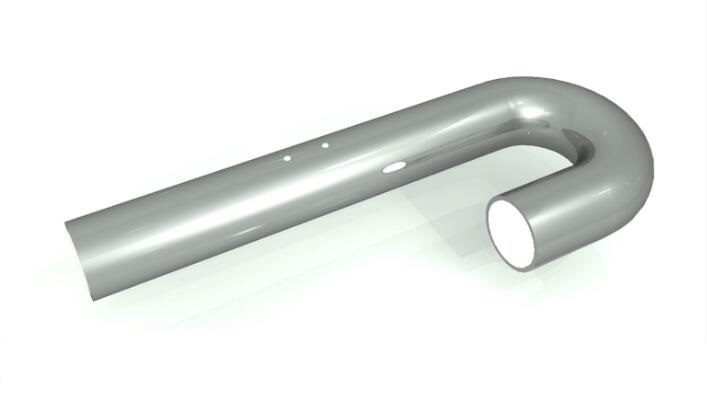

3. U-bending: The metal is bent into a U shape using a punch and die. This method is typically used for making channels and collars.

CNC machining

4. Wipe Bending: A punch forces the sheet metal into a die cavity, creating a bend. This process is commonly used for creating edges and flanges on boxes and panels.

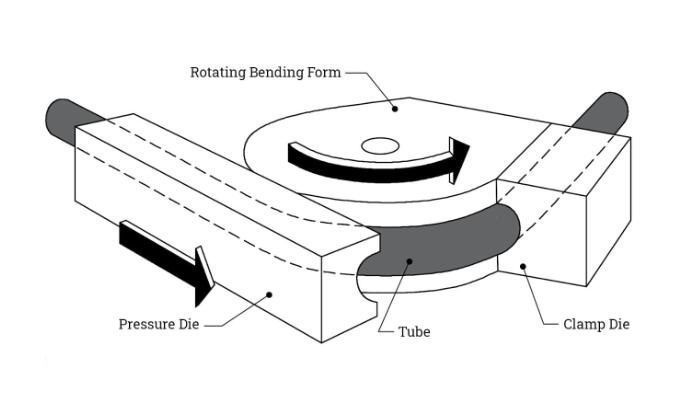

5. Rotary Bending: A non-marking method involving the application of a rotating tool to induce a bend, ideal for preventing surface damage.

CNC machining

Understanding the best way to bend sheet metal for each application is crucial to maintain integrity and meet design specifications. Each of these techniques has its strengths and best-use scenarios, which are essential to recognize for optimal results.

Sheet Metal Bending Allowance

CNC machining

A. Clarification and Significance of Bend Allowance

When it comes to sheet metal bending, understanding the concept of bend allowance is crucial. It’s the measurement of the material length needed to accommodate a bend in sheet metal. This notion is fundamental to the manufacturing process because it directly impacts the final product’s size and shape. Getting the bend allowance right is critical to ensuring the precision and quality of custom-made products.


B. Deformation and Dimensional Alteration During the Bend

Bending operations cause the sheet metal to undergo deformation, altering its dimensions. In essence, the length of the metal increases along the bend. As the metal is bent, the outside surface is stretched, and the inside surface is compressed, causing an expansion in length. This is where bend allowance becomes crucial; by accounting for this stretch, the manufacturer can maintain the desired dimensions post-bend.


C. Factors Included in Bend Allowance Computation

Several factors are included in the calculation of bend allowance, including the thickness of the sheet metal, the bend angle, and the radius of the bend. It also considers the K-factor, a ratio that represents the location of the neutral axis with respect to the material thickness. Understanding these variables and their influence is essential when working with bending metal to maintain accurate measurements.


D. The Influence of the K-factor and Sheet Metal Bend Radius

The K-factor is a vital element of the bending process. A smaller K-factor indicates a small neutral axis and leads to a smaller bend allowance, while a larger K-factor shows a larger neutral axis and a more significant bend allowance. Simultaneously, the bend radius, the inside curvature of the bend, also impacts the bend allowance. A larger bend radius requires more material, thus a larger bend allowance.

The mastery of bend allowance is key to achieving high-quality bent sheet metal products, be it for small DIY projects or industrial-level applications. By fully understanding and applying these concepts, one can ensure the accuracy and quality of the final bent metal product.

Quintessential Suggestions for Bending Steel Plates


A. Anticipating Springback

Springback is a common occurrence during the sheet metal bending process where the metal tries to revert to its original shape after being bent. This is particularly prominent in steel plates due to their high tensile strength and must be accounted for to ensure the desired angle is achieved. Anticipating the degree of springback is integral to maintaining precision in the final product.


B. Pliability of the Substance

Malleability, the ability of the metal to deform under compressive stress, greatly influences the bending process. Understanding the specific characteristics of the metal being used, such as its hardness, tensile strength, and grain structure, can aid in predicting its behavior during the bending process. In the case of steel plates, their malleability is relatively less than other metals, and therefore they require more force to bend.


C. Employing a Press Brake for Reinforcement and Neater Bends

A press brake is a machine pressing tool for bending sheet and plate material, especially sheet metal. It forms predetermined bends by clamping the material between a matching punch and die. This is a highly efficient tool for reinforcing and forming neat, precise bends on steel plates. It’s an integral piece of equipment in the metal processing industry.


D. Process Position Holes for Accurate Positioning

When planning to bend steel plates, accurately positioning the process holes is essential. These holes serve as a guide during the bending process to ensure precision. Carefully marked and drilled process position holes can result in a higher degree of accuracy in the final product.


E. The Value of Bend Allowance for Precision

Just as we have seen in the previous section, understanding and properly calculating the bend allowance is crucial when bending steel plates. This includes taking into account the K-factor and the inner bend radius. Mastery of these variables can result in a more precise and high-quality end product.


The importance of sheet metal bending in today’s manufacturing landscape cannot be overstated. As we have seen, the demand for custom-made products is on the rise, and sheet metal bending offers an adaptable and efficient solution to meet this need.

With the versatility to transform steel plates into a myriad of shapes and designs, sheet metal bending truly stands as a pillar in the metal processing industry. It plays a critical role in various sectors, most notably in the automotive industry, where precision, efficiency, and consistency are of utmost importance.

In navigating the process, employing various bending methods such as V-bending, bottoming, coining, air bending, roll bending, U-bending, wipe bending, and rotary bending, have proven instrumental in delivering a wide range of applications.

We strongly endorse Worthy Hardware for its excellence in sheet metal bending. With quality that is second to none and a fast turnaround time, they continue to be a leading provider in the industry.

Frequently Asked Questions (FAQs)


How can you bend sheet metal?

Sheet metal can be bent using several techniques. Methods such as V-bending, bottoming, air bending, roll bending, U-bending, wipe bending, and rotary bending can all be used depending on the specific requirements of the bend. Using a press brake or other specialized equipment can also aid in making precise bends.


What is the bend allowance for sheet metal?

The bend allowance is a measure of the length of the neutral line between the bend lines, or in other words, the arc length of the bend. It is the amount of material consumed in the bending process and varies depending on factors like bend angle, radius, and the K-factor of the material.


What tool is used to bend sheet metal?

Various tools are used in the bending process. For instance, a press brake is a common tool used in metal bending. Other tools include bending brakes, pliers, hammers, or even specialized CNC machinery for larger scale or more precise jobs.


Is it easy to bend sheet metal?

Bending sheet metal is relatively easy with the correct equipment and knowledge. Understanding the key factors like the material’s malleability, the desired angle of the bend, and the appropriate bending method can simplify the process considerably. However, precision and consistency require practice and experience.


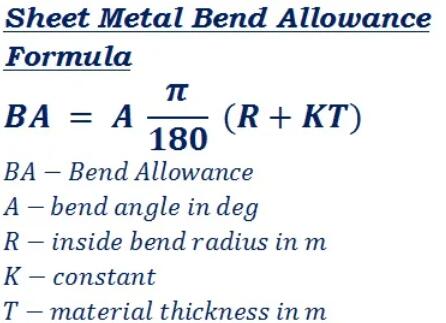

What is the formula for sheet bending?

The formula used to calculate the bend allowance is: BA = [(π/180) x (Bend Angle/100)] x (IR + (K x MT)), where BA is the bend allowance, IR is the inside radius, K is the K-factor, and MT is the material thickness.

CNC machining

What is the best steel for sheet metal bending?

Mild steel is often used for sheet metal bending because of its good malleability and affordability. However, the best steel for bending would depend on the specific application requirements including strength, corrosion resistance, and cost.


What is the toughest metal to bend?

High-carbon steel and heat-treated steels are generally considered some of the toughest metals to bend due to their high strength and low malleability.
