How to make the deburr after CNC machining process?

You must understand the definition of burrs in order to effectively answer the question, “What is deburring?”

Burrs on your parts must have occasionally appeared if you work with machining parts. Burrs can degrade the quality of your components and make their surface rough. Deburring is, therefore, crucial to machining.

Although these flaws are ugly, they also compromise the functionality and safety of each afflicted part. You require a dependable method to eliminate burrs and deliver high-quality, smooth components.

The best method is to subject these materials through the deburring process. But what is the deburring process, how does it work, and what is its importance? This write-up explains these questions and highlights the best methods for deburring after the CNC machining process.

What is the Deburring Process

Deburring is the action of taking burrs out. After welding or machining, it helps to remove any surface flaws to leave a smooth, high-quality metal product.

Different machining techniques can mold a piece of metal. For instance, in stamping, the workpiece is pressed into a die set, but metal is removed from the workpiece using a spinning tool in milling.

These processes don’t always work flawlessly; they could leave behind tiny metal burrs or protrusions.Burrs are microscopic, angular flaws that appear on the surface of machined components.

They are known as “impurities,” which detract from a smooth machined surface’s aesthetic appeal. A person could handle a machined item carelessly after noticing its smooth surface, only to get hurt by burrs.

Burrs degrade the finished items’ aesthetics and quality. Deburring parts is crucial as a result. Let’s examine what leads to surface burrs after CNC machining operations.

A burr can appear at several machining stages. It happens frequently during the machining process. One can endeavor to minimize or even completely avoid machined parts.

We’ll detail the machining operations that result in burrs so that you may better understand how burrs develop during machining. Burrs can develop during the cutting or machining processes.

  • Blanking
  • Shearing
  • Laser cutting
  • Engraving
  • Plasma Cutting
  • Turning
  • Drilling
  • Punching
  • Milling

Methods used for deburr after cnc machining process

Your machined items may contain burrs on their surface if they go through any of these processes. Now let’s check out the methods you can use for deburring after CNC machining.

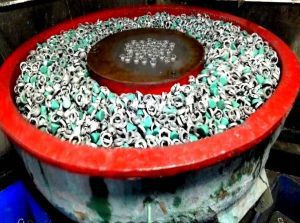

Vibratory Finishing

The vibratory finishing process involves putting parts, media, and compounds in a vibrating tub or bowl. A mass of pieces is deburred or polished by the media, and parts turn and grind against each other due to the vibratory action.

Deburring and other mass-finishing tasks, including polishing, cleaning, descaling, and surface preparation, can be done with vibratory finishing. Vibratory equipment arrangements, which are frequently batch tubs, round bowls, or thru-feed machines, enable deburring or burnishing operations that are impossible to perform by hand.

Advantages of Vibratory Finishing

A variety of needs can be satisfied by the adaptable method of vibratory finishing. Both wet and dry vibratory finishing processes are available to producers, depending on the materials and desired finish.

The more common technique is wet finishing since it results in a cleaner and more polished surface. This method is significantly more environmentally beneficial because the water used in it is recycled.

Flexibility

Compared to other equipment, vibratory machines may work with a wider variety of materials, including ceramics, plastics, steel, aluminum, and copper. Also, vibratory equipment is simpler to customize for a particular application compared to many other finishing devices.

Less Expensive

Vibratory finishing equipment is more cost-effective since it operates faster than other machinery due to automation. Additionally, these machines can handle bigger batches of parts, improving production efficiency and lowering labor costs.

Minimal maintenance obligations

Due to the lower maintenance requirements of vibratory finishing equipment, you can work longer without taking breaks for maintenance.

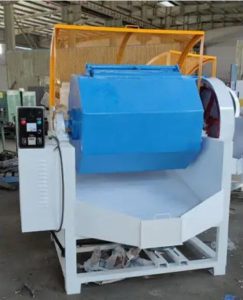

Barrel Tumbling

Barrel tumbling is similar to the action of boulders falling down a steep hill. The components, water, abrasive medium, and the appropriate compounding agent, are put in a barrel.

The media mass and its components fall onto itself due to the barrel’s rotation, creating friction and wearing down the mass’s components. This results in a cutting action that quickly and effectively deburrs the item’s surface.

Deburring barrels are typically batch-type processing devices, but there is also equipment for single-pass and in-line batch processing.

Advantages of Barrel Tumbling

For makers of parts who require reliable results without the lengthy setup times associated with automated gear, barrel tumbling is suitable. The following are a few advantages of tumble finishing:

Versatility:

For makers of parts who require reliable results without the lengthy setup times associated with automated gear, barrel tumbling is suitable. The following are a few advantages of tumble finishing:

Cheaper Equipment:

Barrel tumbling equipment often costs far less than more complex finishing machinery since it has straightforward designs and simple operations.

Consistency:

While tumble finishing is less reliable than techniques like vibratory finishing, it nevertheless produces more reliable and consistent results than the practice of hand-finishing a component.

Toughness:

Processes for barrel tumbling are considerably more aggressive than other delicate finishing techniques, which makes them perfect for hard applications and components requiring additional work.

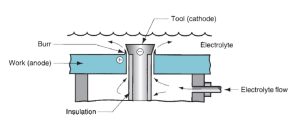

Electrolytic deburring

Burrs can be removed and dissolved using electrical energy. The component that needs to be deburred is submerged in an electrolyte solution while connected to a DC power source’s positive pole (anode).

This creates an electrode in the electrolyte solution. Another electrode is inserted into the solution and linked to the DC power supply’s negative pole (cathode), keeping a space between the two poles to permit the electrolyte to flow.

An electrochemical reaction occurs on the anode’s surface when both the anode and cathode give a direct current. The electrolyte and the dissolved metal on the part’s surface combine to create a viscous liquid concentrated in the low ridges on the part’s surface and have high resistance.

The part of the burr that sticks out from the part’s surface the farthest will dissolve the fastest and keep dissolving until all of the burrs have been removed. As the part is deburred, the edges will progressively become rounded corners.

Both non-ferrous and ferrous metal parts can be processed using this technique, particularly those with intricate forms, cross holes, and internal burrs that are challenging to remove using mechanical or manual methods.

Chemical Deburring

Like electrolytic deburring, this procedure dissolves burrs on the surface of the component to be deburred through a chemical reaction rather than through electricity.

Ions collect on the workpiece’s surface and create a coating with high resistance and low conductivity that prevents corrosion on the workpiece’s surface.

The type of chemical solution used depends on the material of the workpiece being deburred.

Chemicals often used for deburring include sulfuric acid, Hydrochloric acid, phosphoric acid and water. Small metal parts can benefit from chemical deburring, which can get rid of tiny burrs that are less than 0.07 mm thick.

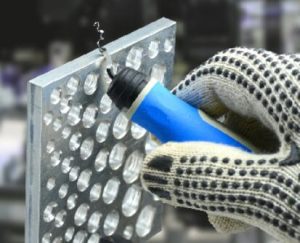

Deburring By Hand

The hand or manual deburring method is an option if you need to remove burrs from a small portion. It is slower yet less expensive. To accomplish manual deburring, you don’t require a large machine.

All you need to do is purchase a few basic tools, such as deburring knives, sandpaper, files, and polishing equipment. To prevent further harm to your parts, this must be done skillfully. The conventional method of deburring might be demanding.

Adopting the manual deburring method may not be possible or may be more difficult if you need to deburr huge pieces. In this method, skilled specialists use straightforward instruments to manually scrape or buff the burrs out of the metal components.

Despite being simple, this process takes a lot of time and can significantly lower production.

Grinding

Grinding is one mechanical method of removing burrs that produces a high quality finish on the material. It’s similar to deburring by hand but you use a machine in this technique which makes it faster and easier.

The workpiece that needs to be deburred can be rotated inside an abrasive-filled drum. The burrs are removed by abrasion that takes place between the abrasive and the workpiece while the drum rotates.

Specialized centrifugal deburring equipment uses centrifugal force to increase the adhesive’s impact on the workpiece, speeding up the polishing and deburring process.

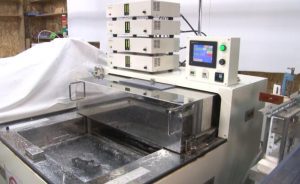

Ultrasonic Deburrring

Ultrasonic deburring is the first technology that uses the cavitation effect of ultrasound to eliminate burrs from metal materials in a controlled and cost-effective manner.

Deburring is also carried out in a liquid, just as ultrasonic cleaning. The procedure involves a brief period of intense cavitation on the workpieces.

The localized high-density cavitation bubbles that implode produce such strong forces that the burrs are effectively but delicately removed.

The amplitude, power output, and frequency of the ultrasound, along with the treatment time and distance from the workpiece, are the main determinants of the deburring effect.

The full range of deburring, from micro to rough deburring, can be achieved by setting application-specific parameters. An key benefit here is that the deburred surfaces are also polished at the same time.

The new method can be utilized for both frictionless internal deburring and external component surfaces, like stamped, cast aluminum, and die-cast zinc parts.

The design of the deburring tool – the sonotrode – matches the system to the corresponding component geometry. It can be steered manually, mechanically, or completely automatically.

Experiments with different aluminum pieces used after CNC processes proved the outstanding deburring effect. They also demonstrated that the procedure is far more energy and cost-effective than high-pressure water jet deburring.

Conclusion

Deburring after CNC machining processes has a wide range of uses. Deburring helps with very thin workpieces, such as the tiny edges of small workpieces cut from sheet metal, in addition to machined workpieces.

Ground grinding of pipes, connectors, and shafts is also done with deburring. Various deburring processes can be used to eliminate burrs which occur in the inner hole during punching or laser processing.
