Everything You Need to Know About Diamond Machining

Diamond machining is the ultimate tool in the precision engineer’s arsenal, enabling the creation of components with unparalleled accuracy and surface finish. This process leverages the most complex material known to man, diamond, to achieve cutting and shaping capabilities that other methods can’t match. Whether in aerospace, electronics, or optics, diamond machining opens up a world of possibilities for manufacturing high-precision parts.

However, diving into diamond machining without a guide can leave you feeling lost in a sea of technical jargon and complex concepts. Stay with me as I demystify diamond machining and chart a course through its most critical aspects, from understanding the basics to mastering its applications.

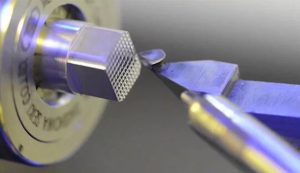

What is Diamond Machining

Diamond machining is a sophisticated manufacturing process that utilizes diamond – the hardest naturally occurring material on Earth – as a cutting tool. This technique stands at the forefront of precision engineering, offering unparalleled accuracy and surface finish for various materials, including metals, polymers, and composites.

At its core, diamond machining is about leveraging the exceptional properties of diamond, such as its extreme hardness and thermal conductivity, to perform ultra-precise cutting, shaping, and finishing operations. These properties make diamond tools uniquely capable of achieving high-quality finishes with minimal tool wear, even when processing hard or abrasive materials that would quickly degrade other cutting tools.

Types of Diamond Machining Processes

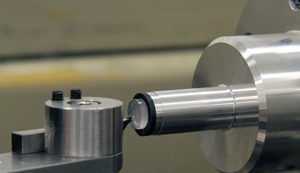

Diamond Turning

Diamond turning is a process that involves the use of a single-point diamond cutting tool to precisely machine parts on a lathe. This technique is beneficial for producing components with complex geometries and ultra-smooth surfaces, such as optical lenses and mirrors. The critical advantage of diamond turning is its ability to achieve sub-nanometer surface finishes on various materials, including metals, plastics, and crystals.

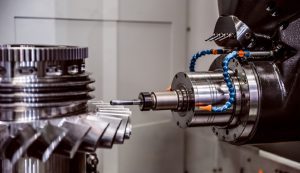

Diamond Milling

Diamond milling utilizes a diamond-coated rotary cutter to remove material from the workpiece. This process is ideal for creating complex 3D shapes and delicate features on hard and abrasive materials. Unlike diamond turning, diamond milling can machine non-rotational parts, making it versatile for micro-electro-mechanical systems (MEMS), mold-making, and precision engineering.

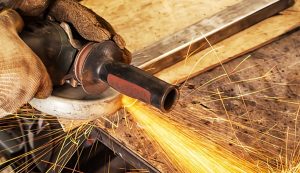

Diamond Grinding

Diamond grinding uses diamond-embedded wheels to remove material and achieve a high-quality surface finish. This process is particularly effective for hard materials that are difficult to machine with other methods, such as ceramics, glass, and carbide. Diamond grinding is commonly used to produce precision tools, optical components, and semiconductor devices.


Diamond Scribing

Diamond scribing is a process where a diamond tip is used to inscribe or cut thin lines into materials, typically to break or separate them along the scribed lines. This technique is often used in electronics to separate silicon wafers or create precise substrate patterns.

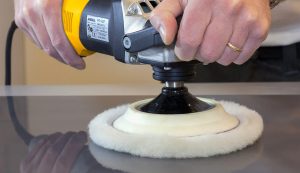

Diamond Lapping and Polishing

Diamond lapping and polishing are finishing processes that use diamond abrasive particles to remove material from the surface of a part. These methods achieve incredibly smooth and flat surfaces, often required for optical components, seals, and bearing surfaces. The critical difference between lapping and polishing lies in the diamond particles’ size and the resulting surface finish.

Advantages of Diamond Machining

Unmatched Precision and Surface Quality

The extreme hardness of diamonds allows for machining materials with a level of precision and surface finish that is unattainable with other cutting tools. Diamond machining can produce parts with surface roughness in the nanometer range, making it ideal for applications where surface quality is critical, such as optical components and precision molds.

Extended Tool Life

Diamond’s exceptional wear resistance translates into longer tool life than conventional cutting tools. This durability reduces tool replacement costs and ensures consistent quality over longer production runs, making diamond machining a cost-effective solution for high-volume manufacturing.

Versatility Across Materials

Diamond tools can machine various materials, from soft polymers to stiff metals and ceramics, without compromising precision or surface finish. This versatility makes diamond machining an invaluable process in industries such as aerospace, electronics, and medical devices, where diverse materials are used.

Reduced Thermal Damage

The superior thermal conductivity of the diamond efficiently dissipates heat away from the cutting zone, minimizing thermal damage to the workpiece. This is particularly important in machining thermally sensitive materials, ensuring that the mechanical properties and integrity of the material are preserved.

Improved Productivity

Diamond machining processes, such as diamond turning and milling, often achieve the desired finish and dimensional accuracy in a single pass, eliminating the need for multiple machining steps and post-processing treatments. This speeds up production times and reduces the overall manufacturing cost.

Considerations in Diamond Machining

Material Compatibility

Not all materials are suited for diamond machining. While the diamond is the most complex material and can cut through most substrates, issues such as chemical compatibility and the potential for tool wear or damage from certain materials (like ferrous metals, which can lead to carbon solubility issues) must be considered. Understanding the material properties and their interaction with diamond tools is crucial for selecting the proper machining process.

Surface Finish Requirements

Diamond machining is renowned for achieving superior surface finishes, but the specific requirements of your application will dictate the choice of the diamond machining process. Factors such as the roughness average (Ra) and the need for sub-nanometer accuracy can influence whether diamond turning, milling, or another method is most appropriate.

Geometrical Tolerances

The precision of diamond machining makes achieving very tight geometrical tolerances possible. However, the level of precision required for your project can significantly impact both the cost and the complexity of the machining process. It’s essential to balance the desired tolerances with practical considerations of cost and manufacturability.

Tool Selection and Maintenance

The choice of diamond tooling (such as the type of diamond, the cutting geometry, and the tool holder) plays a significant role in the success of the machining process. Additionally, proper maintenance of these tools is critical to avoid degradation in performance over time, which can affect both the surface quality and dimensional accuracy of machined parts.

Machine Stability and Environment

Diamond machining demands exceptionally stable and vibration-free machine environments to achieve the highest levels of precision. Factors such as temperature control, vibration isolation, and machine rigidity must be meticulously managed to prevent disturbances affecting machining accuracy.

Cost Considerations

While diamond machining provides unparalleled precision and quality, it can also be more costly than other machining methods due to the specialized equipment, tooling, and expertise required. It’s important to carefully evaluate the cost-benefit ratio for your specific application to ensure that diamond machining is the most cost-effective and efficient choice.

Operator Expertise

Finally, the skill and experience of the operator can significantly influence the outcome of the diamond machining process. Skilled operators with a deep understanding of the nuances of diamond machining can optimize the process for efficiency, accuracy, and surface quality.


Diamond machining is a beacon of precision in manufacturing, offering unmatched accuracy and surface finishes. Whether you’re in aerospace, optics, or electronics, leveraging this technology can elevate your products to new heights. If you’re ready to explore the possibilities diamond machining can unlock for your projects, let’s start a conversation and bring your precision needs to life.
