What is Computer Numerical Control (CNC) Technology?

CNC machining

In the dynamic landscape of the manufacturing sector, innovation and efficiency are the cornerstones of success. One technology that stands at the forefront of this revolution is Computer Numerical Control (CNC). CNC technology, with its capability to automate machine tools with high precision, has transformed traditional production methods.

Companies like Worthy Hardware, have mastered this technology to provide high-quality manufacturing and exporting services. Specializing in CNC machining parts, CNC milling parts, CNC turning parts, we demonstrate the versatile applications of CNC technology in creating top-notch products that cater to the unique needs of various industries.

In this article, we will delve into the intriguing world of CNC technology, starting from its fundamentals to its wide-ranging applications, benefits, career prospects, and the future it promises.

CNC machining

Understanding CNC Technology

Computer Numerical Control (CNC) is a technological system that uses computers and software to automate and control machine tools. This process eliminates the need for manual operation, resulting in enhanced accuracy, efficiency, and productivity in manufacturing.


History of CNC Technology

The historical roots of CNC technology can be traced back to the early 1940s when John T. Parsons, an American engineer and inventor, introduced the concept of numerical control for machine tools. His innovative method used punch-card mechanisms to direct the movement of machinery, which was a significant departure from conventional manual control. Over the years, with advancements in digital technology, the rudimentary punch-card system evolved into the sophisticated CNC we know today, offering precise control over complex machining tasks.

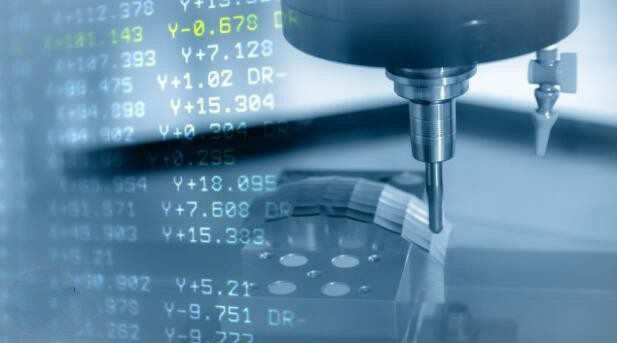

The process from CAD to CAM to G-code

CNC machining

The operational foundation of CNC technology lies in a process that encompasses Computer-Aided Design (CAD) software, Computer-Aided Manufacturing (CAM) models, and G-code. In the first step, a product’s design is developed using CAD software. This design is then translated into a CAM model, providing detailed machining instructions. Finally, these instructions are converted into G-code, a specialized programming language that the CNC controller interprets to maneuver the machine tool.

The array of manufacturing processes that have been revolutionized by CNC technology is extensive, including milling, turning, grinding, laser cutting, and more. Worthy Hardware continues to be at the forefront of these advancements, delivering superior quality and precision with each component they create.

Working Mechanism of CNC

In the world of CNC technology, the workhorse is the CNC machine. But what controls the machine is the CNC controller, a computer-based device that reads G-code instructions and commands the machine to execute them. It acts as the brain of the CNC machine, interpreting the code and translating it into physical actions.

The controller interacts with the I/O devices (input and output devices) to direct the Drive mechanism, responsible for moving the machine tool. The Drive mechanism usually includes a motor, amplifier, and a feedback device to ensure the desired movement has occurred.

Now, let’s talk about the Cartesian coordinate system. A CNC machine moves in a 3D space defined by this system, using the X-axis (left-right), Y-axis (forward-backward), and Z-axis (up-down) for navigation. This movement across the three axes allows the machine to create the intricate designs dictated by the G-code.

Some machines also have rotational axes, known as the A-axis (rotation around the X-axis), B-axis (rotation around the Y-axis), and C-axis (rotation around the Z-axis). With the additional rotational axes, the machine can handle more complex tasks, making it versatile in handling intricate designs and parts.
Two key types of motion are utilized in the process: rapid motion, for quickly moving the tool to a particular point, and point interpolation, for performing the actual cutting or shaping work.

An example of CNC technology in action is the process of CNC milling, where a workpiece is shaped by removing material from it. The milling tool, controlled by the CNC system, moves across the X, Y, and Z axes to cut the workpiece to the desired shape and size.

Different CNC Techniques

Computer Numerical Control (CNC) has revolutionized numerous manufacturing techniques, each serving unique purposes and suitable for different materials and products.

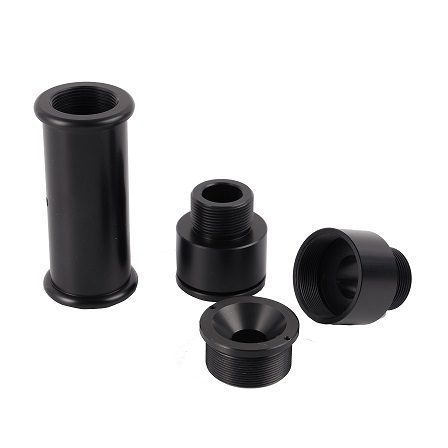

1. CNC Milling: One of the most common CNC processes, milling involves removing material from a workpiece. The cutting tool rotates and moves across three or more axes, depending on the machine’s design, to cut the workpiece into the desired shape. It’s versatile and suitable for a variety of materials, including aluminum, brass, stainless steel, and even woods.

CNC machining

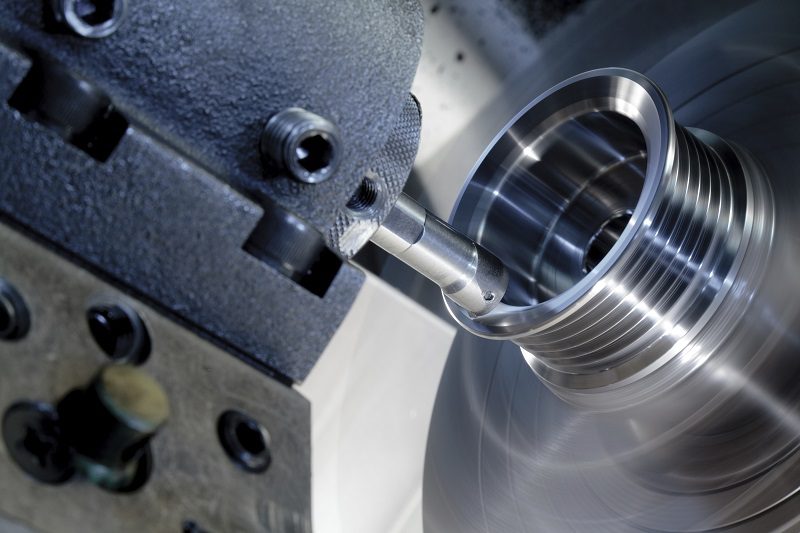

2. CNC Turning: This process, typically performed on a lathe, involves rotating a workpiece against a cutting tool that moves along 2 axes of motion to produce cylindrical cuts with precise measurements. It’s used for producing symmetrical parts along a central axis, like shafts or tubes. Companies like Worthy Hardware have specialized CNC turning capabilities to produce highly precise parts.

CNC machining

3. CNC Grinding: This CNC process involves the use of an abrasive wheel to refine the surface of a workpiece. CNC grinders are used to produce a smooth finish on both flat and cylindrical surfaces. They’re also used for complex shaping tasks, such as grinding contours and profiles.


4. CNC EDM (Electrical Discharge Machining): This unique CNC technique involves the use of electrical discharges (or sparks) to remove material from a workpiece. It’s primarily used to work with hard metals or those that would be difficult to machine with traditional techniques.


5. CNC Laser Cutting: Laser cutting utilizes a high-powered laser to cut desired shapes and patterns into a workpiece. This CNC technique is known for its accuracy and the clean cuts it produces. It’s widely used in industries that require precision, such as electronics and aerospace.


6. CNC Waterjet Cutting: Like laser cutting, waterjet cutting is a non-traditional CNC technique. It uses a high-pressure stream of water, sometimes mixed with abrasive substances, to cut through the material. It’s particularly useful for materials that could be damaged by heat-based cutting methods.


7. CNC Routing: This CNC technique is used to hollow out or cut out areas in larger pieces of material. It’s often used for woodworking, though routers can also be used on some metals and plastics.

Industries That Benefit from CNC Systems

CNC machining

The Computer Numerical Control (CNC) technology is not restricted to a single industry but finds widespread application across various sectors, transforming the way they manufacture and prototype their products. Here are some of the industries where CNC is instrumental:


1. Aerospace: The need for precision and adherence to stringent guidelines makes CNC an ideal fit for the aerospace industry. Components need to be made to exact specifications, and CNC machines can ensure this precision, from large parts like wing spars to smaller components like brackets.


2. Electronics: As electronic devices become smaller and more complex, the demand for precision machining increases. CNC technology allows for the production of tiny, complex components required in devices like smartphones, computers, and other electronic devices.


3. Medical: CNC machining has revolutionized the medical industry by enabling the production of a wide range of medical devices like orthotic devices, surgical implants, and MRI machines. Materials such as titanium and plastics commonly used in the medical sector are well-suited to CNC machining.


4. Agriculture: Farming equipment and machinery have become more sophisticated, necessitating the use of high-precision components. These are often made using CNC machining, given its ability to handle both large and small production runs.


5. Automation: With the rise of Industry 4.0, there is an increased demand for precision-made parts for automated machinery and robots. CNC machining is capable of producing these parts to a high degree of accuracy, ensuring the smooth operation of these machines.


6. Lighting: Even industries like lighting, where aesthetic plays a key role, utilize CNC machining for the production of intricate designs in light fixtures and fittings.


CNC machining’s versatility, precision, and scalability make it a beneficial tool for these industries, transforming their manufacturing processes, and enabling mass production of high-quality parts.

The Benefits and Limitations of CNC Technology

As with any technology, Computer Numerical Control (CNC) presents both benefits and challenges. Understanding these can help businesses make informed decisions about adopting and investing in this technology.


Benefits of CNC Technology

1. Speed: CNC machines work much faster than human-operated machines, boosting productivity.

2. Precision: CNC machines can produce incredibly precise parts, with tolerances in the thousandths of an inch. This level of precision is vital for industries where accuracy is critical, such as aerospace or medical devices.

3. Scalability: Once a design has been programmed into a CNC machine, it can produce one, hundreds, or thousands of parts, all identical to each other. This ability to scale production makes CNC technology highly valuable for businesses.

4. Versatility: With a variety of CNC techniques available, such as milling, turning, laser cutting, etc., different materials and complex designs can be handled with ease.

5. Error compensation: CNC machines are capable of compensating for any errors during the manufacturing process, ensuring the consistency and quality of the parts produced.


Limitations of CNC Technology

1. Cost: CNC machines can be expensive to purchase and maintain, posing a significant investment for small businesses.

2. Automation and unemployment: While CNC machines increase efficiency, they can also replace manual jobs, leading to unemployment concerns.

3. Training requirements: Operating a CNC machine requires specialized knowledge and training, which can add to the cost and time investment.

Advancements in CNC Technology

The field of Computer Numerical Control (CNC) technology is not static; it’s continuously evolving, driven by advancements in computing power, software, and materials science. Here’s a glance into the future of CNC technology:


1. Integration of AI and IoT: The fusion of Artificial Intelligence (AI) and Internet of Things (IoT) with CNC machines could lead to more intelligent and connected manufacturing processes. Machines could predict and correct errors, automate tasks, and share data, improving efficiency and product quality.

2. Data collection and analysis: With modern CNC machines being digital, there’s a wealth of data being generated that can be used to optimize processes, predict maintenance needs, and improve overall productivity.

3. On-Demand Manufacturing: CNC technology is enabling more on-demand manufacturing, with faster design changes and shorter production times. This shift caters to the growing consumer demand for customization and fast delivery times.

4. Hybrid Manufacturing: The combination of additive (3D printing) and subtractive (CNC machining) manufacturing technologies in a single machine is becoming a reality. These hybrid machines could offer the best of both worlds—rapid prototyping and high-quality finishing.


While these advancements offer exciting possibilities, they also pose new challenges, particularly in terms of cost, training, and infrastructure.

CNC Technology and Career Opportunities

Amid the automation and AI integration in the manufacturing sector, it’s important to understand how this affects the job market, especially the roles related to Computer Numerical Control (CNC) technology. Here are some common questions related to career paths in this field.

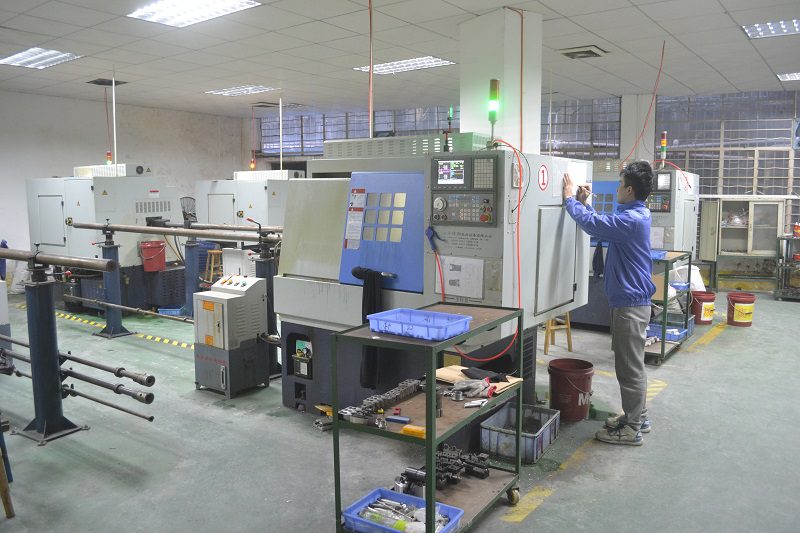

What is a CNC Machinist?

CNC machining

A CNC machinist is a trained professional who operates and manages CNC machines. Their tasks include interpreting blueprints, setting up and operating the machine, performing regular maintenance, and ensuring the quality of the products. Despite the automation, human skills are crucial in this role for oversight, problem-solving, and quality control.


Is Computer Numerical Control Hard?

CNC operation and programming require a specific set of skills and training. Understanding of math, mechanics, and computer programming is crucial. However, with proper training, hands-on experience, and a problem-solving mindset, mastering CNC technology is achievable.


What Degree Do You Need to Be a CNC Programmer?

A CNC programmer typically needs a two-year associate degree in CNC programming, manufacturing technology, or a related field. They must have a strong understanding of computer programming, as well as CAD and CAM software.


What is CNC Programming?

CNC programming involves writing the instructions that control the operation of the CNC machine. These instructions, known as G-code and M-code, tell the machine how and where to move, how fast to work, and what path to follow.


Is CNC Machining a Good Career?

CNC machining can offer a rewarding career path. As industries continue to rely on precision parts, the demand for skilled CNC machinists and programmers remains high. Plus, advancements in CNC technology provide opportunities for continuous learning and growth.


Is CNC Machining a Dying Trade?

Contrary to the perception that automation is taking over, skilled trade jobs like CNC machining are in demand. While the machines can automate tasks, human oversight, problem-solving skills, and creativity are still needed. So, as long as there is manufacturing, there will be a need for skilled CNC professionals.


In conclusion, CNC technology, with its array of techniques and vast industry applications, is a vital cog in the global manufacturing machinery. Despite its challenges, its benefits in terms of precision, speed, and scalability make it an invaluable tool for businesses seeking to stay competitive in an ever-evolving market. To learn more about CNC and how it can benefit your business, feel free to contact us.
