As the CEO of Worthy Hardware, a leader in CNC machining services, I’ve seen firsthand the complexities and nuances of machining different materials. Among these, Titanium is a particularly challenging yet rewarding metal. Its unique properties offer unmatched benefits for various industries but also present distinct challenges in CNC machining.
Titanium, known for its strength, lightweight, and corrosion resistance, is a go-to material in aerospace, automotive, and medical industries. To effectively machine this versatile metal, it’s crucial to understand its characteristics and adapt your machining strategy accordingly. Here, I’ll share insights and tips from my extensive experience in CNC machining titanium, helping you enhance efficiency and quality in your production processes.
In the following sections, we’ll delve deep into titanium machining. From tool selection to cooling strategies, I’ll guide you through the essentials to ensure you’re well-equipped to handle this exceptional material with the precision and care it demands. Stay tuned for expert advice that can transform your approach to CNC machining titanium.

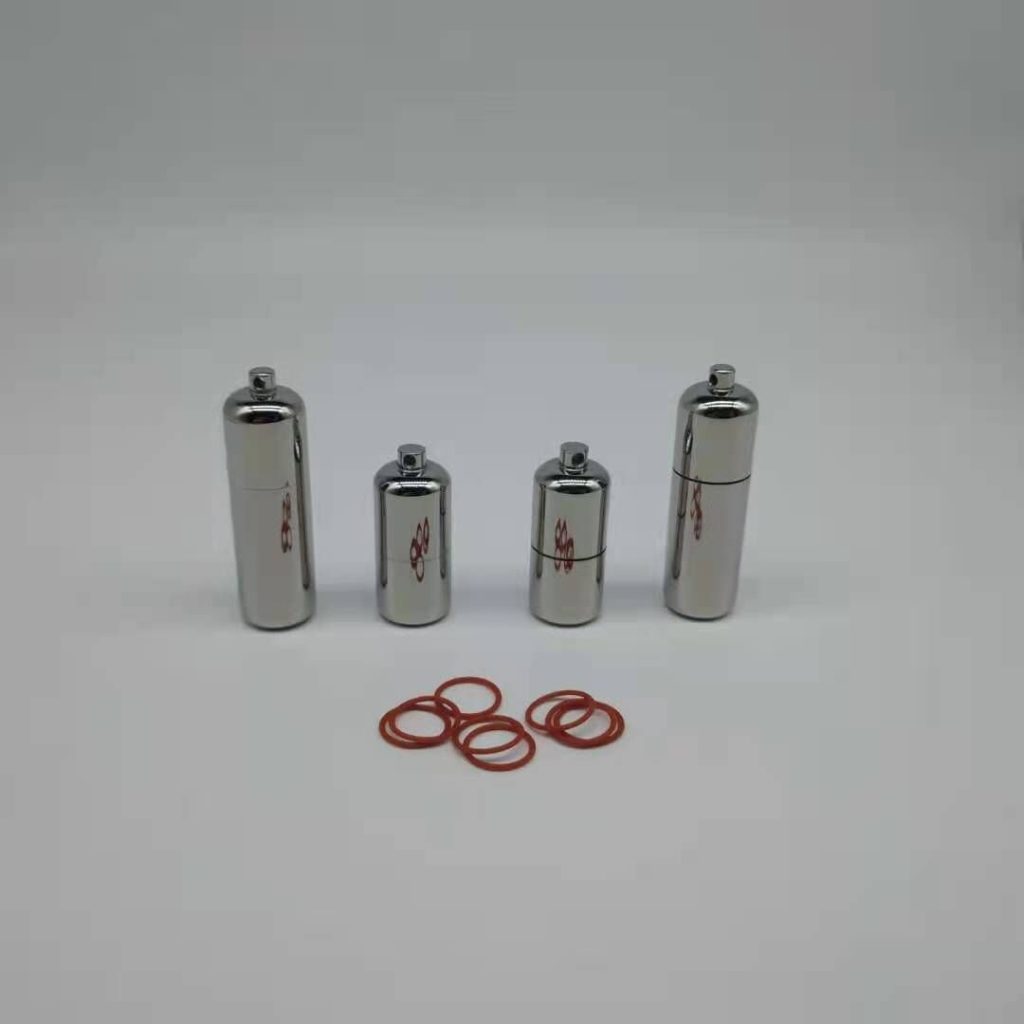

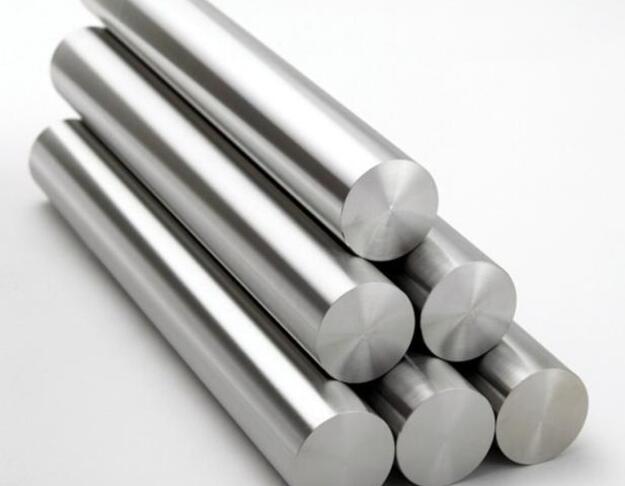

What is Titanium and Why We Need It?
It’s a chemical element, Ti, known for its high strength-to-weight ratio, corrosion resistance, and ability to withstand extreme temperatures. These attributes make it an ideal material for demanding applications.

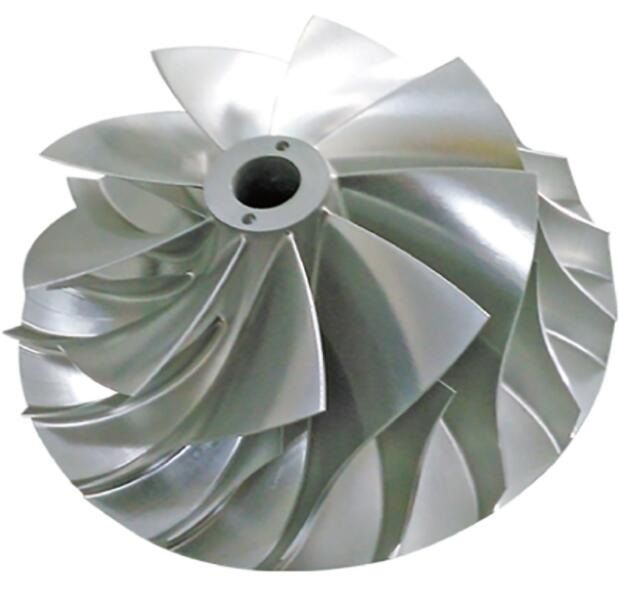

Now, why do we need Titanium? The answer lies in its remarkable properties. For example, Titanium’s lightweight yet robust nature in the aerospace industry contributes significantly to fuel efficiency and aircraft performance. It’s also biocompatible, making it a preferred choice for medical implants. In the automotive sector, its durability and corrosion resistance extend the components’ lifespan.
Beyond these industries, Titanium’s unique characteristics lend themselves to various uses, from sports equipment to architecture. Its versatility is unmatched, and as technology advances, we’re discovering even more applications where Titanium’s properties can be leveraged.

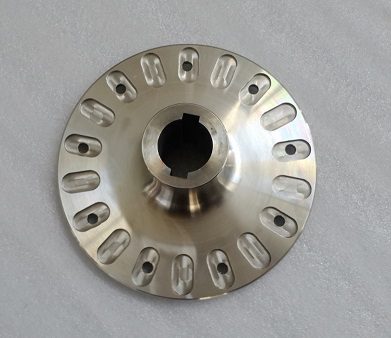

Why CNC Machining for Titanium?
When considering the production of titanium parts, a few methods come to mind: traditional machining, casting, and forging. However, they need to match the precision and versatility of CNC machining, especially for Titanium.
Traditional machining methods often need to catch up when dealing with Titanium’s toughness and work-hardening tendencies. Tools wear out faster, and the risk of errors increases, leading to more waste and higher costs. Casting and forging, while proper for bulk production, offer a different level of detail and are limited in the complexity of shapes they can produce.
CNC machining, on the other hand, stands out for several reasons:
- Precision and Complexity: CNC machining can achieve extremely tight tolerances and intricate designs, which is crucial for high-performance applications of Titanium in aerospace and medical industries.
- Flexibility: CNC machining isn’t constrained by mold or die design, unlike casting or forging. This allows for easy customization and adaptability to changing design requirements.
- Material Conservation: Titanium is expensive. CNC machining is a subtractive process that can be precisely controlled, reducing material waste compared to other methods.
- Quality and Consistency: With CNC machining, each part is consistently reproduced to exact specifications, which is vital for applications requiring high levels of reliability and consistency.
- Speed and Efficiency: For small to medium-sized production runs, CNC machining can be faster and more cost-effective than setting up molds for casting or dies for forging.

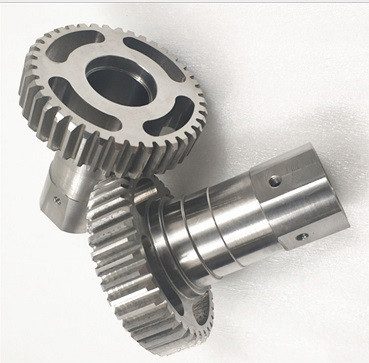

How to Optimize Tool Selection for CNC Machining of Titanium?
Tool selection is paramount in CNC machining, mainly when working with a challenging material like Titanium. Over the years, I’ve learned that the right tool can significantly improve efficiency, quality, and overall machining success. Here are some key factors to consider when selecting tools for machining titanium:
- Material of the Tool: Carbide tools are often the best choice for Titanium. They maintain their hardness even at high temperatures, which is crucial given the heat generated when machining titanium.
- Tool Geometry: Opt for tools with a larger core diameter and a more acute cutting angle. This design enhances tool strength and reduces the likelihood of deflection or breakage.
- Coatings: Use tools with advanced coatings such as titanium aluminum nitride (TiAlN). These coatings can withstand the high temperatures of titanium machining and reduce wear on the tool.
- Chip Formation: Tools designed to produce small, manageable chips are ideal. This helps in heat management and reduces the risk of work-hardening the Titanium, which can happen if the chips are too large.
- Cutting Edge Preparation: A honed or slightly rounded cutting edge can handle the stresses of machining titanium better than a sharp edge, which can chip easily.
- Flute Count and Helix Angle: Fewer flutes with a high helix angle ensure efficient chip evacuation, reducing the risk of re-cutting chips, which can damage both the tool and the workpiece.
- Tool Rigidity: Rigid tools reduce chatter and vibration, which are particularly problematic when machining titanium due to their tendency to work harden.
What Are the Key Speed and Feed Considerations When Machining Titanium?
Are you tackling Titanium in CNC machining? It’s all about balancing act with speed and feed. Go too fast, and you’ll wear out your tools quicker than you can say “titanium.” Need to be faster? Hello, inefficiency and increased costs. So, what’s the sweet spot? Let’s break it down.
Speed: The Tortoise, Not the Hare
With Titanium, slower is often better. This metal can get feisty under high-speed cutting, leading to excessive heat and tool wear. I recommend dialing back the spindle speed. Think of it as a leisurely jog rather than a sprint. This way, you keep the heat down and your tools in fighting shape for longer.
Feed: Steady as She Goes
Now, for the feed rate. It’s tempting to go slow, but here’s the twist: a slightly higher feed can be your friend. It prevents the tool from dwelling too long in one spot, which can cause work hardening – a big no-no with Titanium. The key? A confident, consistent feed rate that keeps things moving smoothly without overloading the tool.
The Balancing Act
It’s like a dance between the speed and feed. Too much of one without the other, and you’re stepping on toes. Find that harmony where your tools cut efficiently without taking a beating, and your titanium parts come out looking top-notch.
Listen to Your Machine
CNC setups are all different. What works for one might be different from another. Pay attention to your machine’s response. It’ll tell you if you need to push harder or more. A bit of trial and error, and you’ll hit that sweet spot where efficiency and quality meet.
Effective Cooling Strategies: Ensuring Longevity in Titanium Machining
First and foremost, consider the type of coolant and its application. Water-based coolants are often a go-to choice. They’re great at absorbing heat and keeping the cutting area cool.
However, it’s not just about splashing on the coolant; it’s about how you apply it. Precision in application ensures that the coolant directly reaches the cutting area, where it’s most needed. This can be a game changer in preventing overheating and extending tool life.
Another aspect to consider is the pressure of the coolant. High-pressure coolant systems can be particularly effective with Titanium. They penetrate the cutting area more effectively, helping to evacuate chips quickly and reduce the temperature more efficiently. Remember, chip evacuation is as essential as cooling in titanium machining because those chips can retain heat and exacerbate the problem.
Also, remember the role of tool design in cooling. Tools with internal coolant channels can bring the coolant directly to the cutting edge, enhancing its effectiveness. This helps in cooling and improves chip removal, hitting two birds with one stone.
Understanding Titanium’s Unique Characteristics: How Does It Affect Machining?
Heat Management: The Achilles’ Heel
One of the first things you’ll notice about Titanium is its poor thermal conductivity. Unlike materials like aluminum, Titanium doesn’t dissipate heat efficiently during machining. The heat stays concentrated at the cutting area, posing a risk to both the tool and the workpiece. This calls for careful heat management strategies, like the effective cooling systems I mentioned earlier.
The Work-Hardening Conundrum
Work-hardening in Titanium can catch you off guard. If your cutting tool dwells or moves too slowly, the material hardens from the heat generated by the cutting process. Once it sets, Titanium becomes even more challenging to machine, increasing tool wear and potentially compromising the part. It’s a delicate balance – maintaining a feed rate that’s high enough to prevent work-hardening but not so high that it overwhelms the tool.
The Importance of Rigidity
While a great asset, Titanium’s strength can be a challenge during machining. It places higher loads on the cutting tool and the machine. This requires a rigid setup – strong tool holders, sturdy work holding, and a robust machine. Any flex or vibration can lead to poor surface finishes and reduced tool life.
Chemical Reactivity: A Double-Edged Sword
Titanium’s chemical reactivity, particularly at high temperatures, is another factor to consider. It can react with specific materials in the cutting tools, leading to increased wear and tear. Therefore, choosing the suitable tool material and coatings becomes even more critical.
Choosing the right tool path strategy is vital for managing Titanium’s unique challenges. For instance, a trochoidal milling strategy is often effective. This involves a circular, or looping, tool path, which helps distribute the load and heat evenly, reducing the chances of tool wear and work hardening. It’s like giving the tool a halt rather than pushing it continuously through tough spots.
Another strategy is the use of climb milling. This method, where the cutter engages with the material in a way that cuts from the maximum thickness to the minimum, can be gentler on both the tool and the Titanium. It helps achieve a better surface finish and prolongs tool life, a win-win in the complex world of titanium machining.
Also, remember to incorporate strategic pauses or slow-downs in your tool path at corners and tight spots. This ensures you’re not overstressing the tool or the material, balancing efficiency and precision.
Challenges in Titanium Machining: How to Overcome Them?
Managing Heat Buildup
The biggest challenge is the heat. Titanium retains heat, making it challenging on the cutting tools. The trick here is not just about using coolants but using them smartly. High-pressure coolant systems are your allies, directing the coolant precisely where needed. Also, choosing tools with internal coolant channels can make a significant difference.
Avoiding Tool Wear
Titanium is tough on tools. To minimize wear, you need to pick the right tools – typically those made of carbide or with special coatings that can withstand the heat and pressure. Also, tweaking your machining parameters like speed and feed rate can help reduce undue stress on the tools.
Preventing Work Hardening
Titanium tends to harden while machining if the tool dwells too long. This makes subsequent machining even more difficult. Maintaining an optimal balance in your cutting speed and feed rate is essential to avoid this. It’s like walking a tightrope, but with experience, you’ll find the right balance.
Ensuring Part Accuracy
Due to the factors mentioned above, achieving high accuracy can be challenging. Rigidity in your setup is critical. Ensure your work holding is strong and your machine is stable. This reduces vibrations and helps achieve the precision that titanium parts often require.
Addressing Chemical Reactivity
Titanium can react chemically with certain materials at high temperatures. So, the choice of tool material and coatings becomes crucial. Tools that can resist these chemical reactions will have a longer life and help produce better-quality parts.
Importance of Rigidity in the CNC Setup for Machining Titanium
Why Rigidity Matters
A rigid setup helps in multiple ways. It reduces chatter, affecting the surface finish and leading to uneven tool wear. It also ensures that the cutting forces are efficiently transferred, allowing for more precise machining and better control over the material removal process. This is crucial for maintaining the tight tolerances often required in parts made from Titanium.
Achieving a Rigid Setup
To ensure rigidity, start with your machine. Opt for a CNC machine that’s built for heavy-duty cutting and has a robust construction. The machine’s stability is critical in handling the stresses of machining titanium.
Next, consider your work holding. Use high-quality fixtures and clamps that securely have the workpiece without any movement. Any play or vibration here can be detrimental.
Tool holders also contribute significantly to the rigidity of the setup. Use holders that provide a firm grip on the tool, minimizing any potential for movement or bending under the cutting forces.
Regular maintenance of your equipment is vital. Wear and tear on machine components can lead to a loss of rigidity over time. Regular checks and maintenance ensure that all parts of your setup remain in top condition, ready to handle the demands of machining titanium.
Post-Machining Processes: Ensuring Quality and Precision in Titanium Parts
Cleaning and Inspection
The first step is thorough cleaning. Titanium parts often accumulate debris and coolant residue during machining. Proper cleaning ensures that these residues don’t affect the part’s performance, especially in critical applications like aerospace and medical devices.
Inspection is next. This is where you check if the part meets the required specifications. Given Titanium’s use in high-precision fields, this step is non-negotiable. Techniques like CMM (Coordinate Measuring Machine) inspection can be employed for high accuracy.
Stress Relieving and Heat Treatment
Titanium parts can undergo stress during machining. Stress relieving is a process where the piece is subjected to controlled heating and cooling to relieve these stresses. This step is essential to ensure dimensional stability and prevent future deformations.
Heat treatment can also be applied to enhance specific properties of the Titanium, like increasing its strength or improving its corrosion resistance. This step needs to be carefully controlled to avoid negatively affecting the part.
Depending on the application, surface finishing can be a critical post-machining process. This could involve polishing, anodizing, or coating, which can improve corrosion resistance, enhance appearance, and provide other surface characteristics desirable for the part’s intended use.
Common Grades of Titanium: Properties, Applications,
Titanium comes in various grades, each with its unique blend of properties, applications, and limitations. Understanding these distinctions is crucial for selecting the correct grade for specific machining projects.
||High ductility, excellent formability, moderate strength, high corrosion resistance
||Chemical processing, marine applications
||Lower strength compared to alloyed grades
||Good strength, ductility, and corrosion resistance
||Aerospace, medical devices, architecture
||Moderate high-temperature strength
||Higher strength than Grades 1 and 2, good weldability, corrosion resistance
||Airframe and aircraft engine parts, cryogenic vessels
||Less formable than Grade 1 and 2
||Highest strength among pure grades, good corrosion resistance
||Aerospace, surgical hardware, cryogenic applications
||Less formable and weldable than lower grades
|Grade 5 (Ti-6Al-4V)
||Titanium alloyed with 6% Aluminum and 4% Vanadium
||High strength, good heat resistance, excellent corrosion resistance
||Aerospace, military, industrial, automotive
||Not as resistant to reducing acids compared to some other grades
||Titanium with Palladium
||Superior corrosion resistance, especially against reducing acids
||Chemical processing, desalination plants
||Lower strength compared to Grade 5
|Grade 9 (Ti-3Al-2.5V)
||Titanium alloyed with 3% Aluminum and 2.5% Vanadium
||High strength, good weldability, corrosion resistance
||Hydraulic systems, sports equipment
||Higher cost than pure grades
||Titanium alloyed with Molybdenum and Nickel
||Excellent heat and wear resistance, good weldability
||Chemical industry, marine applications
||Less corrosion resistance than Grade 2
Each grade of Titanium presents a balance of strengths and trade-offs. For example, while Grade 4 offers the highest strength of the pure grades, it sacrifices some formability and weldability. Similarly, while Grade 5 (Ti-6Al-4V) is known for its robustness and heat resistance, it is less suitable for environments with reducing acids, unlike Grade 7.
